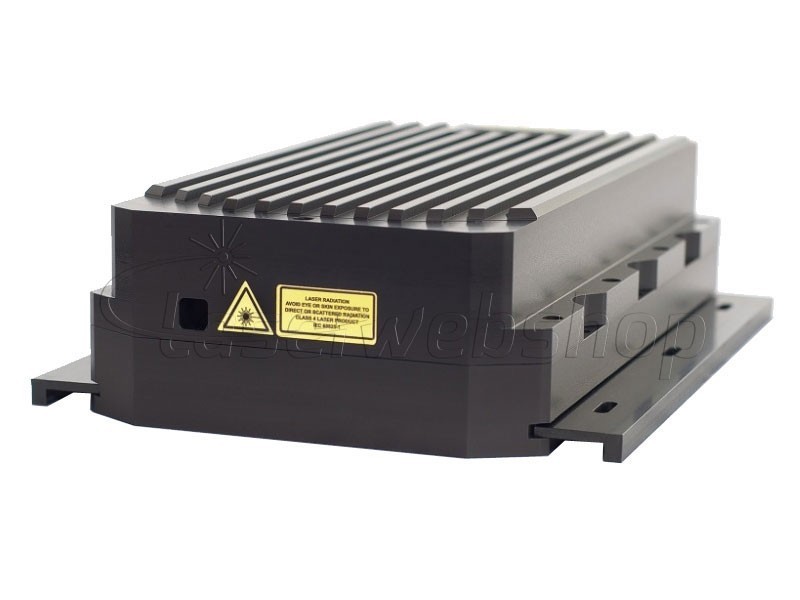

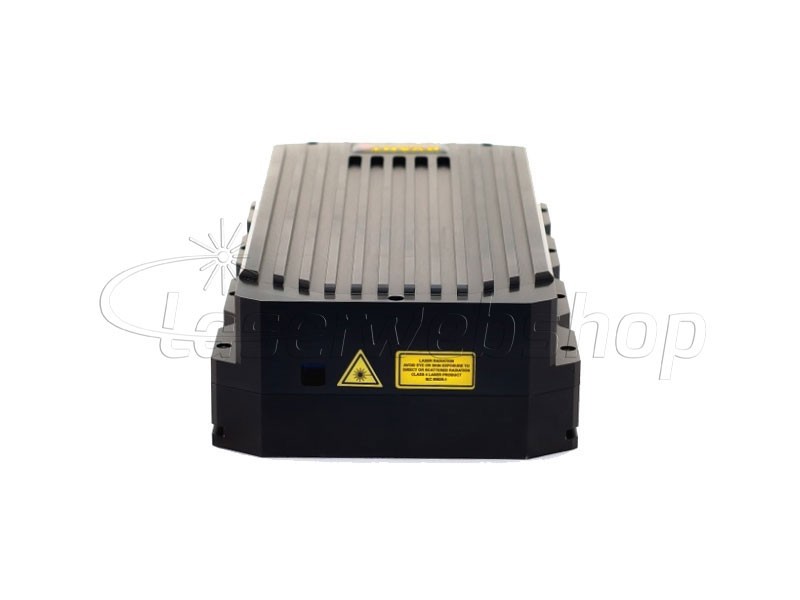

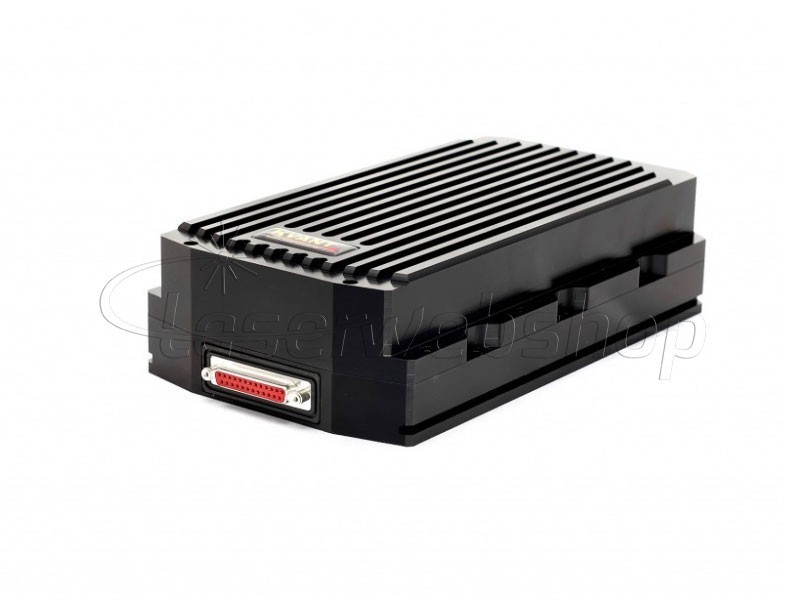

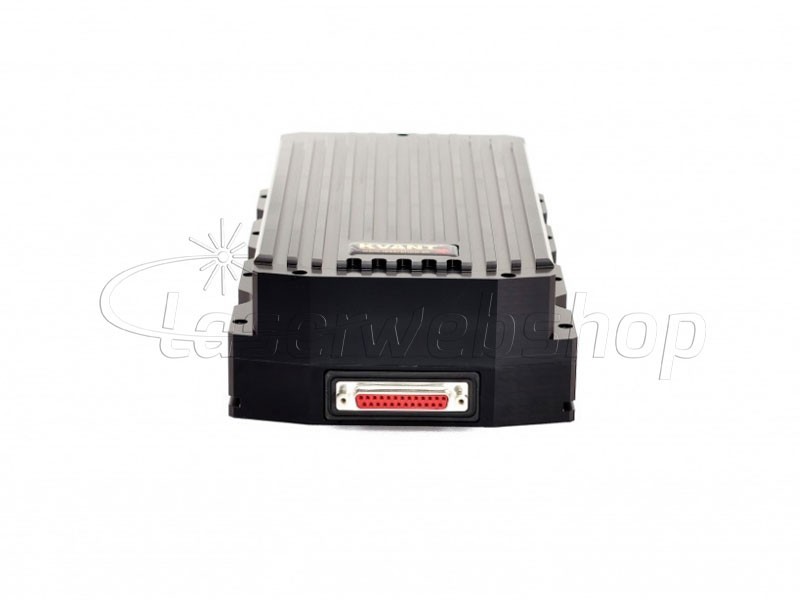

3W Rood Lage Divergentie
Low divergence Red laser module with a wavelength of 637nm and 660nm combined and an output power of 3W.
Specificaties
| Laser Output Power | 3.000mW |
| 637nm Output Power | 1700mW |
| 660nm Output Power | 1300mW |
| Wavelength | 637+660nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 5.0 / 5.0mm |
| Beam Divergence (Half Angle) | 0.2mrad |
| Linear Polarization | No |
| M^2 (H/V) | 3 / 3 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 2.0A (24V) |
| Power Consumption TEC | 6.0A (24V) |
| Input Voltage | 24V |

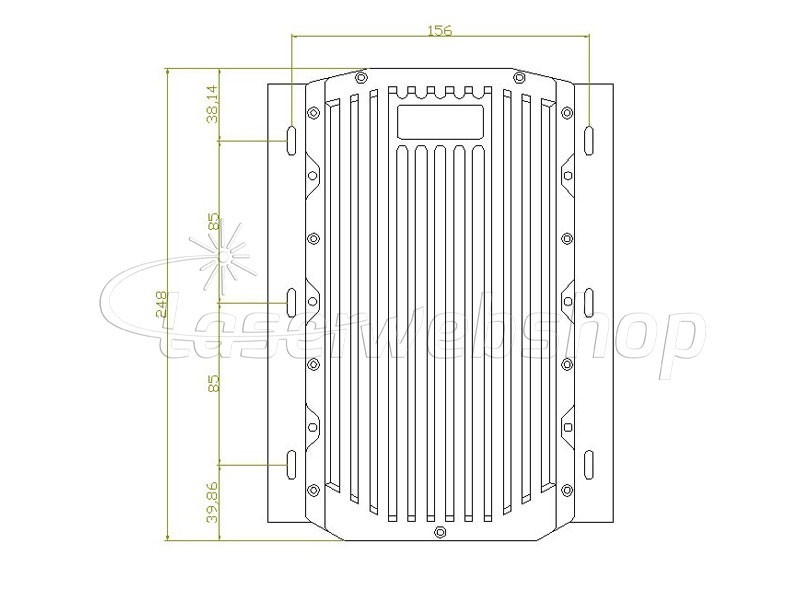

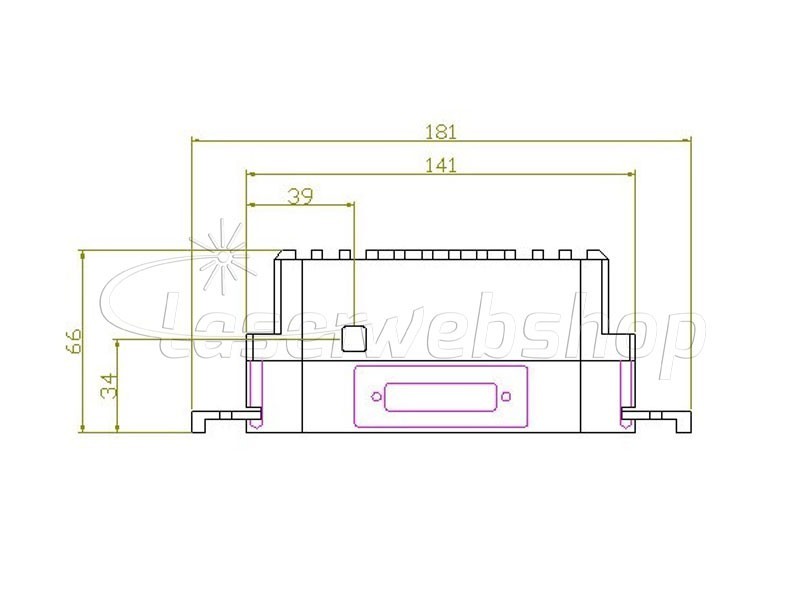

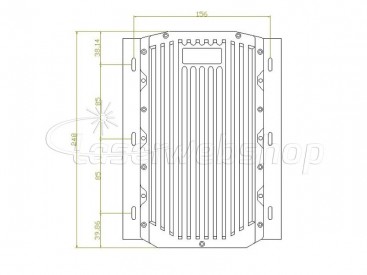

| Module Dimensions (LxWxH) | 248x141x66mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
