Specificaties
| Laser Output Power | 9.000mW |
| Wavelength | 445nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 6.0 / 6.0mm |
| Beam Divergence (Half Angle) | 0.7 / 0.4mrad |
| Linear Polarization | No |
| M^2 (H/V) | 17 / 8 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 3.5A (24V) |
| Power Consumption TEC | 8.0A (24V) |
| Input Voltage | 24V |

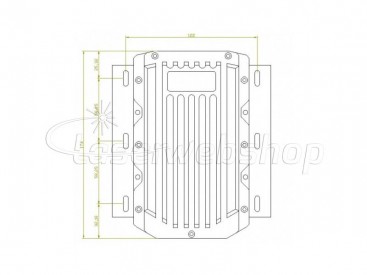

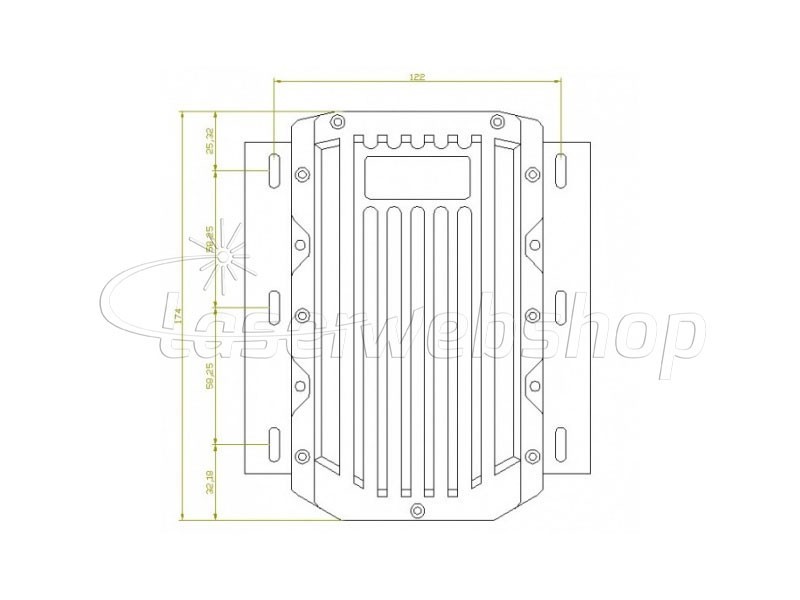

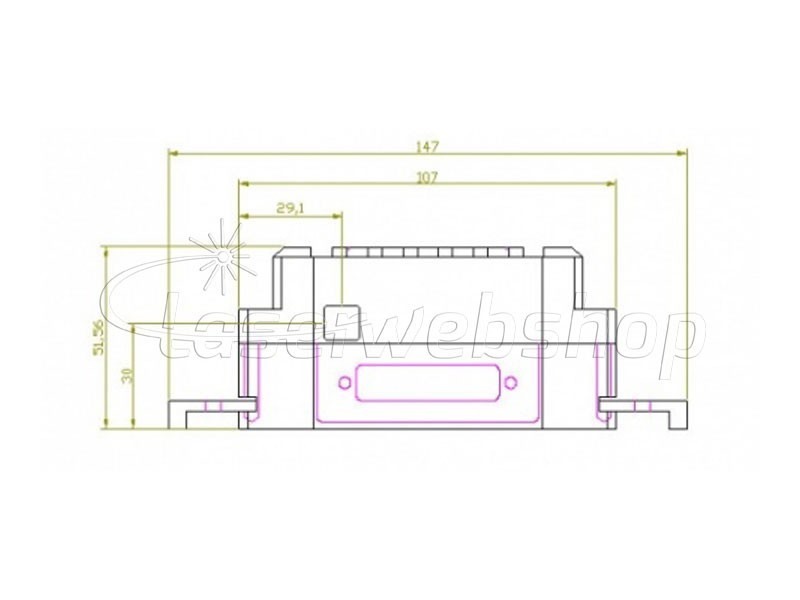

| Module Dimensions (LxWxH) | 174x107x51mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
