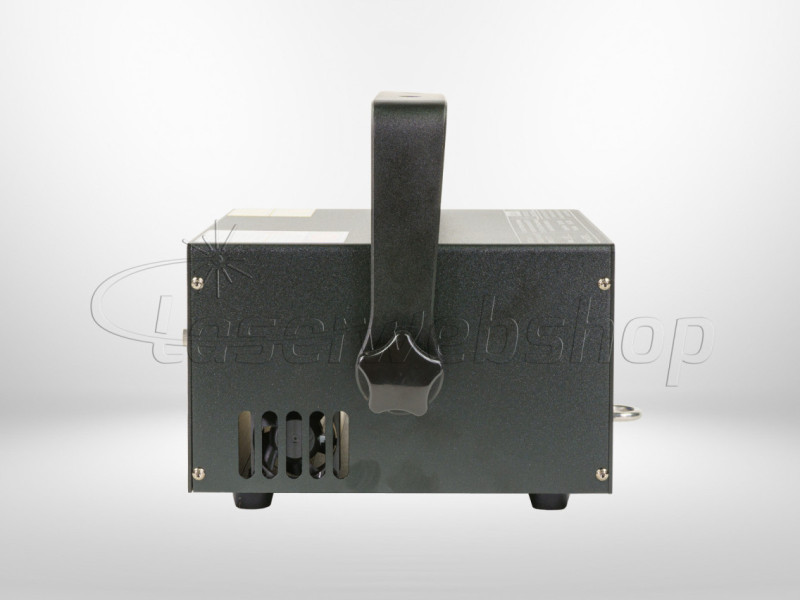

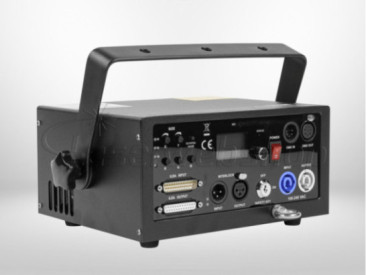

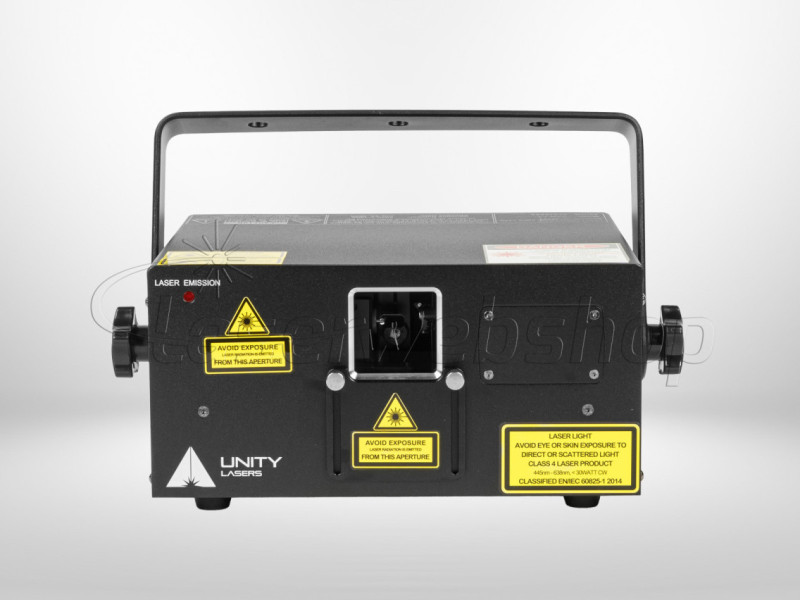

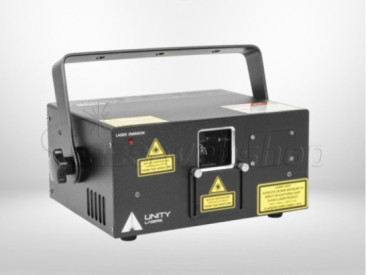

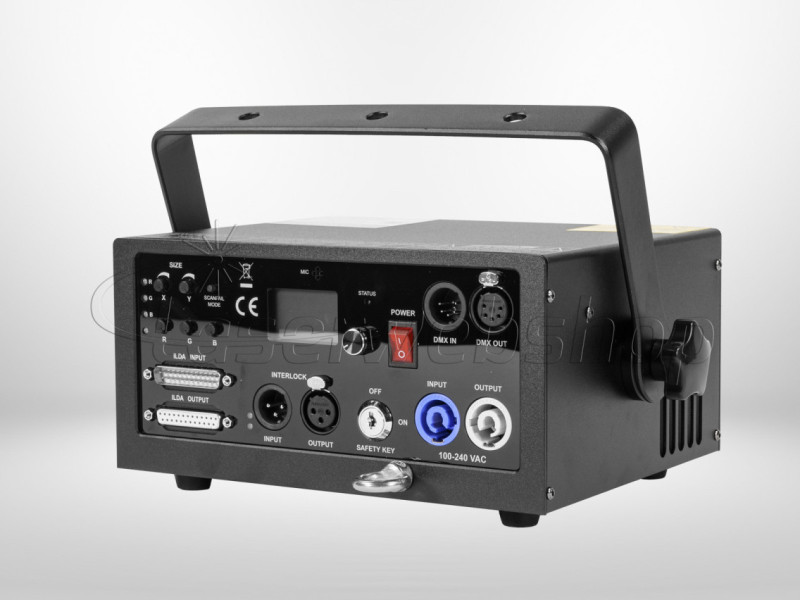

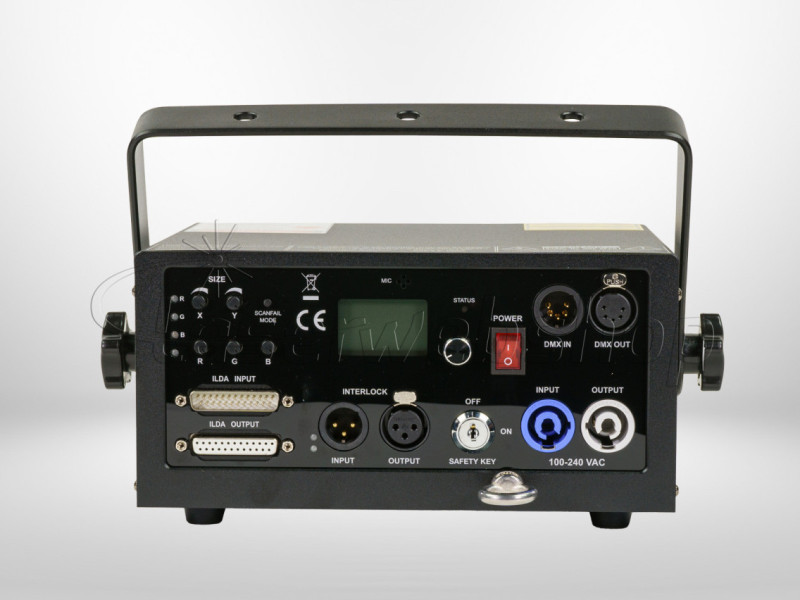

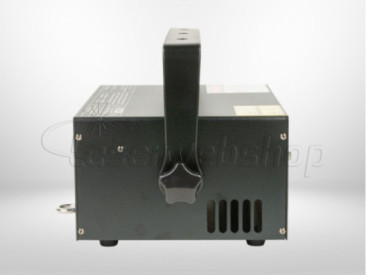

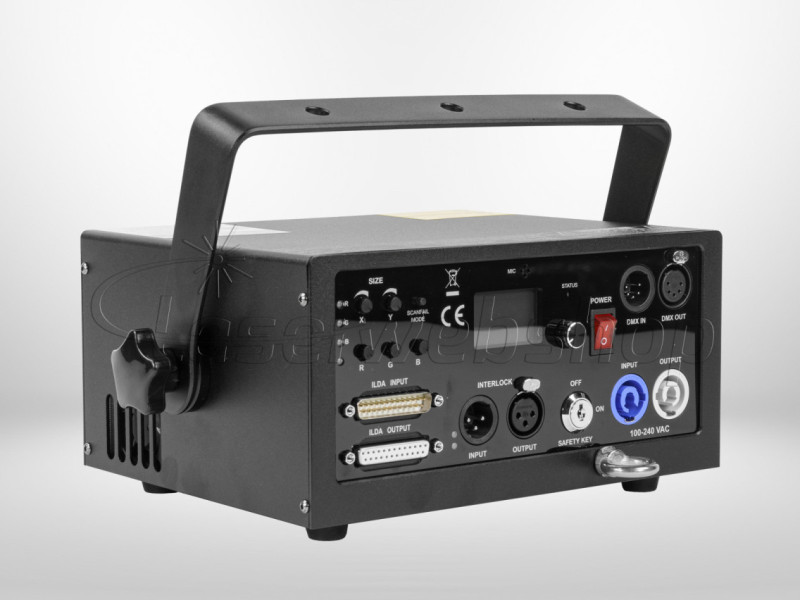

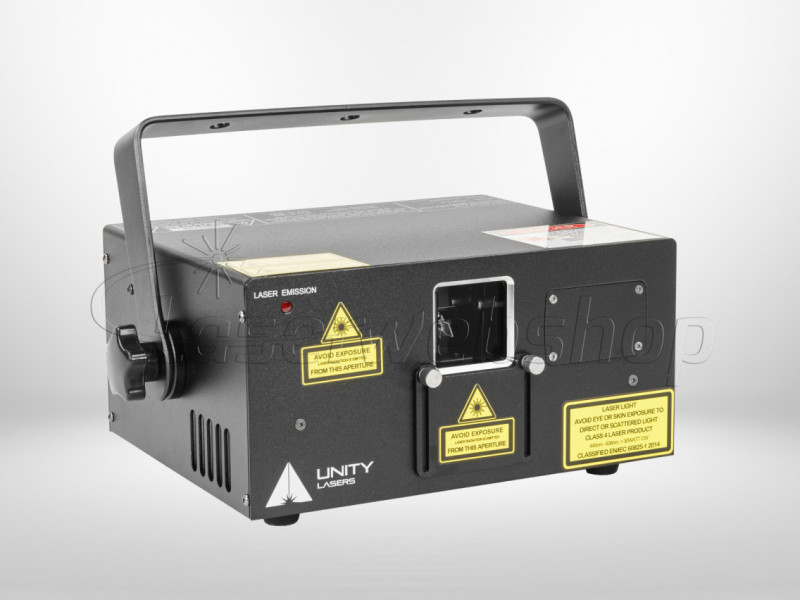

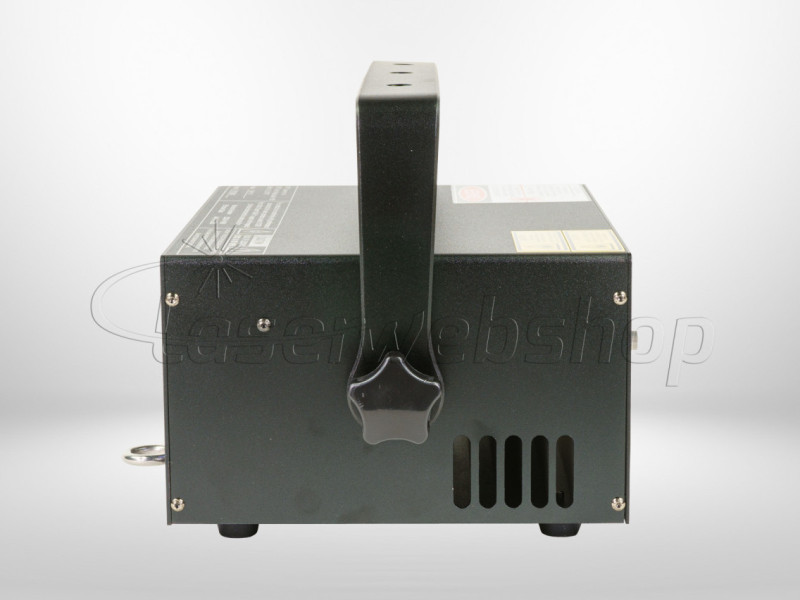

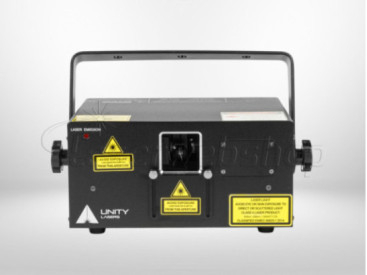

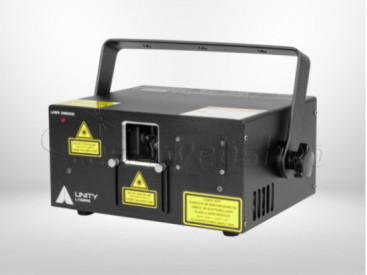

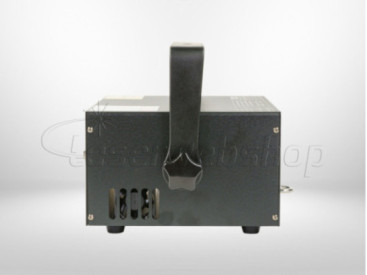

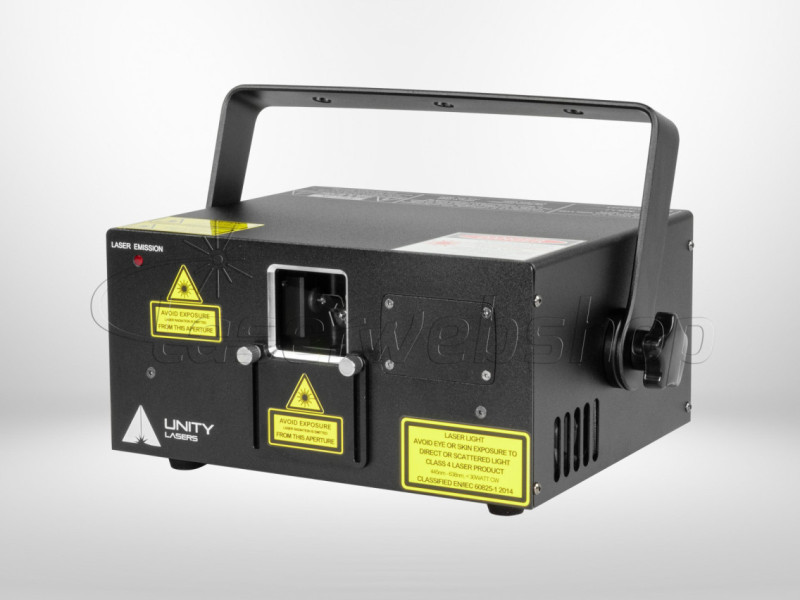

Raw 1.7
The Unity RAW 1.7 is a full color RGB, diode-based laser systems, designed for clients who need impactful aerial beam effects, with the ability to also produce laser graphics, logos and text.
Related Products
$ 518.12
$ 11.00
Specifications
| Total Optical Output | 1.800mW |
| Scanning Speed | 35kpps@8° |
| Red Laser Module | 350mW - 638nm |
| Green Laser Module | 500mW - 520nm |
| Blue Laser Module | 1.000mW - 445nm |
| Beam Diameter | 5.0x3.0mm |
| Divergence | ˂ 1.1mrad, full angle |
| Analog Modulation | 0-5V - 50kHz |
| Power Consumption | ˂ 100W |
| Operating Temperature | 10-40 °C |
| IP Rating | IP4X |
| Weight | 5.3kg |
| Dimensions (LxWxH) | 192x238x126mm |
