1.25W Orange 607nm

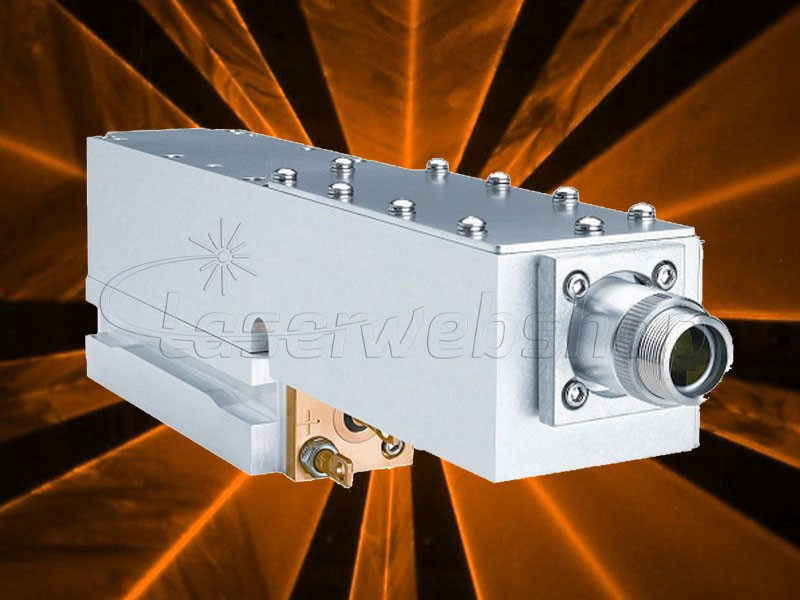

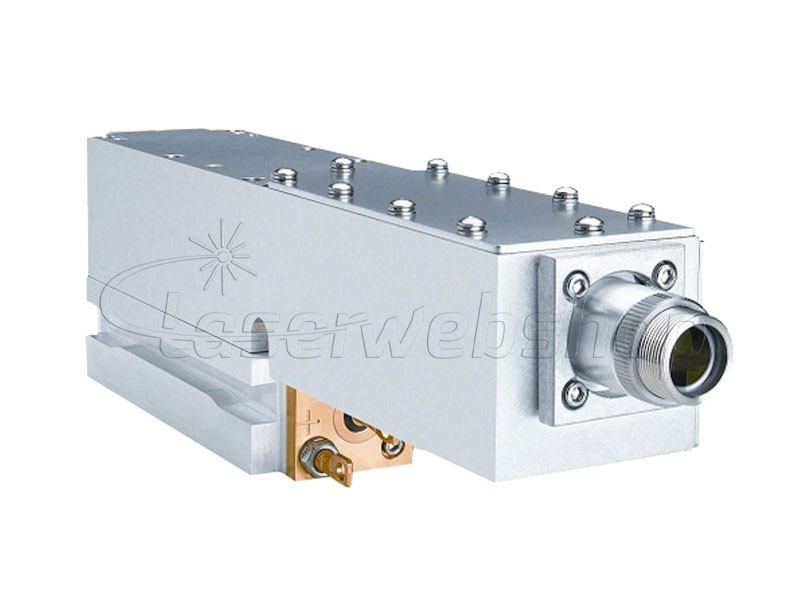

Orange OPS laser module with a wavelength of 607nm and an output power of 1.25W.
Reference:
LMKVT-O6071W25
Compare0
Wishlist
Brand:
LMKVT-O6071W25
Data sheet
- Laser Output Power
- 1.250mW
- Wavelength
- 607nm
- Wavelength Torlerance
- +/-3nm
- Spectral Width
- ˂ 0.5nm
- Beam Diameter (1/e^2)
- 2.3mm
- Beam Divergence (Half Angle)
- ˂ 0.8mrad
- Linear Polarization
- Horizontal, 100-1
- M^2 (H/V)
- 6 / 4
- Modulation Frequency
- 50kHz
- Peak Power Consumption
- 40A on 1.5-2.2V
- Module Dimensions (LxWxH)
- 256x49x71mm
