1.5W Blue

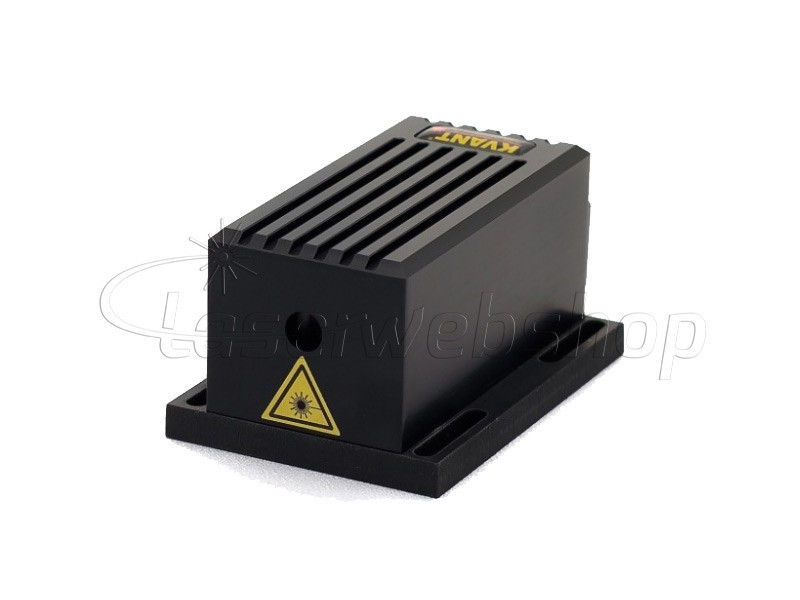

Blue laser module with a wavelength of 445nm and an output power of 1.5W.
Reference:
LMKVT-B1W5
Compare0
Wishlist
Brand:
LMKVT-B1W5
Data sheet
- Laser Output Power
- 1.500mW
- Wavelength
- 445nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 3.0 / 3.0mm
- Beam Divergence (Half Angle)
- 0.7 / 0.3mrad
- Linear Polarization
- Yes
- M^2 (H/V)
- 8 / 3
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 1.0A (24V)
- Power Consumption TEC
- 1.5A (24V)
- Input Voltage
- 24V
- Module Dimensions (LxWxH)
- 87x60x45mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
