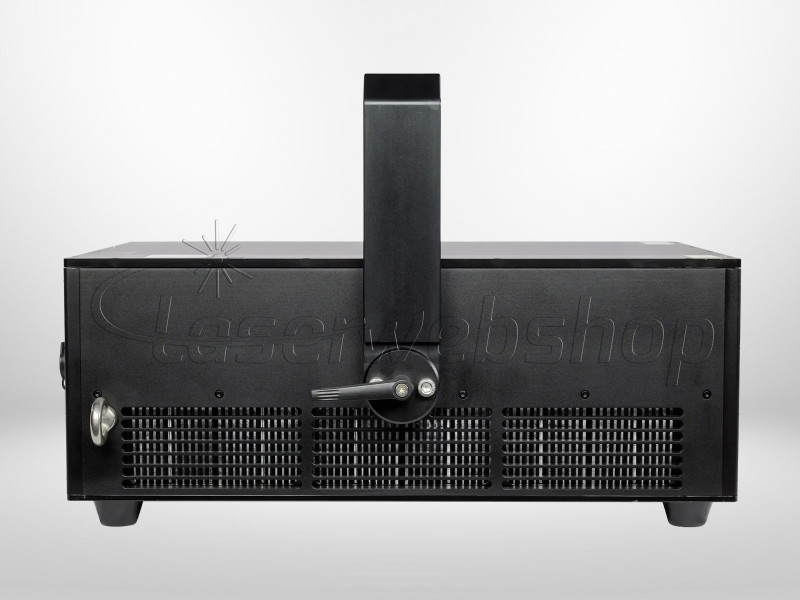

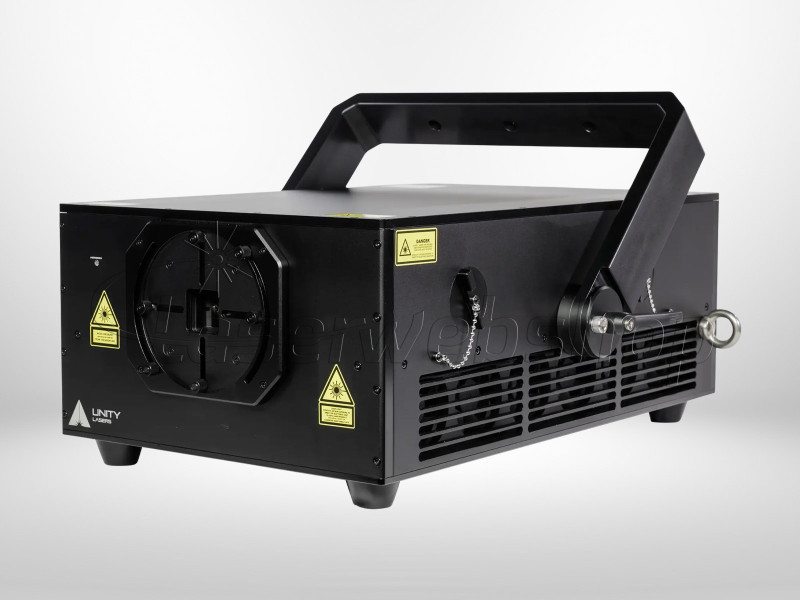

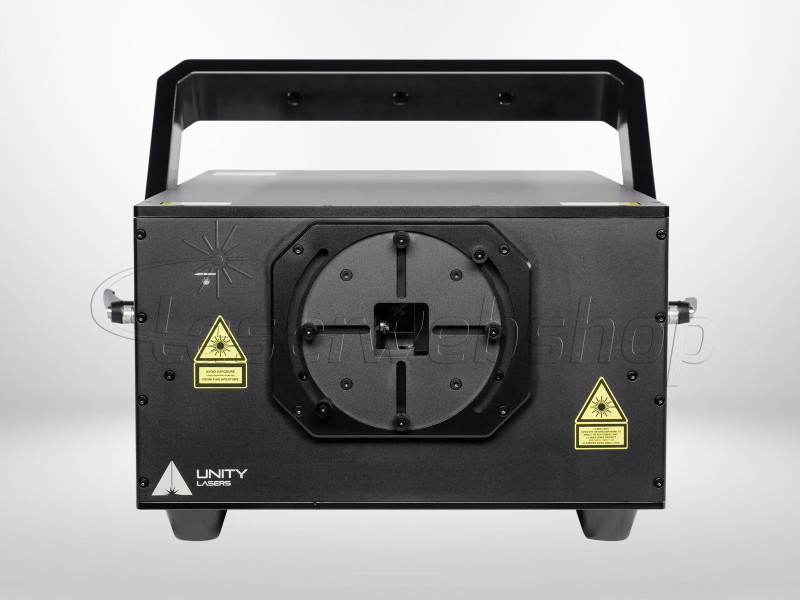

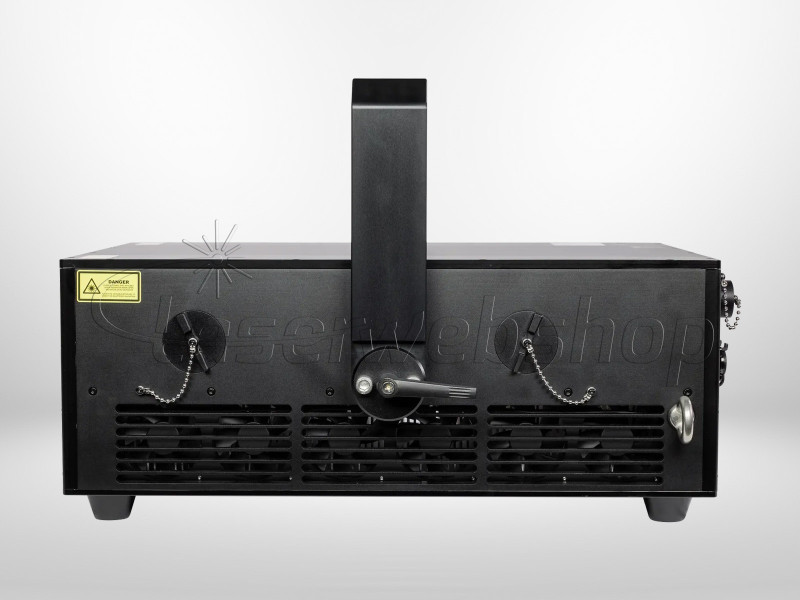

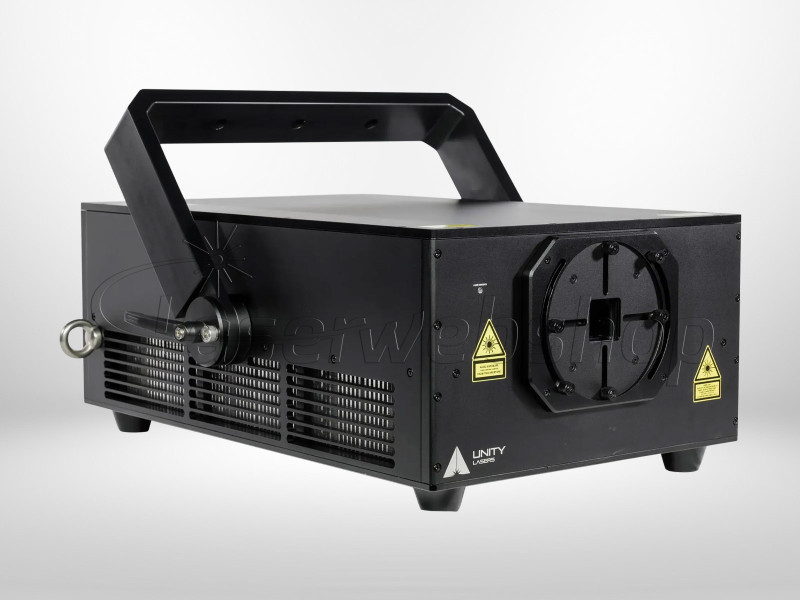

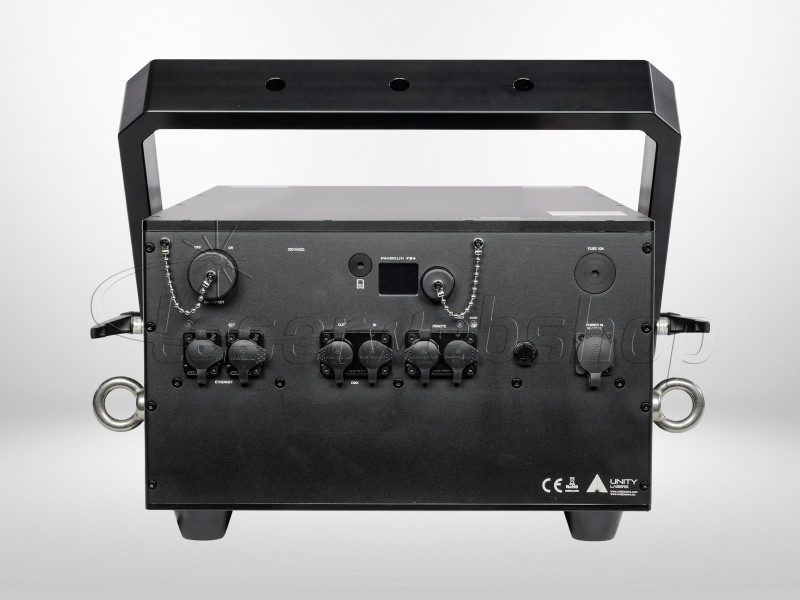

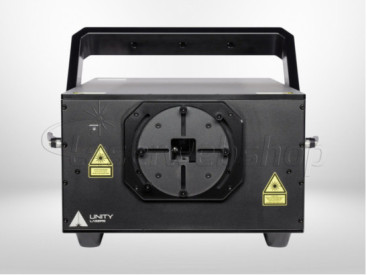

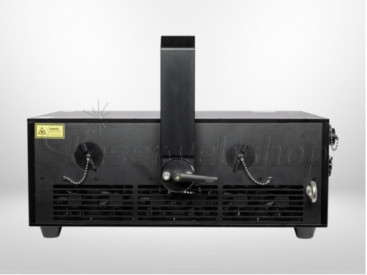

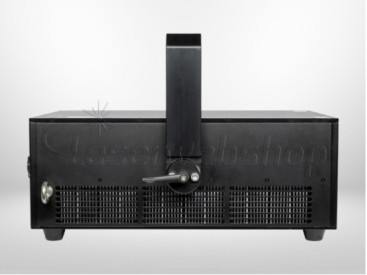

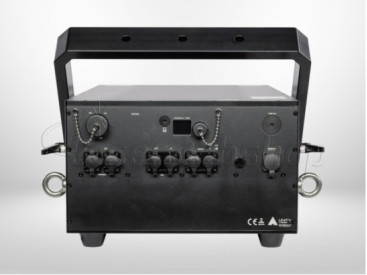

Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Elite Pro FB4 120 IP65
Unity - Elite Pro 60-120 Power Comparison Unity Elite PRO 60-120W

Elite Pro FB4 120 IP65

Elite Pro FB4 60 IP65
$27,244.86
Delivery time around 2 weeks
Reference:
LPUNI-ELITEPRO120
Compare0
Wishlist
QR code
Share
Brand:
Unity Lasers
Related Products
No items
Product Details
LPUNI-ELITEPRO120

Data sheet

Total Optical Output
120.000mW
Scanning Speed
25kpps@8°
Red Laser Module
30.000mW - 638nm
Green Laser Module
40.000mW - 525nm
Blue Laser Module
50.000mW - 450nm
Beam Diameter
7.5x7.5mm
Divergence
˂ 1.2mrad, full angle
Analog Modulation
0-5V - 100kHz
Power Consumption
˂ 1600W
Operating Temperature
-10-45 °C
IP Rating
IP65
Weight
58kg
Dimensions (LxWxH)
705x576x273mm
Downloads
Unity QuickStart Guide
Download (428.49KB)
User Manual - Elite PRO 10-120W
Download (3.72MB)
Tech Drawing - Elite PRO 120W
Download (180.81KB)
