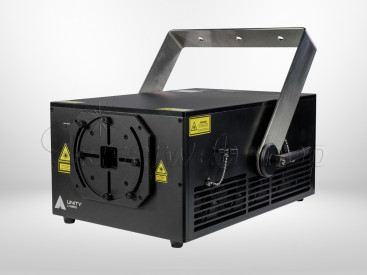

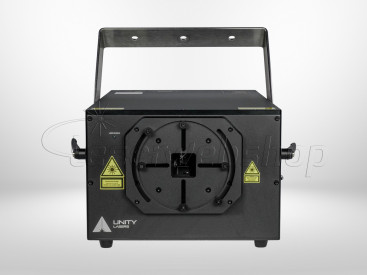

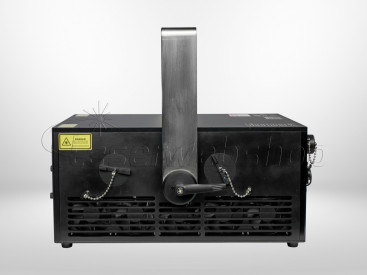

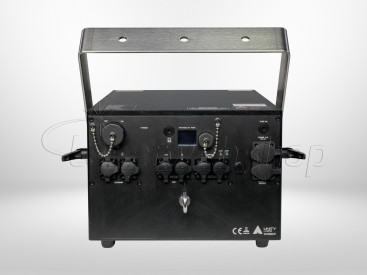

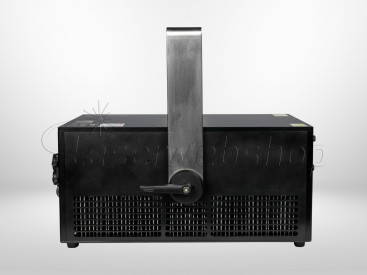

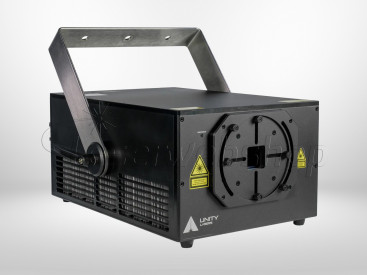

Elite Pro FB4 60 IP65

Elite Pro FB4 40 IP65
Elite Pro FB4 120 IP65
$15,305.31
Delivery time around 2 weeks
Reference:
LPUNI-ELITEPRO60
Compare0
Wishlist
QR code
Share
Brand:
Unity Lasers
Related Products
No items
Product Details
LPUNI-ELITEPRO60

Data sheet

Total Optical Output
59.500mW
Scanning Speed
30kpps@8°
Red Laser Module
19.500mW - 638nm
Green Laser Module
20.000mW - 525nm
Blue Laser Module
20.000mW - 450nm
Beam Diameter
7.0x7.0mm
Divergence
˂ 1.2mrad, full angle
Analog Modulation
0-5V - 100kHz
Power Consumption
˂ 1200W
Operating Temperature
-10-45 °C
IP Rating
IP65
Weight
32kg
Dimensions (LxWxH)
509x455x226mm
Downloads
Unity QuickStart Guide
Download (428.49KB)
User Manual - Elite PRO 10-120W
Download (3.72MB)
Tech Drawing - Elite PRO FB4 60W
Download (115.06KB)
