10W Combo Blue

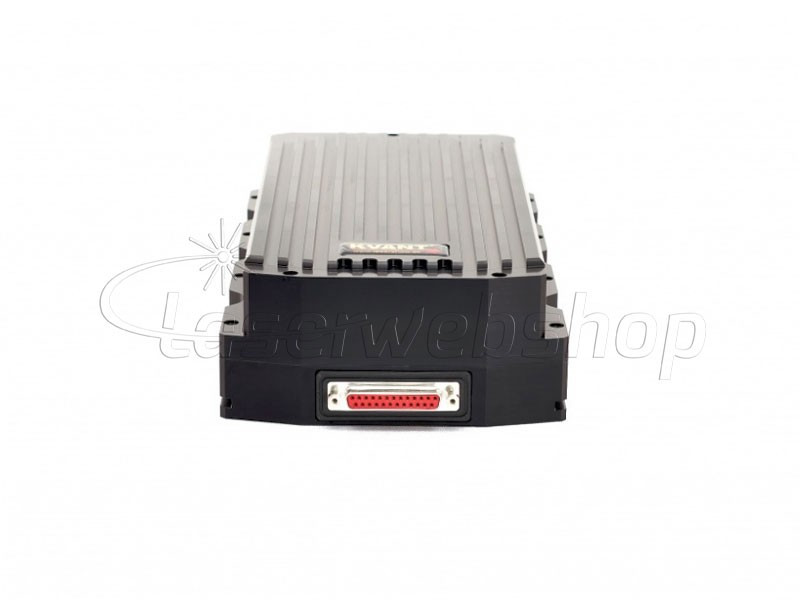

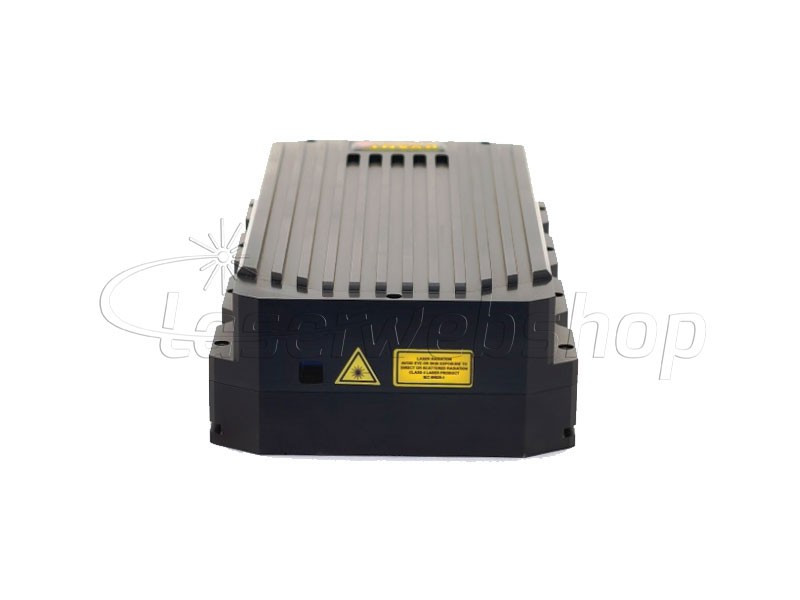

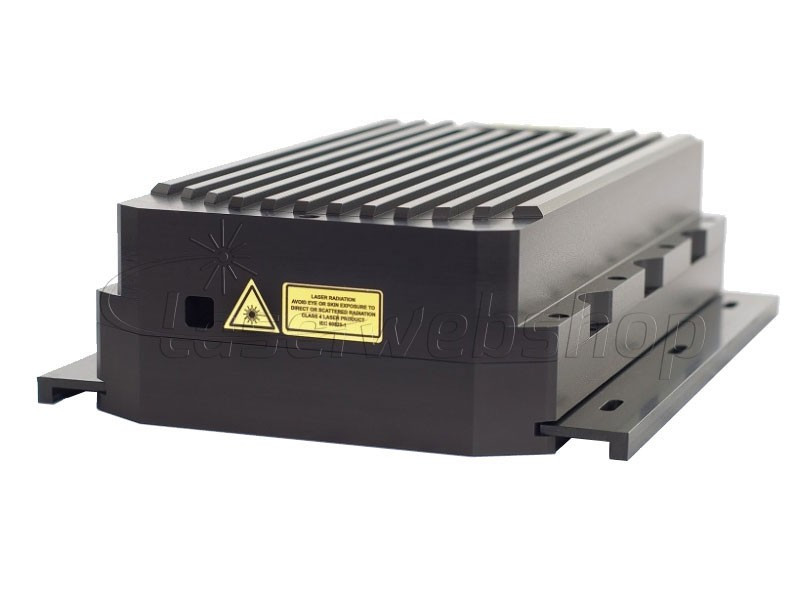

Blue laser module with a combined wavelength of 445nm and 460nm and an output power of 10W.
Reference:
LMKVT-CB10W
Compare0
Wishlist
Brand:
LMKVT-CB10W
Data sheet
- Laser Output Power
- 10.000mW
- Wavelength
- 445+460nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 5.5 / 5.5mm
- Beam Divergence (Half Angle)
- 0.4 / 0.3mrad
- Linear Polarization
- No
- M^2 (H/V)
- 8 / 8
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 3.5A (24V)
- Power Consumption TEC
- 12.0A (24V)
- Input Voltage
- 24V

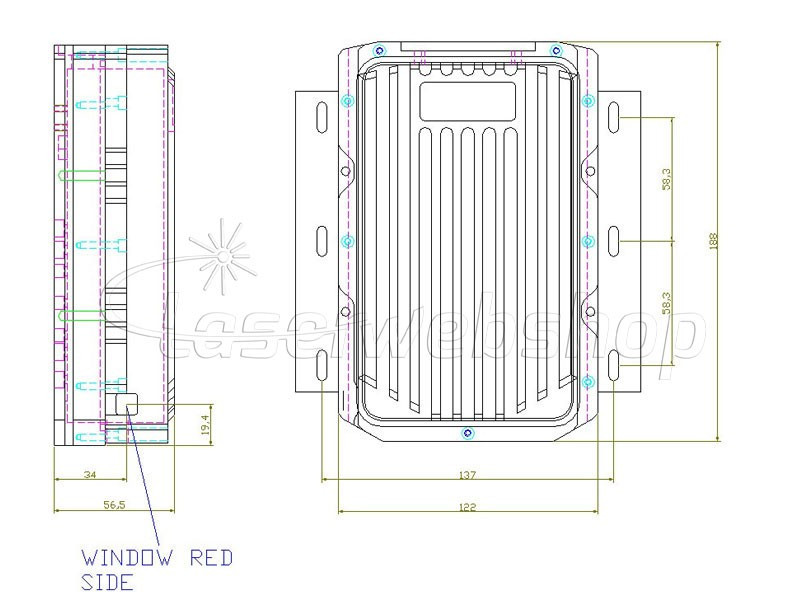

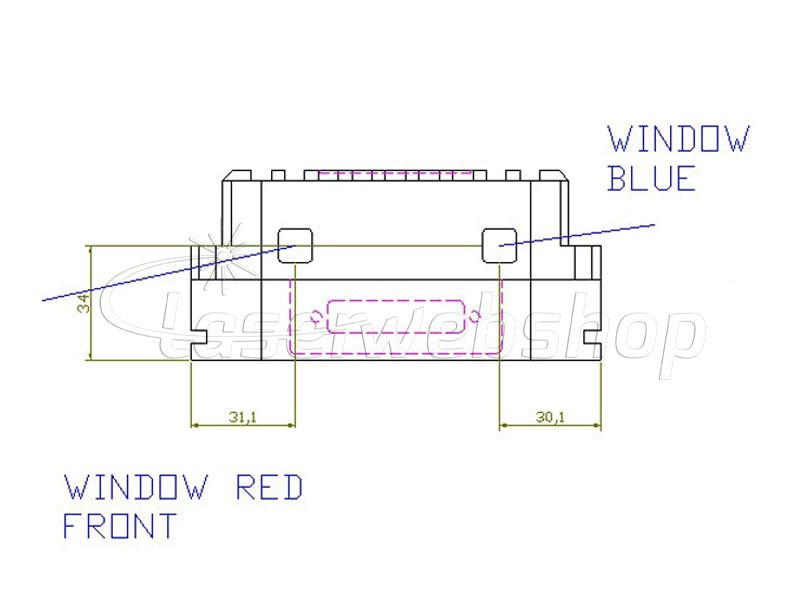

- Module Dimensions (LxWxH)
- 188x122x57mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
