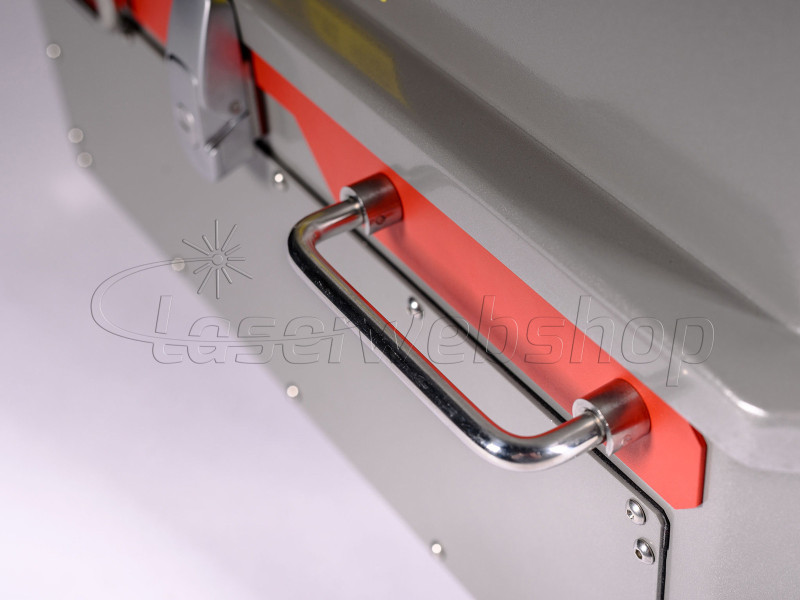

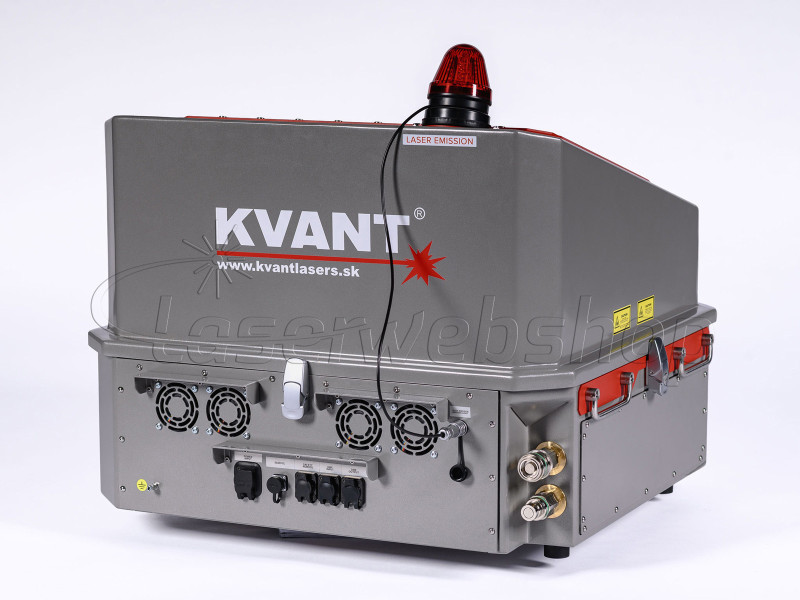

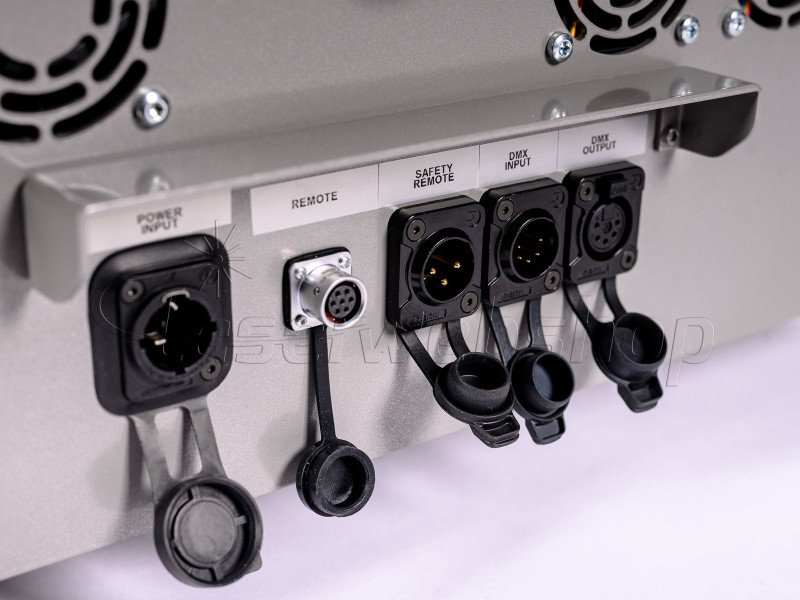

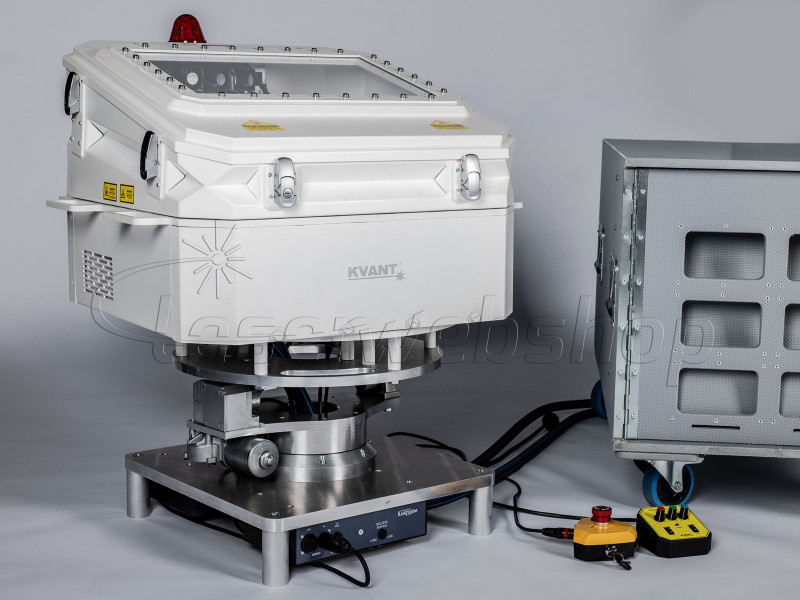

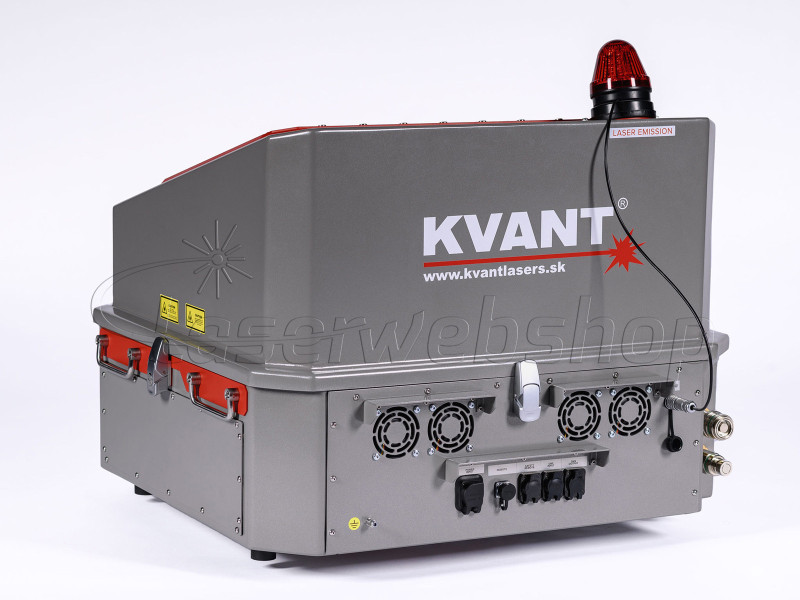

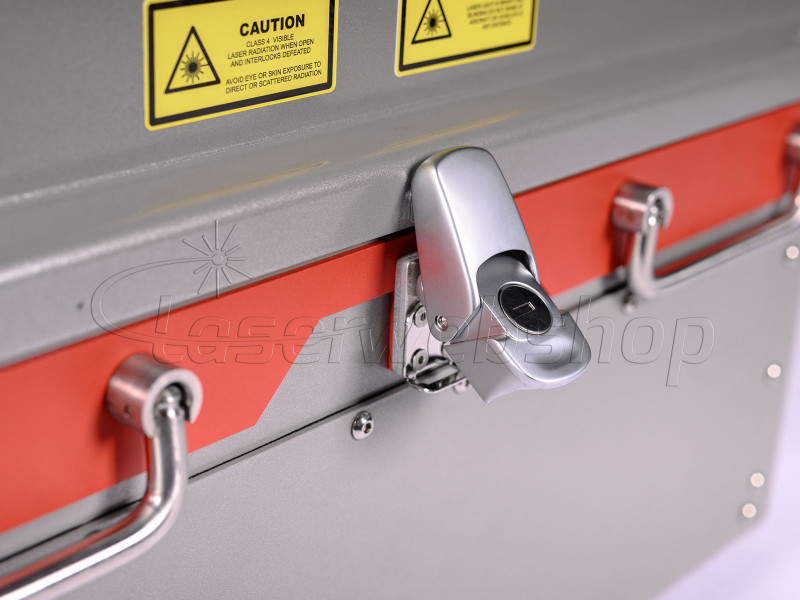

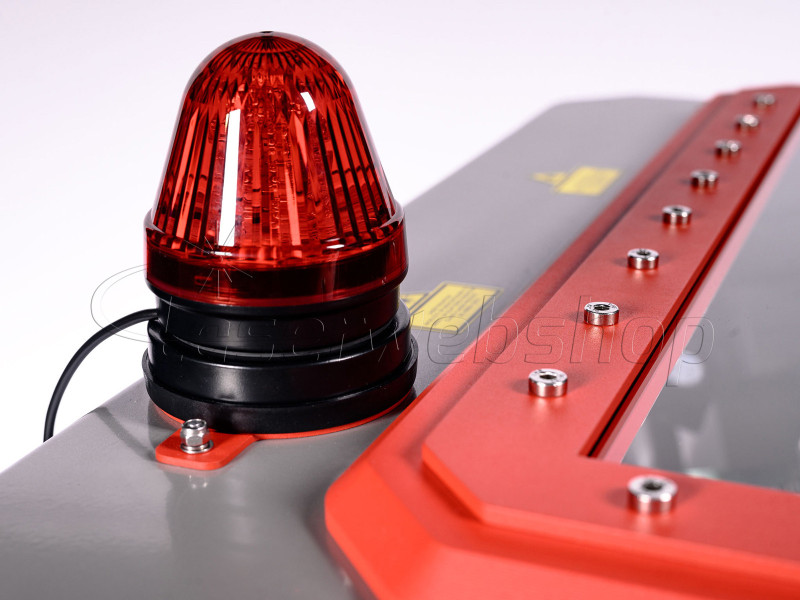

Architect W500B
Brand:
LPKVT-AR500B
Data sheet
- Total Optical Output
- 486W
- Scanning Speed
- None (static beam)
- Red Laser Module
- 152W - 637nm
- Green Laser Module
- 188W - 525nm
- Blue Laser Module
- 146W - 465nm
- Beam Diameter
- 400x400mm
- Divergence
- ˂ 3.4mrad, full angle
- Operating Temperature
- 5-40 °C
- IP Rating
- IP65
- Power Consumption Laser
- ˂ 2000VA
- Power Consumption Chiller
- ˂ 1600VA
- Weight Laser
- 80kg
- Weight Chiller
- 46kg
- Dimensions Laser
- 640x574x682mm
- Dimensions Chiller
- 686x399x483mm
