Specifications
| Laser Output Power | 24.000mW |
| Wavelength | 445nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 11.0 / 10.0mm |
| Beam Divergence (Half Angle) | 0.7 / 0.3mrad |
| Linear Polarization | No |
| M^2 (H/V) | 35 / 11 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 7.0A (24V) |
| Power Consumption TEC | 12.0A (24V) |
| Input Voltage | 24V |

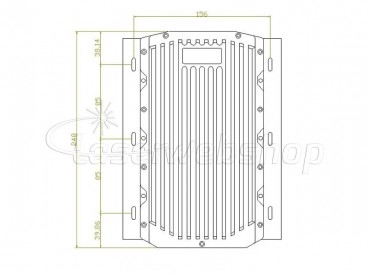

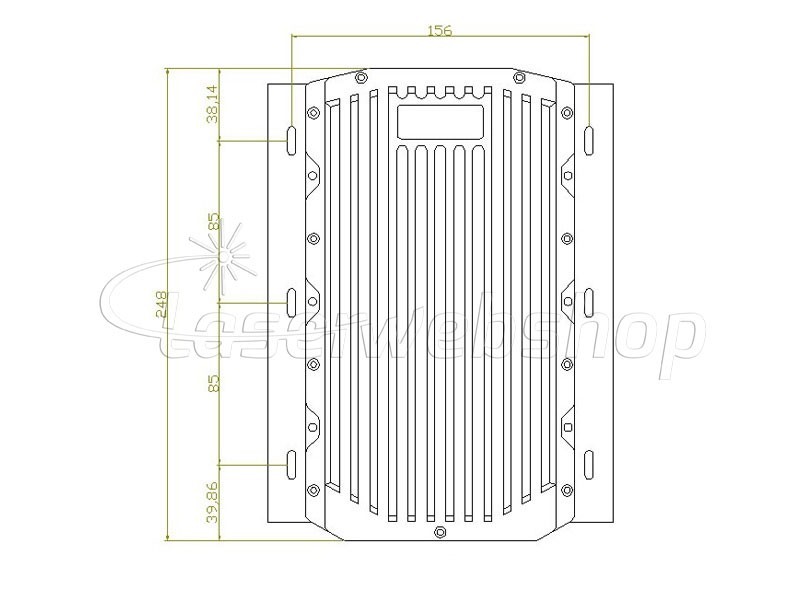

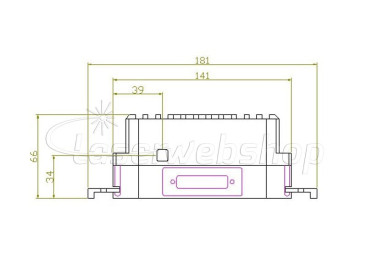

| Module Dimensions (LxWxH) | 248x141x66mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
