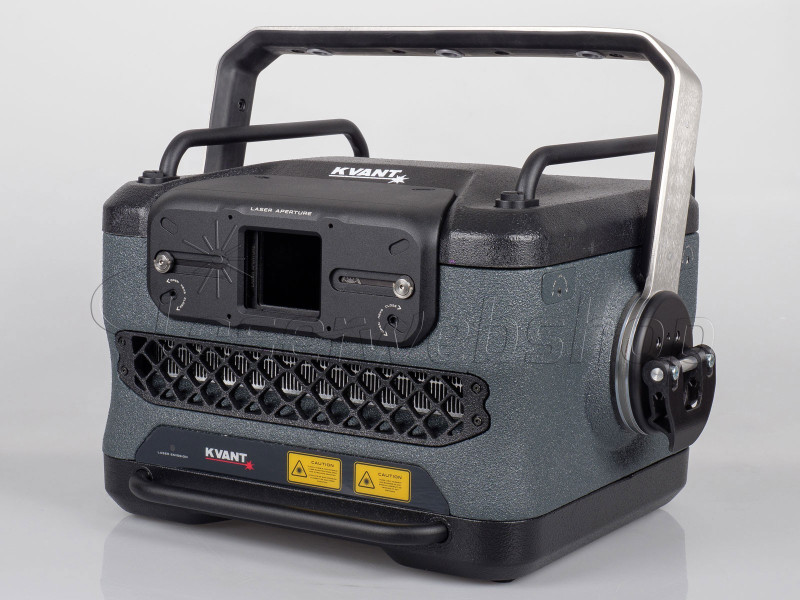

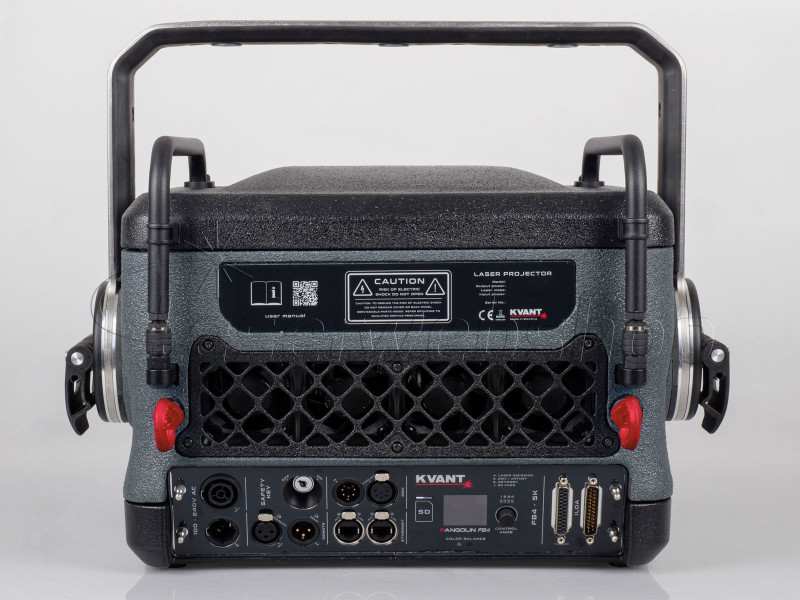

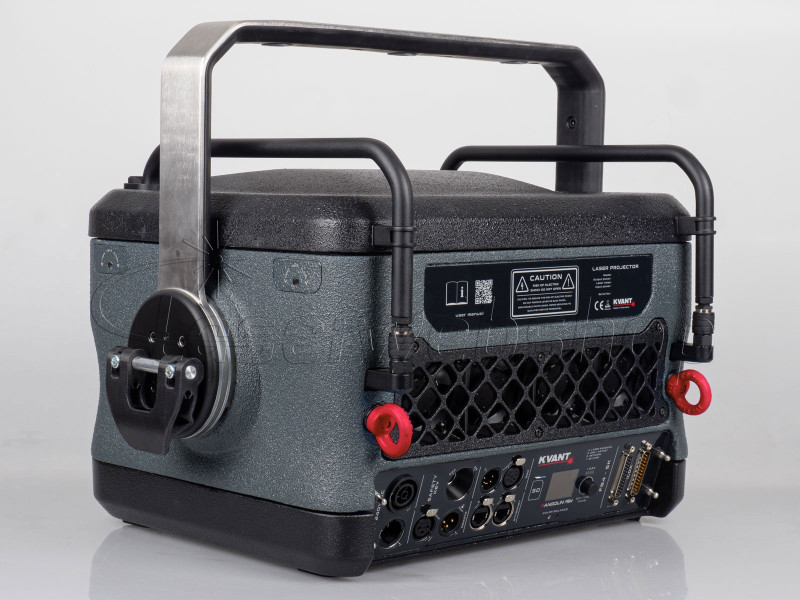

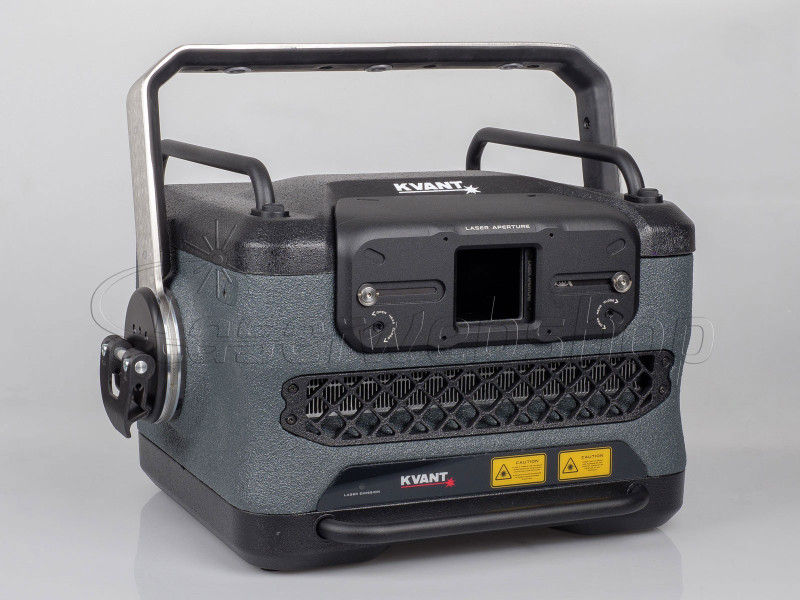

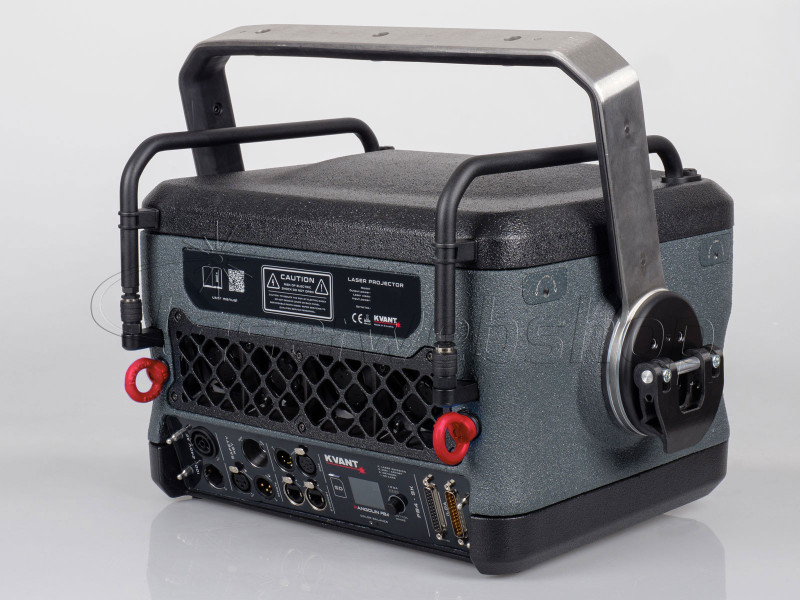

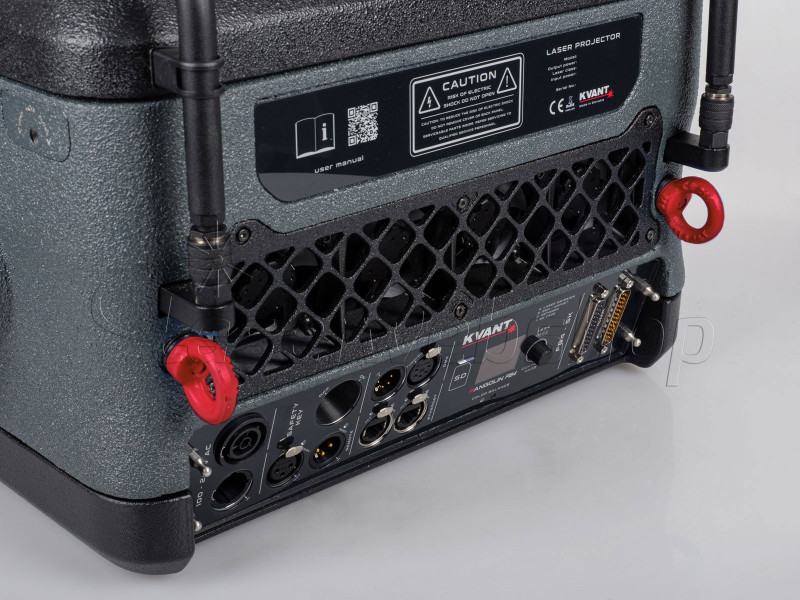

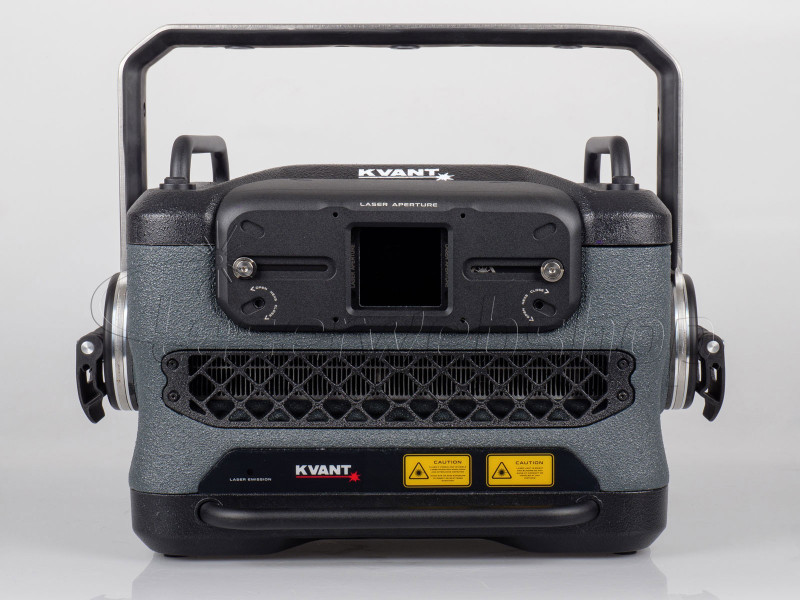

LPKVT-SP55Y
Data sheet
- Total Optical Output
- 52.100mW
- Scanning Speed
- Saturn 9 - 30kpps max 40°
- Red Laser Module
- 8.500mW - 637nm
- Yellow Laser Module
- 5.000mW - 577nm (OPSL)
- Green Laser Module
- 17.000mW - 525nm
- Blue Laser Module
- 25.000mW - 455nm
- Beam Diameter
- 7.0x7.0mm
- Divergence
- ˂ 0.9mrad, full angle
- Analog Modulation
- 0-5V - 100kHz
- Power Consumption
- ˂ 1200VA
- Operating Temperature
- 10-35 °C
- Weight
- 31kg
- Dimensions (LxWxH)
- 396x491x310mm
