70mW Lime 505nm
Scientific laser module with a wavelength of 505nm and an output power of 70mW.
Reference:
LMKVT-S505W07
Compare0
Wishlist
Brand:
LMKVT-S505W07
Data sheet
- Laser Output Power
- 70mW
- Wavelength
- 505nm
- Wavelength Torlerance
- +/-5nm
- Beam Structure
- TEM00
- Beam Diameter (1/e^2)
- 3.0mm
- Beam Divergence (Half Angle)
- 0.2mrad
- Linear Polarization
- Yes
- M^2
- +/-1
- Modulation Frequency
- 10kHz
- OEM Driver Peak Power
- 2.0A (24V)
- Input Voltage
- 24V

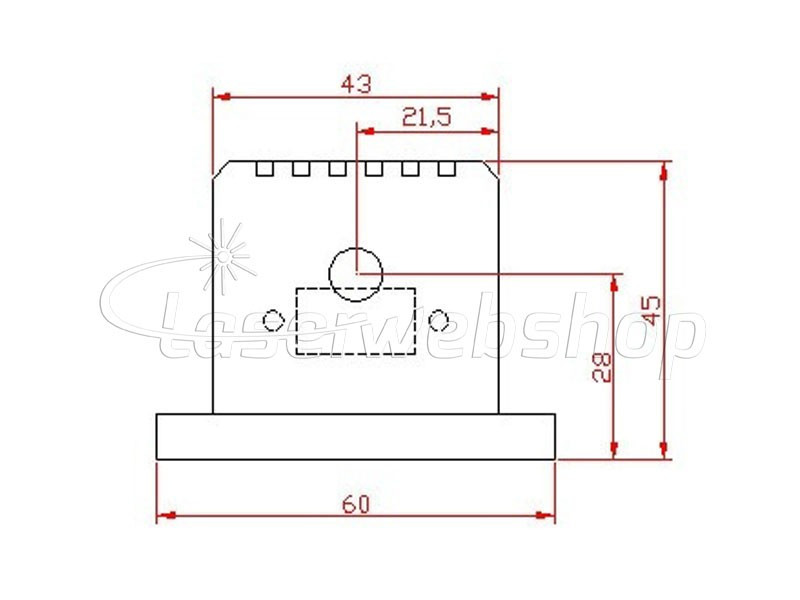

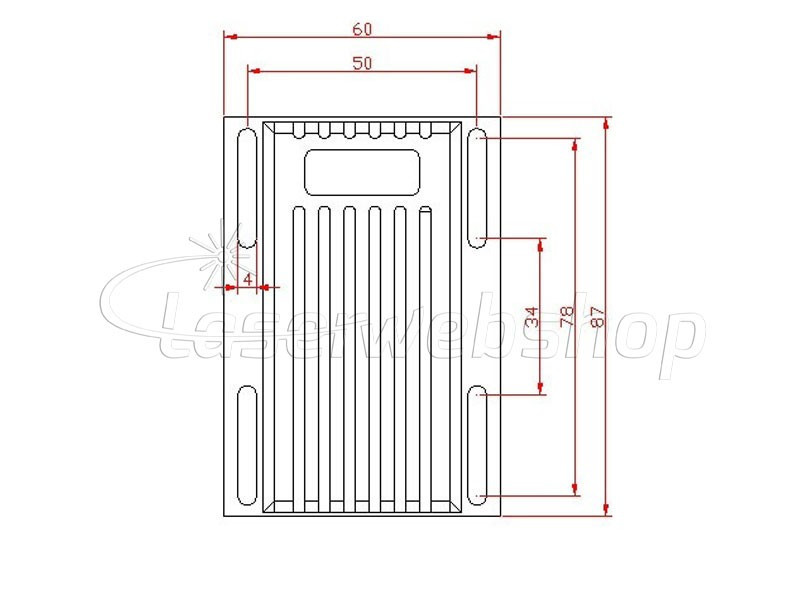

- Module Dimensions (LxWxH)
- 87x60x45mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
