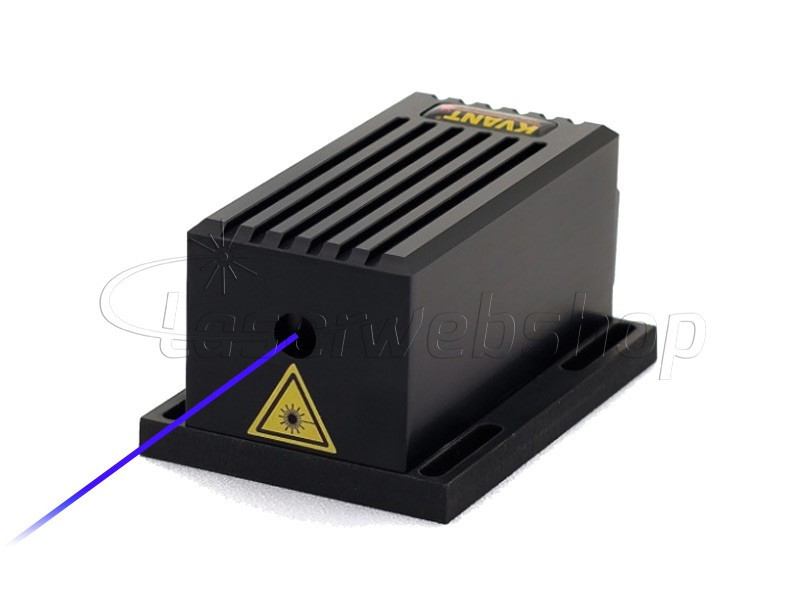

500mW Blue 445nm
Scientific laser module with a wavelength of 445nm and an output power of 500mW.
Reference:
LMKVT-S445W5
Compare0
Wishlist
Brand:
LMKVT-S445W5
Data sheet
- Laser Output Power
- 500mW
- Wavelength
- 445nm
- Wavelength Torlerance
- +/-5nm
- Beam Structure
- Multimode
- Beam Diameter (1/e^2)
- 4.0 / 4.0mm
- Beam Divergence (Half Angle)
- 0.3 / 0.2mrad
- Linear Polarization
- Yes
- Modulation Frequency
- 10kHz
- OEM Driver Peak Power
- 2.5A (24V)
- Input Voltage
- 24V
- Module Dimensions (LxWxH)
- 87x60x45mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
