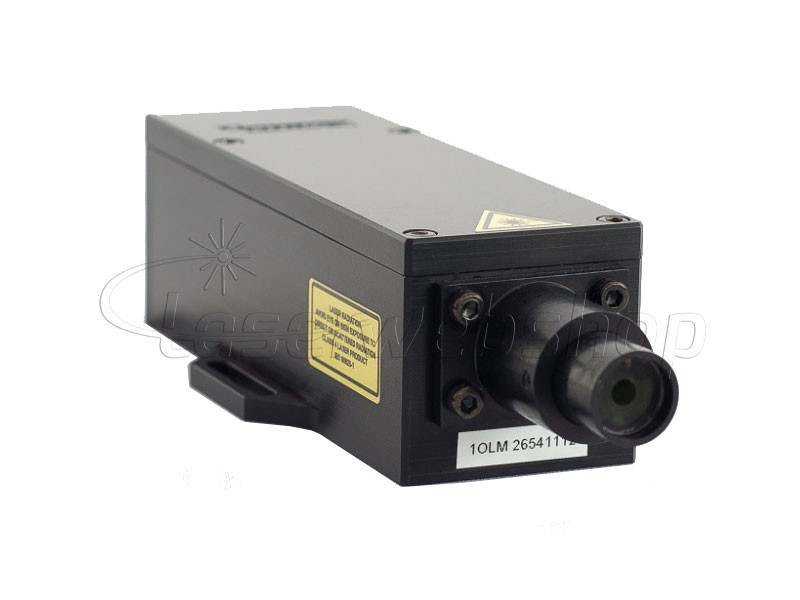

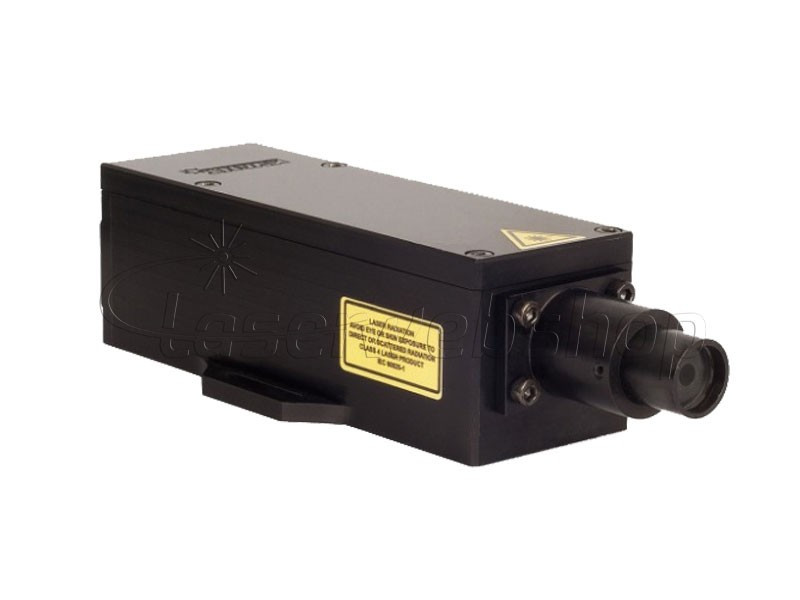

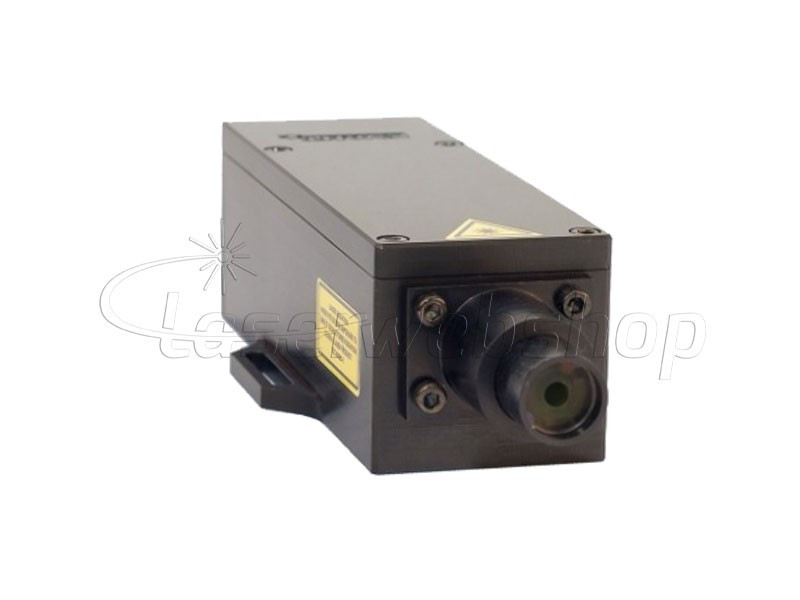

20mW UV 320nm
Scientific laser module with a wavelength of 320nm and an output power of 20mW.
Reference:
LMKVT-S320W02
Compare0
Wishlist
Brand:
LMKVT-S320W02
Data sheet
- Laser Output Power
- 20mW
- Wavelength
- 320nm
- Wavelength Torlerance
- +/-5nm
- Beam Structure
- TEM00
- Beam Diameter (1/e^2)
- 3.0mm
- Beam Divergence (Half Angle)
- 0.2mrad
- Linear Polarization
- Yes
- M^2
- ˂ 1.1
- Modulation Frequency
- 10kHz
- OEM Driver Peak Power
- 2.5A (24V)
- Input Voltage
- 24V
- Module Dimensions (LxWxH)
- 120x59x40mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
