1.3W Bright Red
Bright Red laser module with a wavelength of 637nm and an output power of 1.3W.
Specifications
| Laser Output Power | 1.300mW |
| Wavelength | 637nm |
| Wavelength Torlerance | +/-5nm |
| Beam Size FWHM (H/V) | 2.5 / 3.5mm |
| Beam Divergence (Half Angle) | 0.5mrad |
| Linear Polarization | No |
| M^2 (H/V) | 5 / 7 |
| Modulation Frequency | 100kHz |
| Power Consumption LD | 1.0A (24V) |
| Power Consumption TEC | 3.0A (24V) |
| Input Voltage | 12 or 24V |

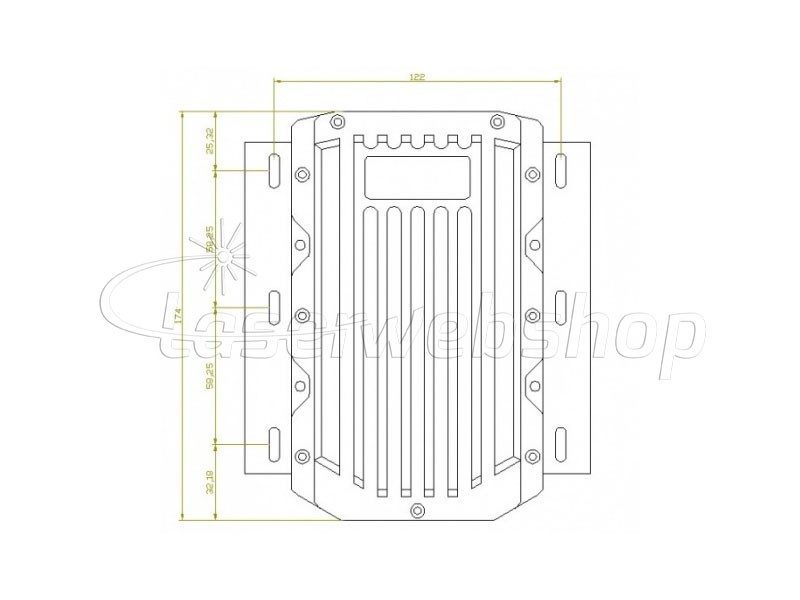

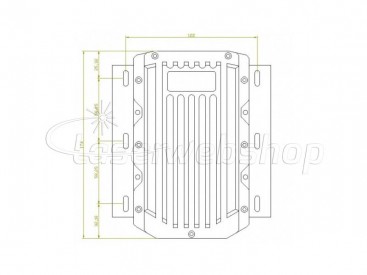

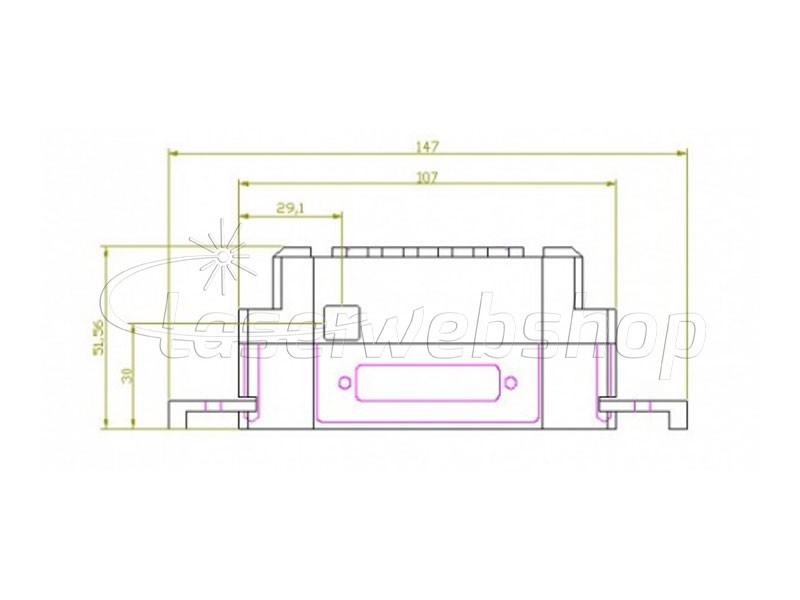

| Module Dimensions (LxWxH) | 174x107x51mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
