Masking Plate 4
$115.28
1W Bright Red

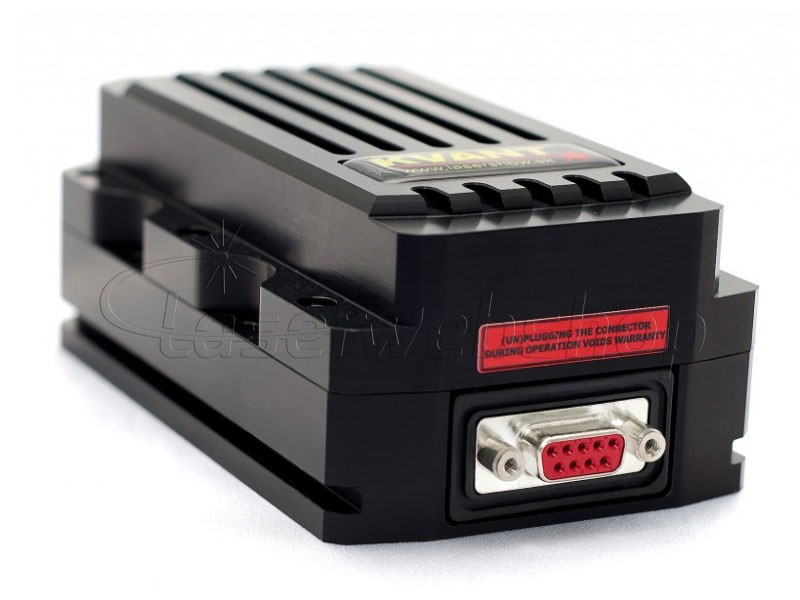

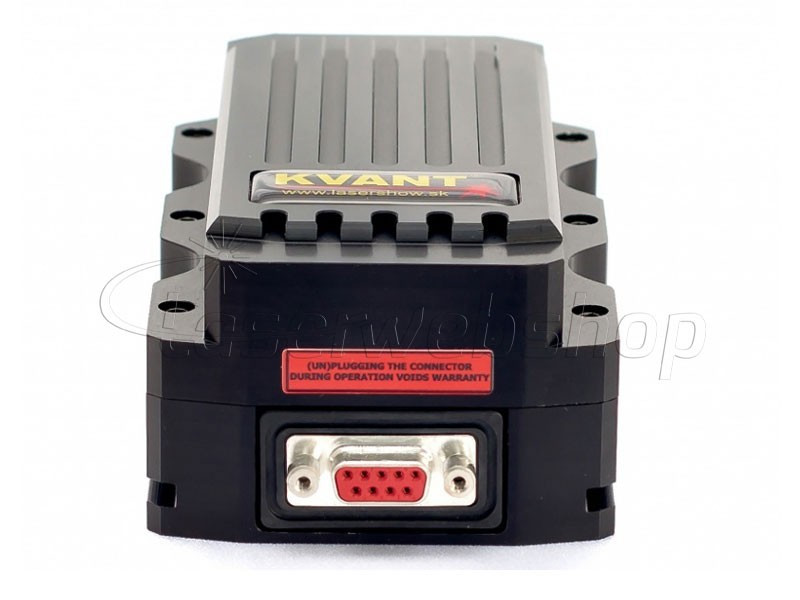

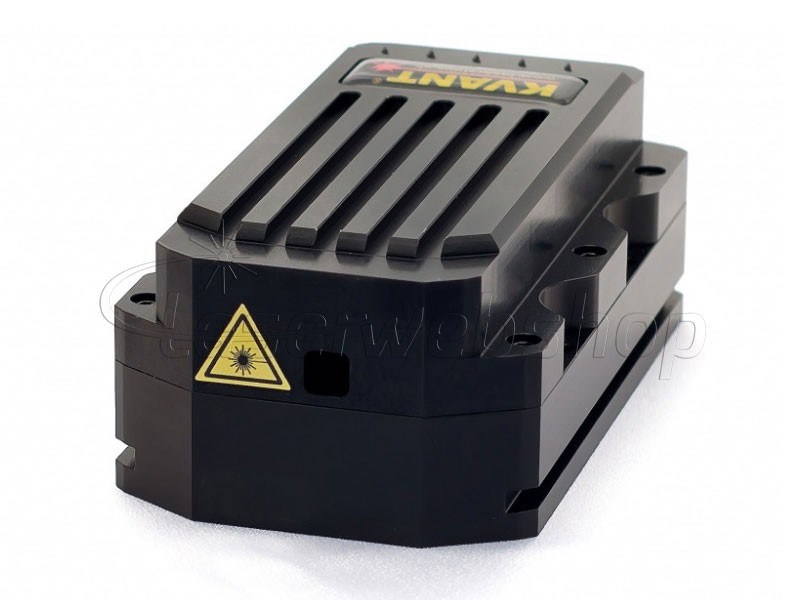

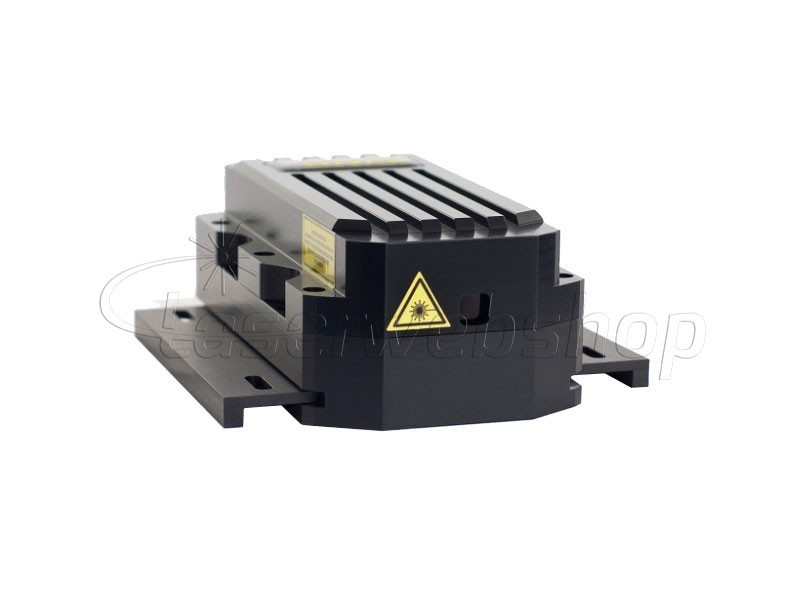

Bright Red laser module with a wavelength of 637nm and an output power of 1W.
Reference:
LMKVT-BR1W
Compare0
Wishlist
Brand:
LMKVT-BR1W
Data sheet
- Laser Output Power
- 1.000mW
- Wavelength
- 637nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 3.5 / 3.5mm
- Beam Divergence (Half Angle)
- 0.5mrad
- Linear Polarization
- Yes
- M^2 (H/V)
- 5 / 7
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 0.5A (24V)
- Power Consumption TEC
- 1.5A (24V)
- Input Voltage
- 12 or 24V

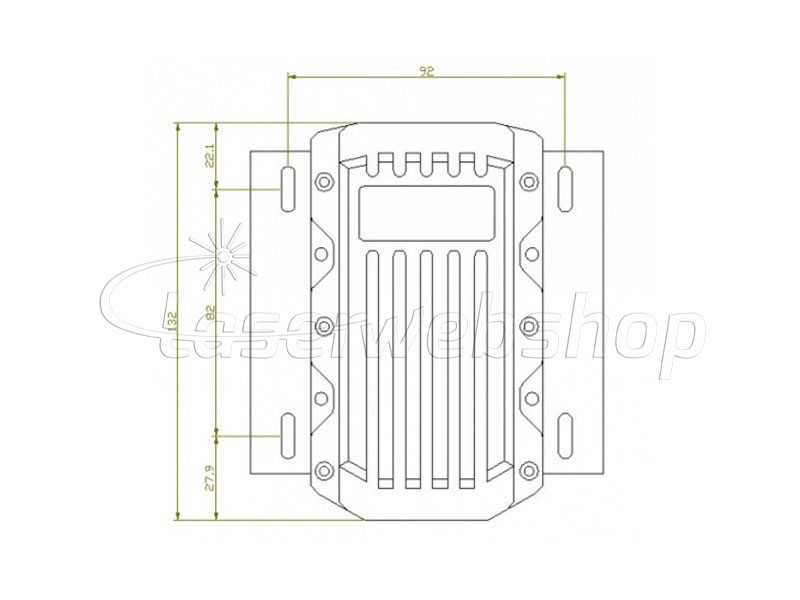

- Module Dimensions (LxWxH)
- 132x77x51mm

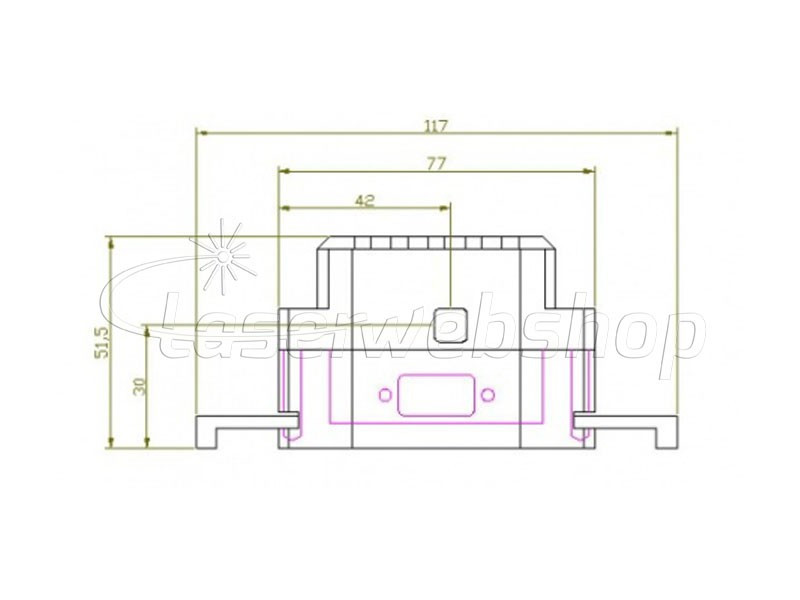

- Driver Dimensions (LxWxH)
- 117x89x34mm
