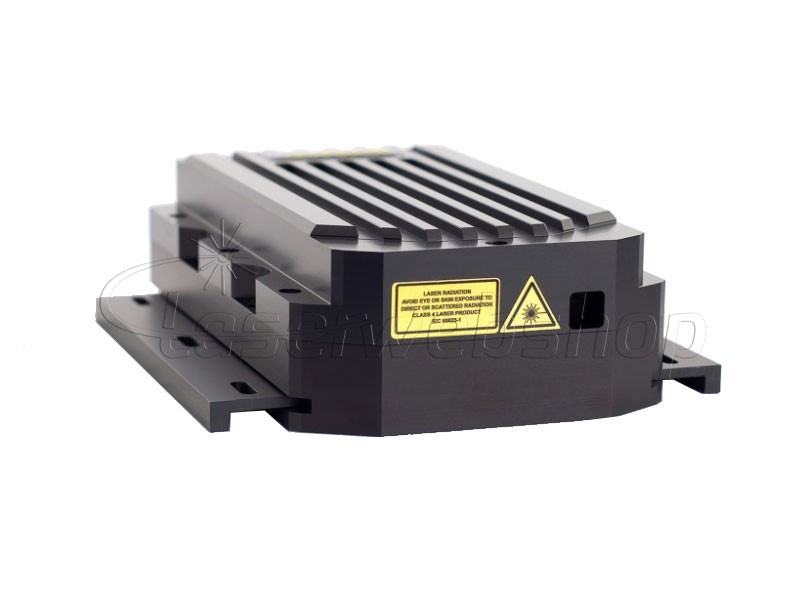

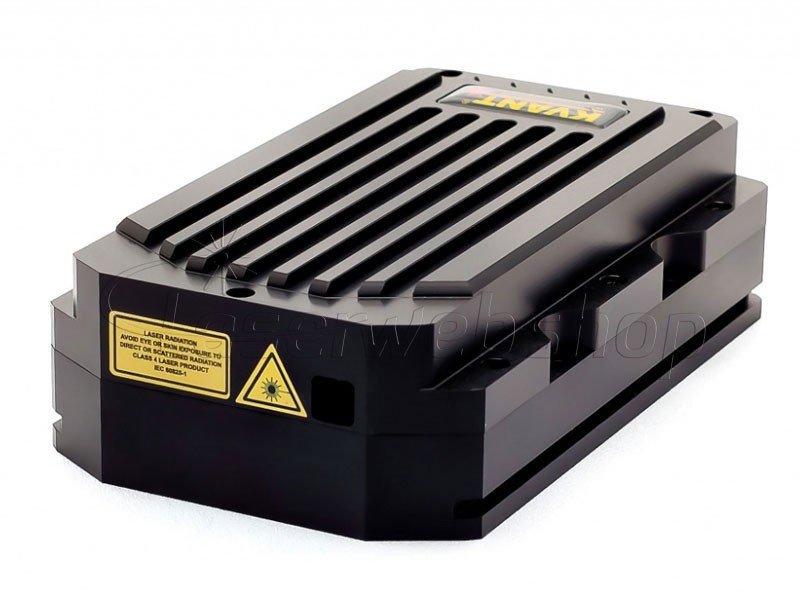

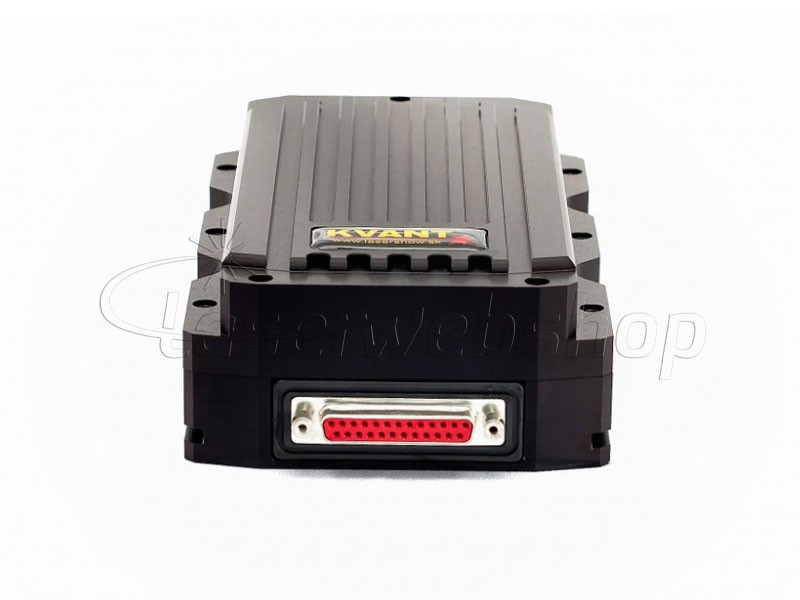

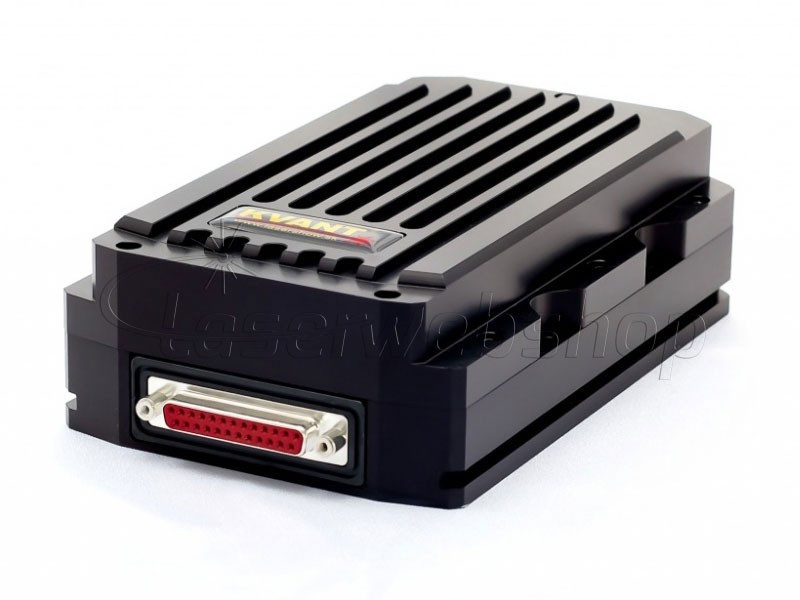

Elite Pro FB4 5
$2,953.73
1.3W Red + 1.5W Blue
Red with Blue laser module with a combined wavelength of 637nm and 445nm and an output power of 2.8W.
Reference:
LMKVT-RB2W8
Compare0
Wishlist
Brand:
LMKVT-RB2W8
Data sheet
- Laser Output Power
- 2.800mW
- Red Output Power
- 1.300mW
- Blue Output Power
- 1500mW
- Wavelength
- 637+445nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 3.5 / 4.5mm
- Beam Divergence (Half Angle)
- 0.6 / 0.5mrad
- Linear Polarization
- Nos
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 2.0A (24V)
- Power Consumption TEC
- 3.0A (24V)
- Input Voltage
- 24V

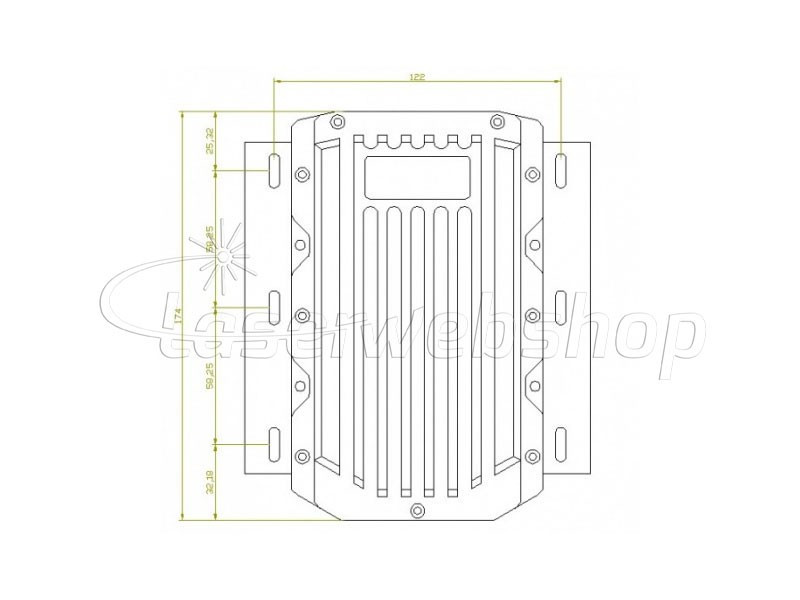

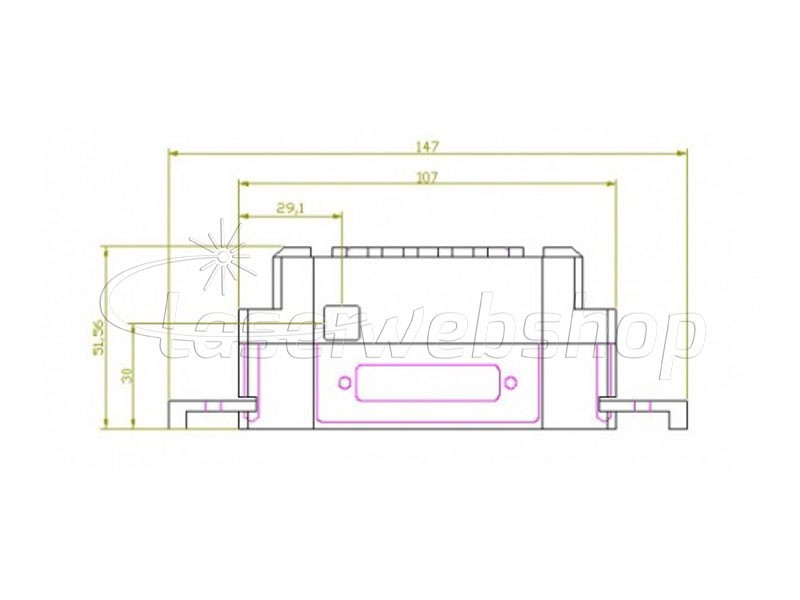

- Module Dimensions (LxWxH)
- 174x107x51mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
