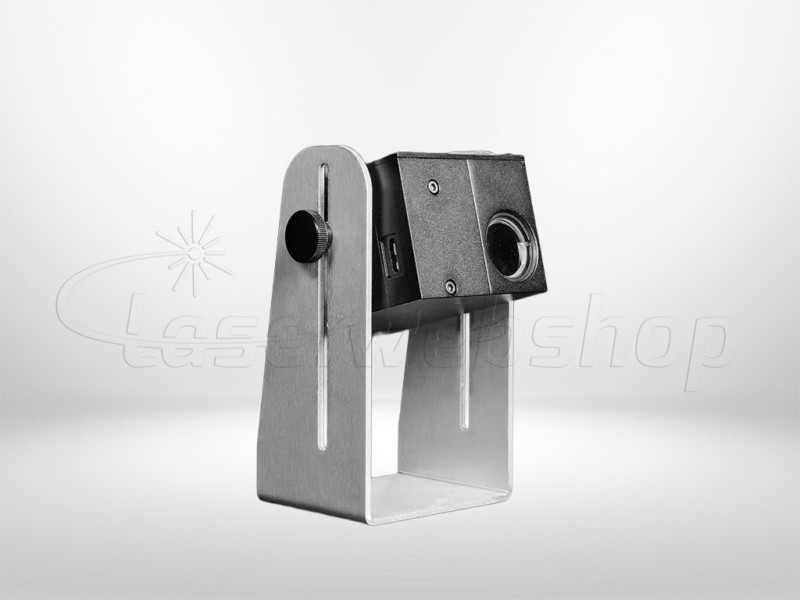

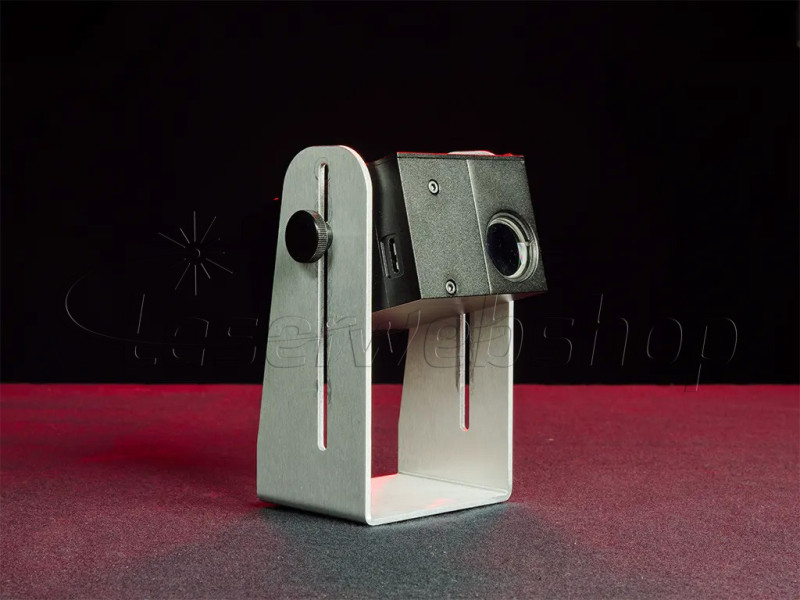

Beam Analyzer

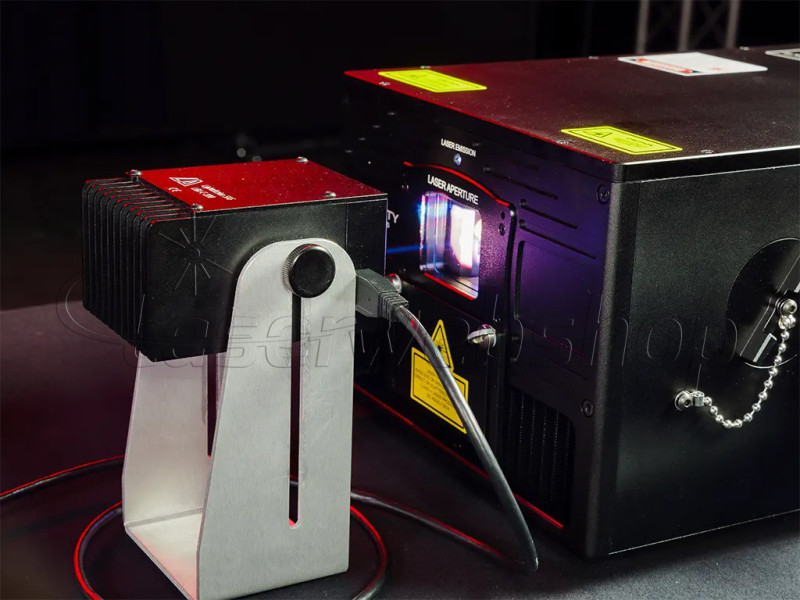

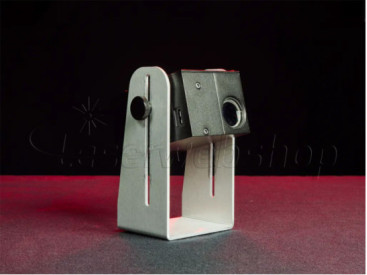

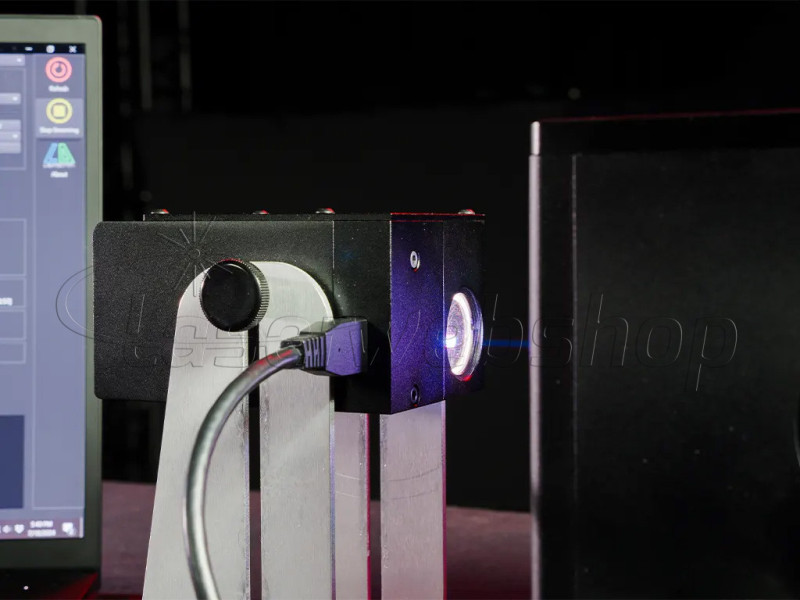

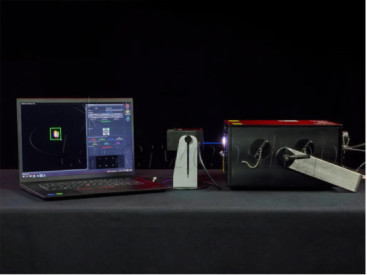

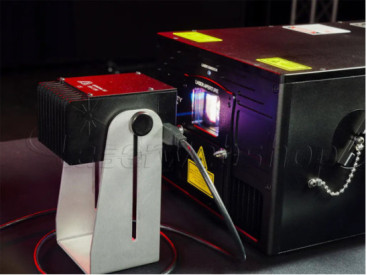

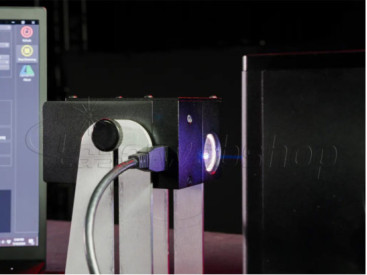

The Pangolin Beam Analyzer is an advanced measurement device designed for analyzing and optimizing professional laser systems. This award-winning beam analyzer measures real-time beam divergence, RGB beam alignment, output power, and lens collimation with exceptional accuracy. Suitable for laser systems up to 100W, it is ideal for laser shows, industrial applications, and technical calibration.
Pangolin Beam Analyzer – Professional Beam Analysis up to 100W
The Pangolin Beam Analyzer is an advanced measurement device designed for analyzing and optimizing professional laser systems. This award-winning beam analyzer measures real-time beam divergence, RGB beam alignment, output power, and lens collimation with exceptional accuracy. Suitable for laser systems up to 100W, it is ideal for laser shows, industrial applications, and technical calibration.
Key Specifications
- Power range: 0.1W to 100W
- Power measurement accuracy: ±1%
- Divergence resolution: 0.01 mrad
- Divergence measurement range: 0.1 – 10 mrad
- Supported wavelengths: 400 – 1000 nm
- Maximum input beam diameter: 22 mm
- USB 3.0 connectivity
- Compatible with Windows 10 & 11
- Compact dimensions: 100 × 75 × 57 mm
- Lightweight design: only 500 grams

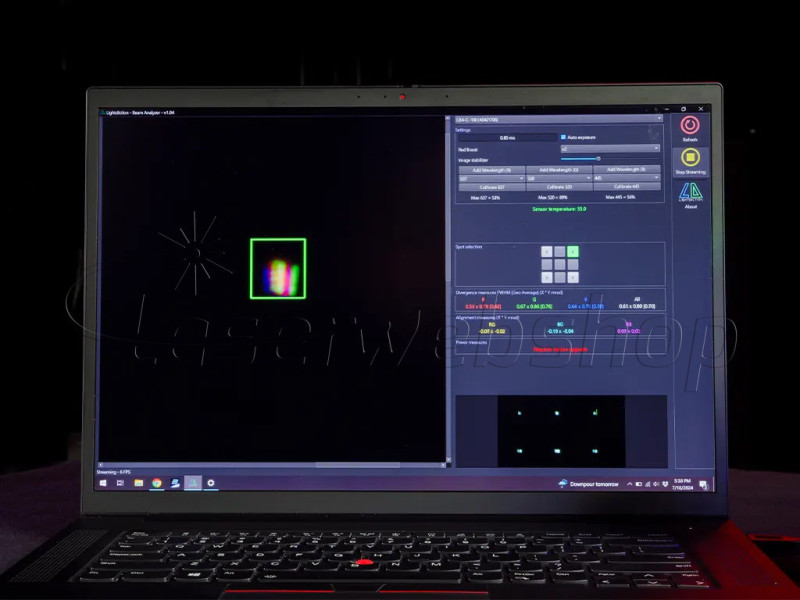

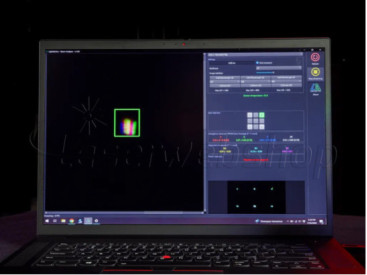

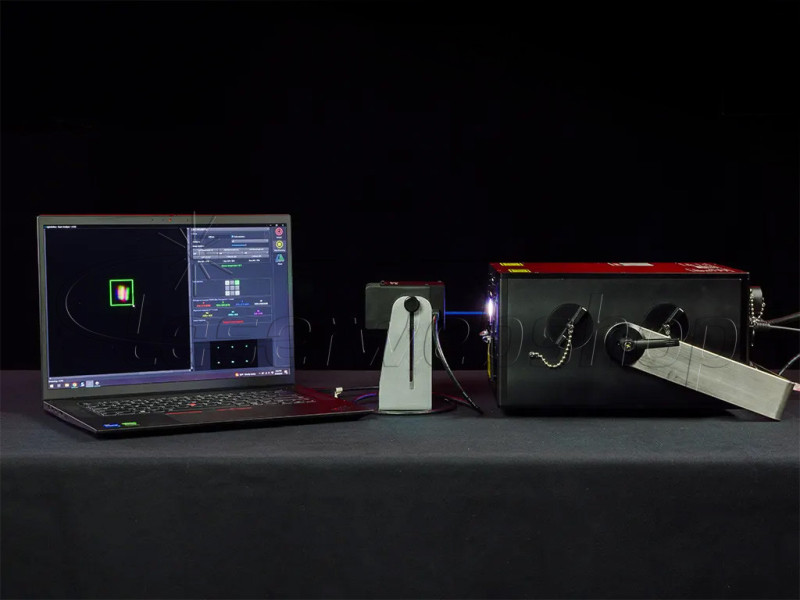

The included software allows users to perform live beam analysis, optimize RGB alignment, and carry out professional-quality measurements while calibrating laser systems. Perfect for laser professionals, AV technicians, industrial environments, and advanced laser show productions.
Latest software version can be found here.
