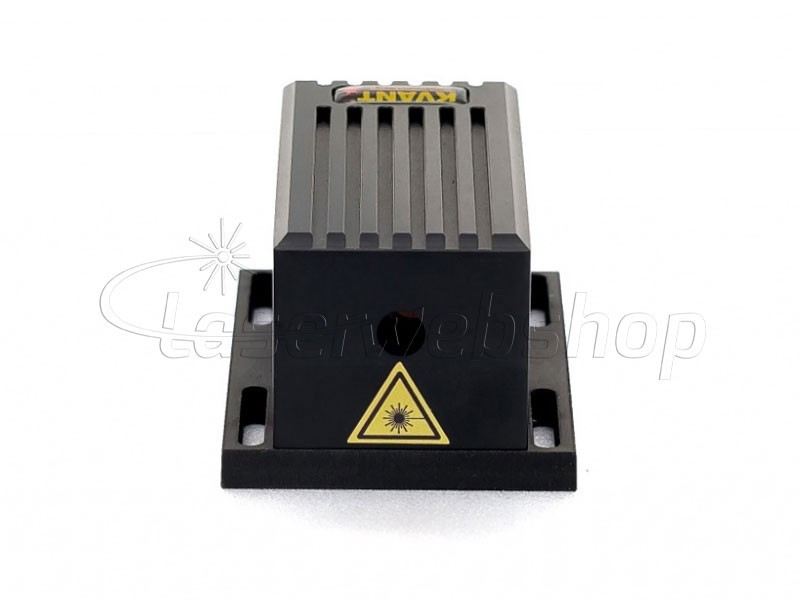

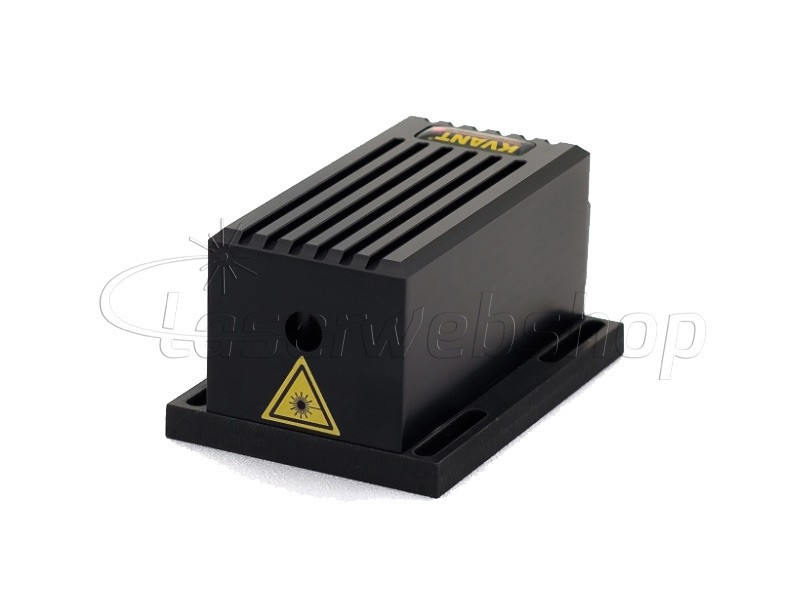

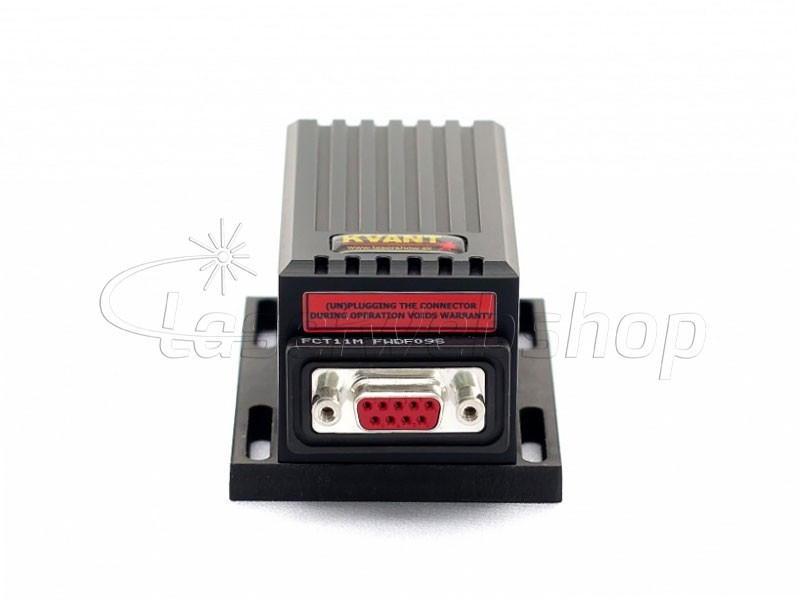

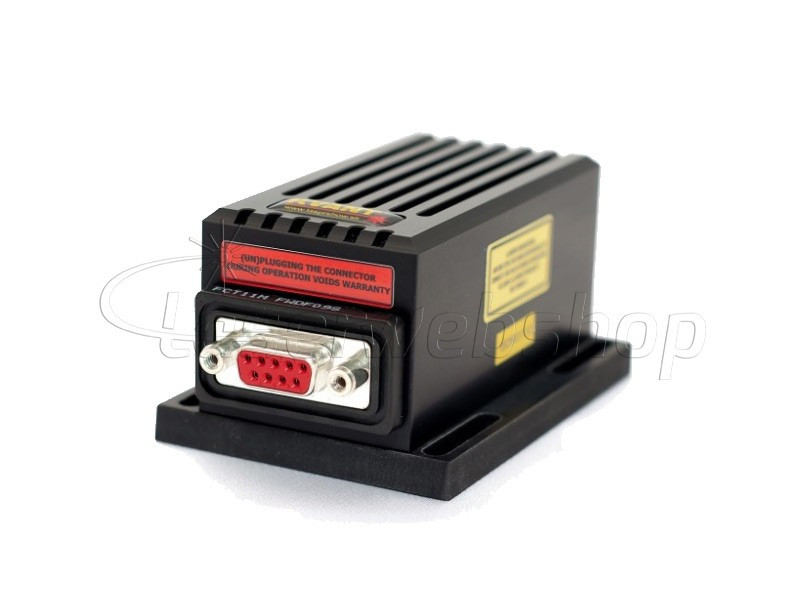

220mW Green Mini
Green laser module with a wavelength of 520nm and an output power of 220mW.
Reference:
LMKVT-G520W22M
Compare0
Wishlist
Brand:
LMKVT-G520W22M
Data sheet
- Laser Output Power
- 220mW
- Wavelength
- 520nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 1.5 / 4.5mm
- Beam Divergence (Half Angle)
- 0.4 / 0.3mrad
- Linear Polarization
- No
- M^2 (H/V)
- 2 / 2
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 0.5A (24V)
- Power Consumption TEC
- 1.5A (24V)
- Input Voltage
- 24V

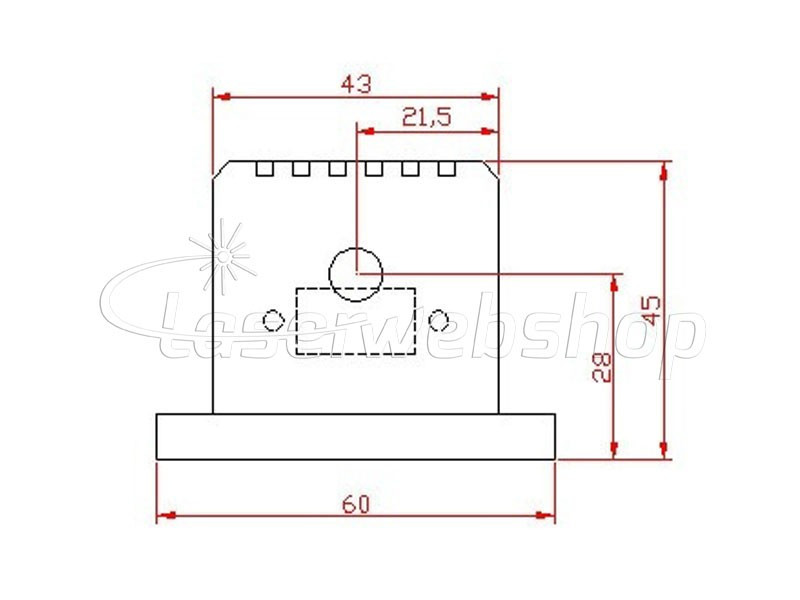

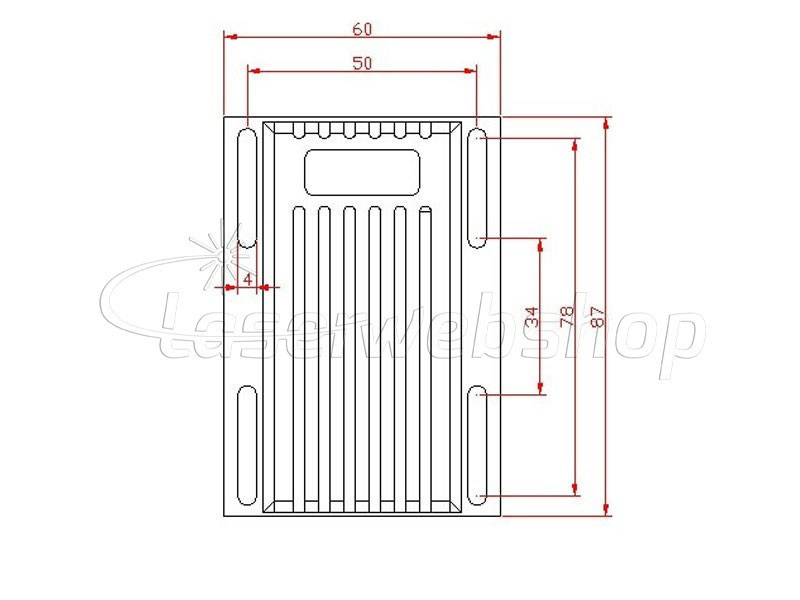

- Module Dimensions (LxWxH)
- 87x60x45mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
