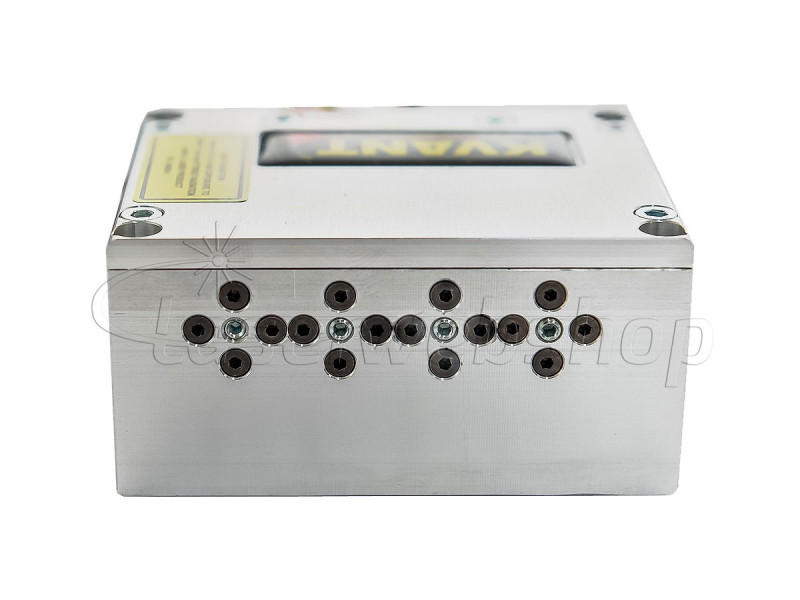

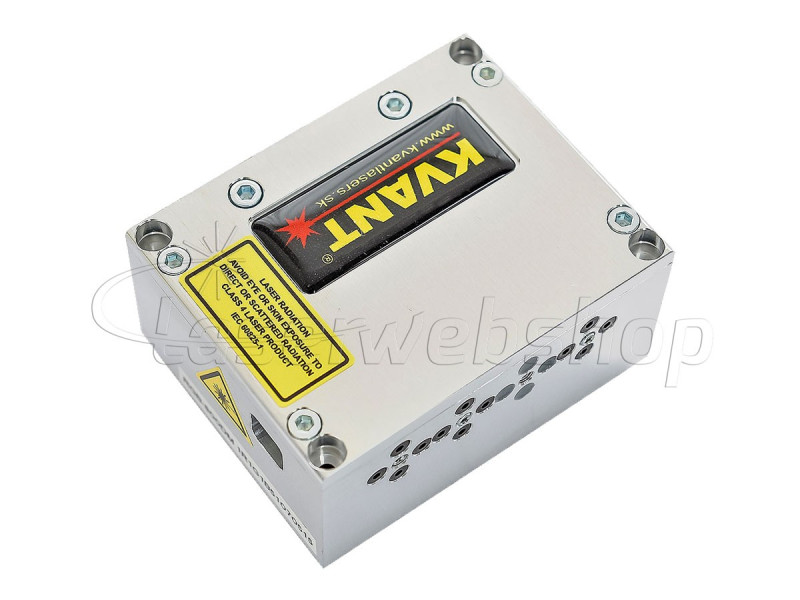

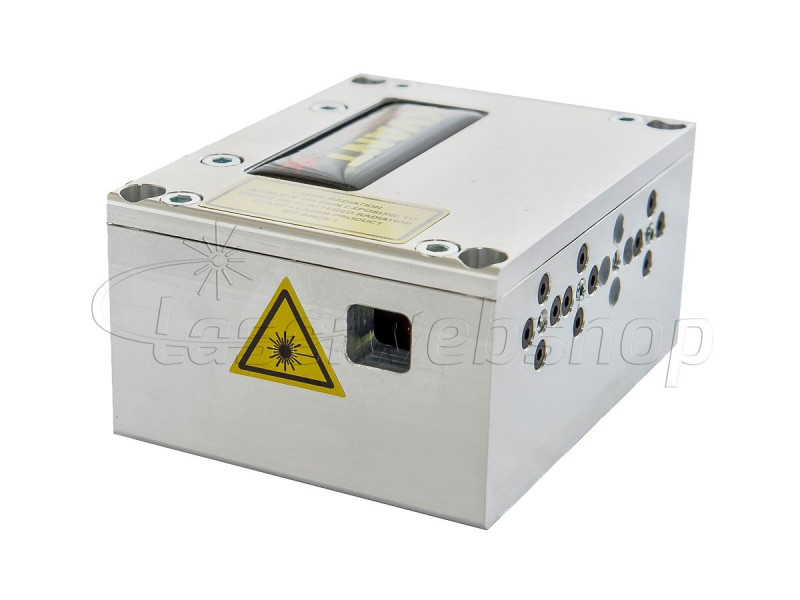

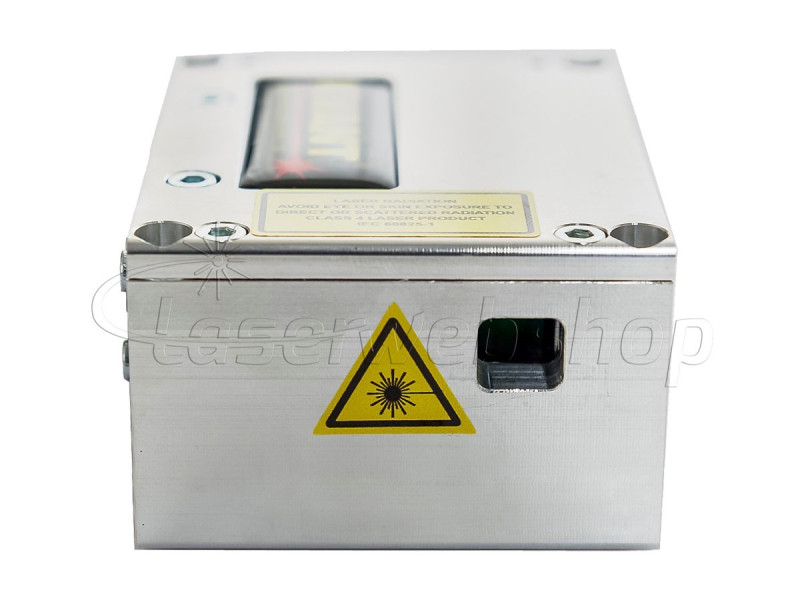

Full Color 1800mW
Full Color laser module with a combined wavelength of 445nm, 520nm and 637nm and an output power of 1.8W.
Reference:
LMKVT-F1W8
Compare0
Wishlist
Brand:
LMKVT-F1W8
Data sheet
- Laser Output Power
- 1.500mW
- Red Output Power
- 340mW
- Green Output Power
- 200mW
- Blue Output Power
- 1000mW
- Wavelength
- 637+520+445nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 4.0 / 4.5mm
- Beam Divergence (Half Angle)
- 0.6 / 0.3mrad
- Linear Polarization
- No
- Modulation Frequency
- 50kHz
- Power Consumption LD
- 2.0A (24V)
- Power Consumption TEC
- 2.0A (24V)
- Input Voltage
- 24V
- Module Dimensions (LxWxH)
- 132x77x51mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
