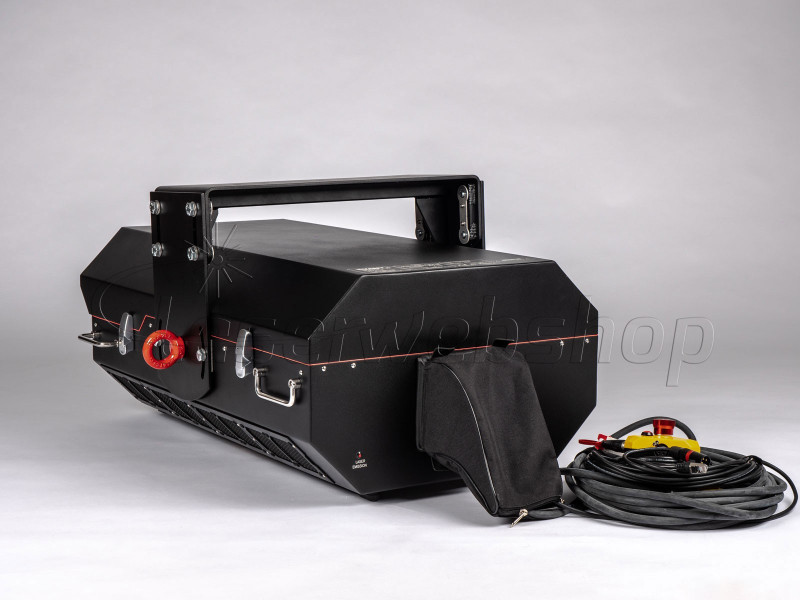

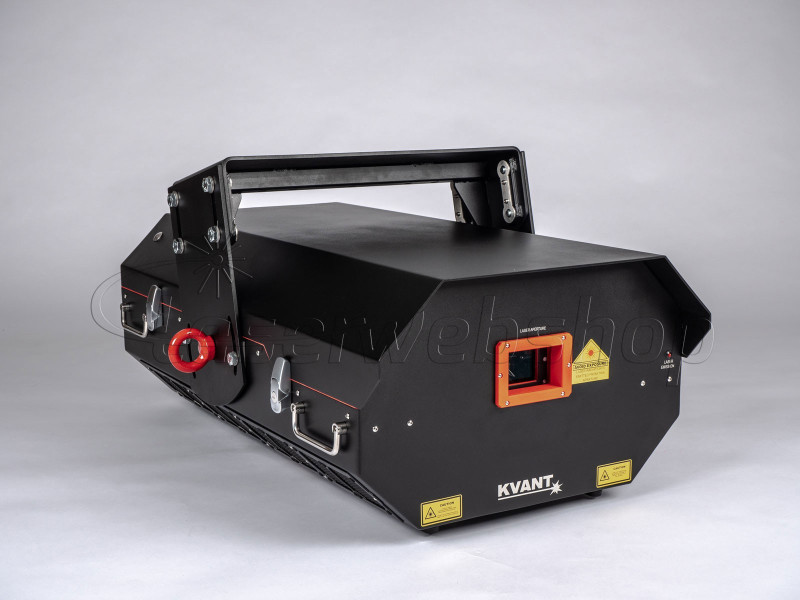

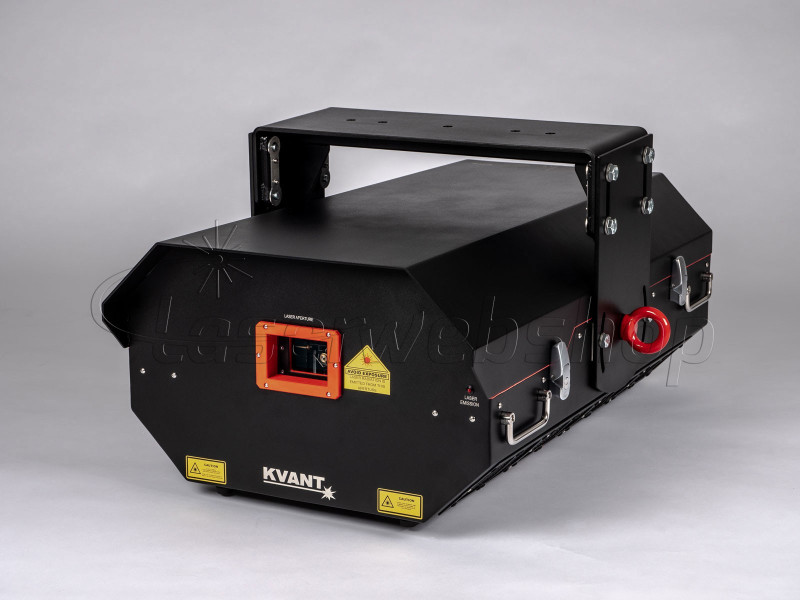

LPKVT-EP170
Data sheet
- Total Optical Output
- 170.000mW
- Scanning Speed
- Juno 5 - 20kpps max 40°
- Red Laser Module
- 30.000mW - 638nm
- Green Laser Module
- 60.000mW - 525nm
- Blue Laser Module
- 80.000mW - 465nm
- Beam Diameter
- 10.0x12.0mm
- Divergence
- ˂ 1.1mrad, full angle
- Analog Modulation
- 0-5V - 100kHz
- Power Consumption
- ˂ 1800VA
- Operating Temperature
- 10-35 °C
- Weight
- 89kg
- Dimensions (LxWxH)
- 876x500x315mm
