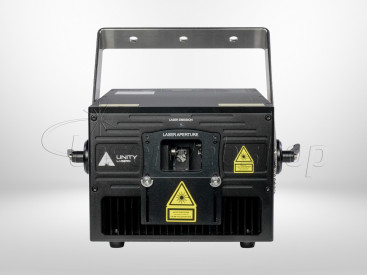

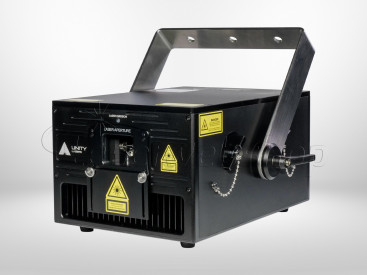

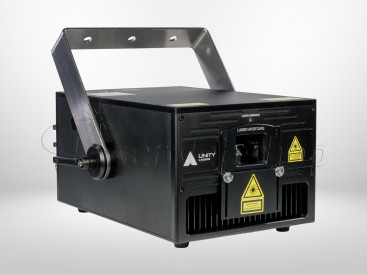

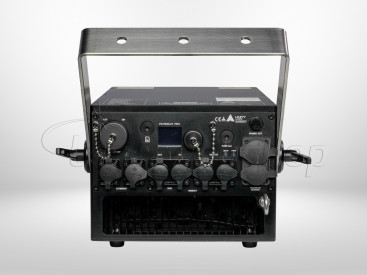

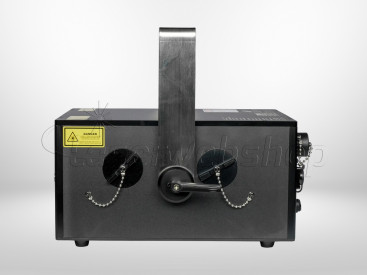

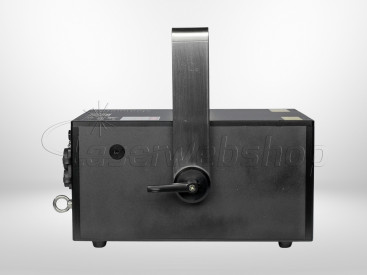

Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Elite Pro FB4 20 IP65
Unity - Elite Pro 10-40W Power Comparison Unity Elite PRO 10-40W

Elite Pro FB4 20 IP65

Elite Pro FB4 10 IP65
Elite Pro FB4 30 IP65
$7,302.89
Delivery time around 2 weeks
Reference:
LPUNI-ELITEPRO20
Compare0
Wishlist
QR code
Share
Brand:
Unity Lasers
Related Products
Product Details
LPUNI-ELITEPRO20

Data sheet

Total Optical Output
20.000mW
Scanning Speed
35kpps@8°
Red Laser Module
6.400mW - 638nm
Green Laser Module
6.400mW - 525nm
Blue Laser Module
8.000mW - 450nm
Beam Diameter
6.0x6.0mm
Divergence
˂ 1.2mrad, full angle
Analog Modulation
0-5V - 100kHz
Power Consumption
˂ 400W
Operating Temperature
-10-45 °C
IP Rating
IP65
Weight
15.5kg
Dimensions (LxWxH)
385x338x191mm
Downloads
Unity QuickStart Guide
Download (428.49KB)
User Manual - Elite PRO 10-120W
Download (3.72MB)
Tech Drawing - Elite PRO FB4 20W
Download (137.75KB)
