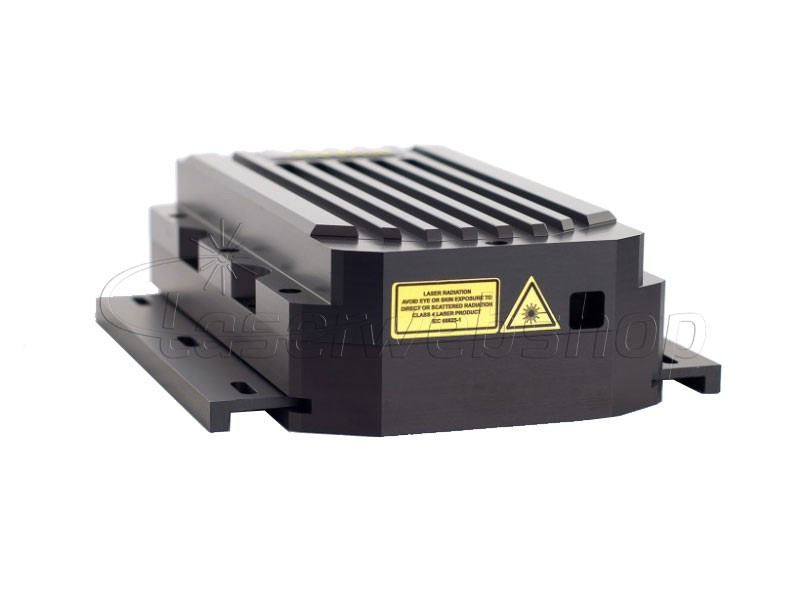

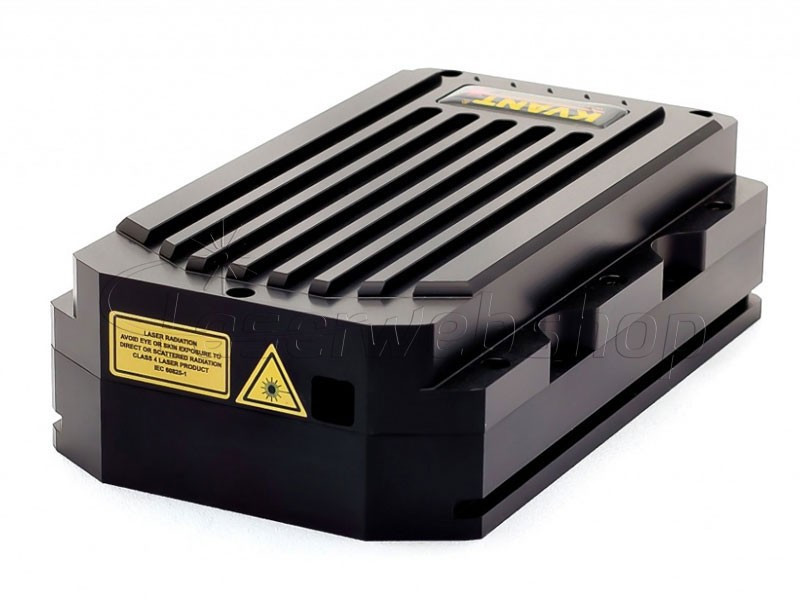

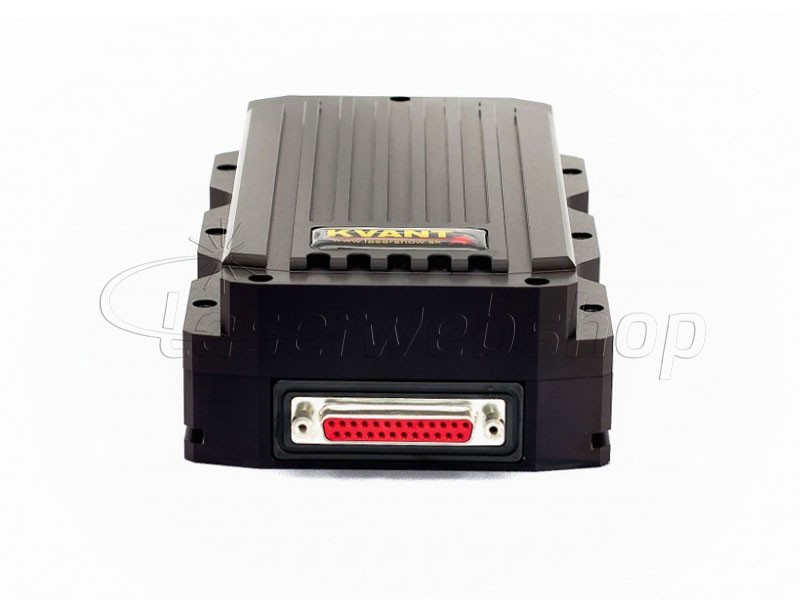

4W Combo Blue
Blue laser module with a combined wavelength of 445nm and 460nm and an output power of 4W.
Reference:
LMKVT-CB4W
Compare0
Wishlist
Brand:
LMKVT-CB4W
Data sheet
- Laser Output Power
- 4.000mW
- Wavelength
- 445+460nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 3.0 / 3.0mm
- Beam Divergence (Half Angle)
- 0.4 / 0.3mrad
- Linear Polarization
- No
- M^2 (H/V)
- 4 / 3
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 2.0A (24V)
- Power Consumption TEC
- 6.0A (24V)
- Input Voltage
- 24V

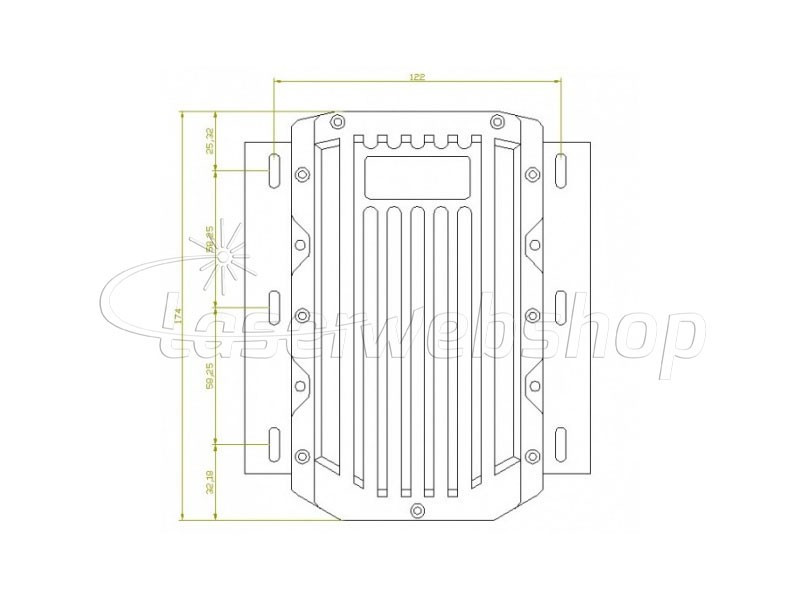

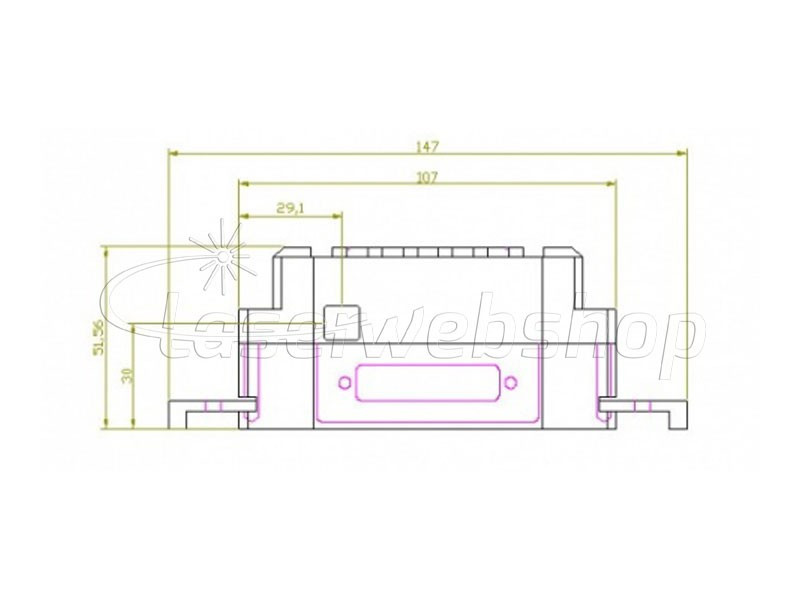

- Module Dimensions (LxWxH)
- 174x107x51mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
