30W Blue

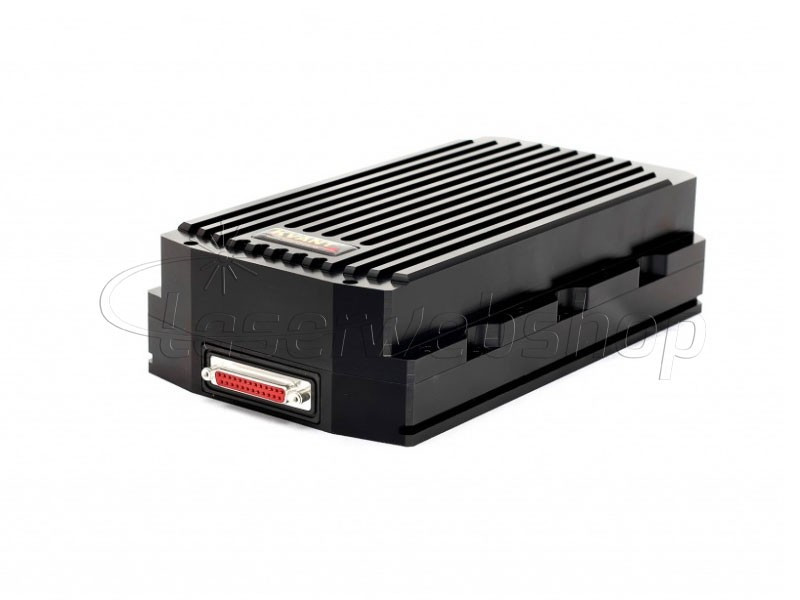

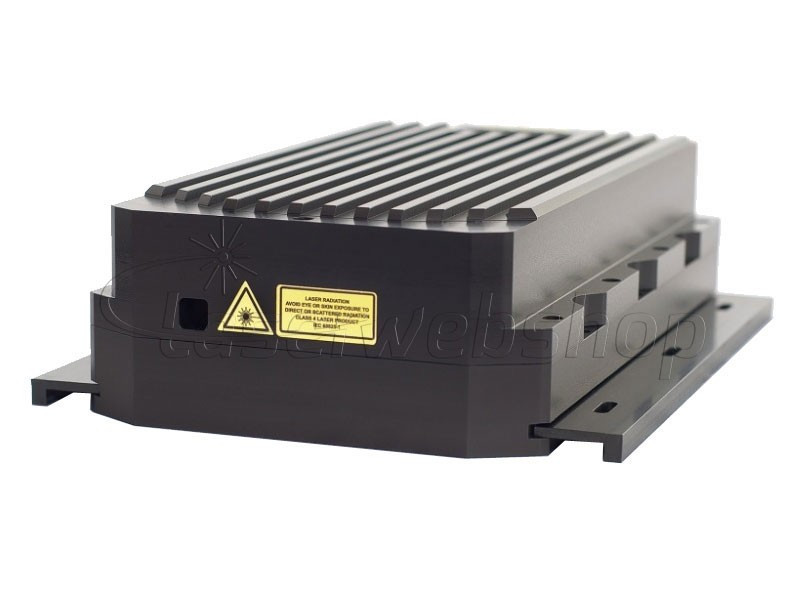

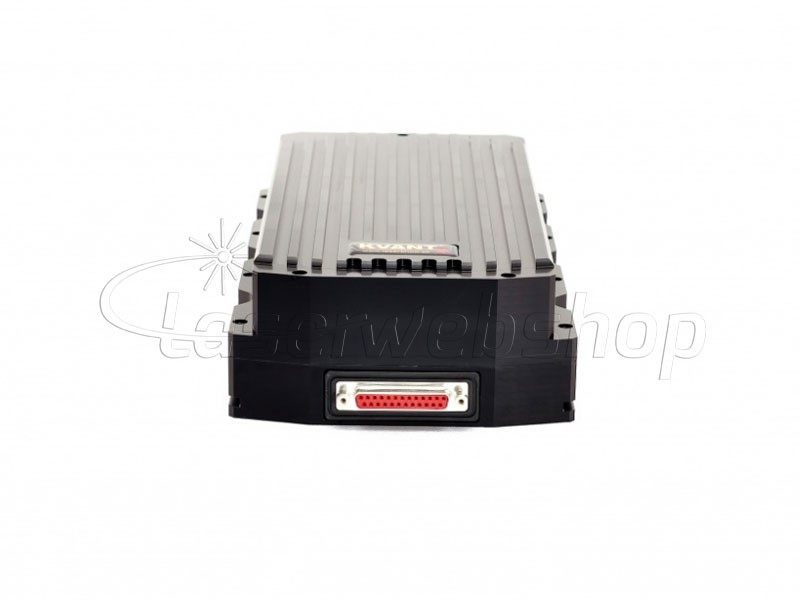

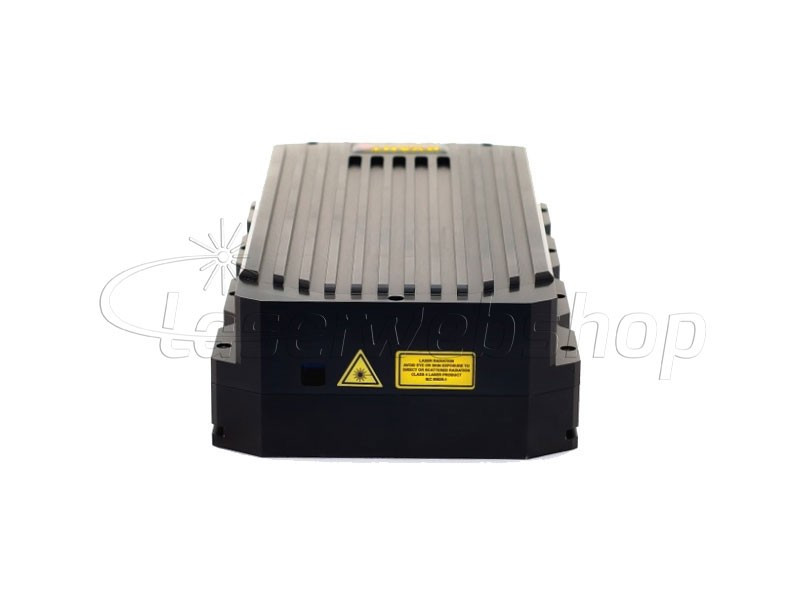

Blue laser module with a wavelength of 445nm and an output power of 30W.
Reference:
LMKVT-B30W
Compare0
Wishlist
Brand:
LMKVT-B30W
Data sheet
- Laser Output Power
- 30.000mW
- Wavelength
- 445nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 12.0 / 10.0mm
- Beam Divergence (Half Angle)
- 1.1 / 0.3mrad
- Linear Polarization
- No
- M^2 (H/V)
- 35 / 11
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 9.0A (24V)
- Power Consumption TEC
- 25.0A (24V)
- Input Voltage
- 24V

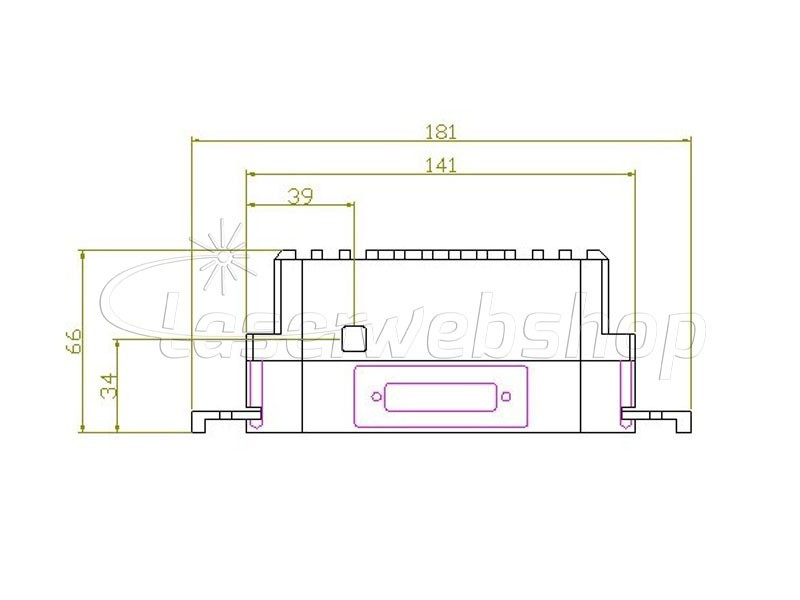

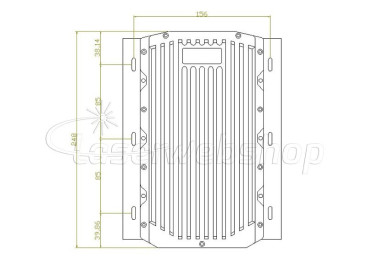

- Module Dimensions (LxWxH)
- 248x141x66mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
