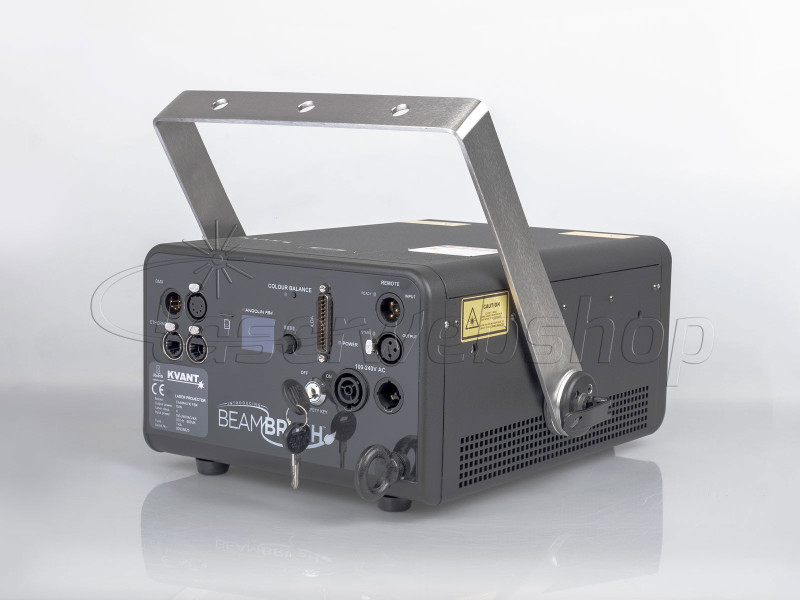

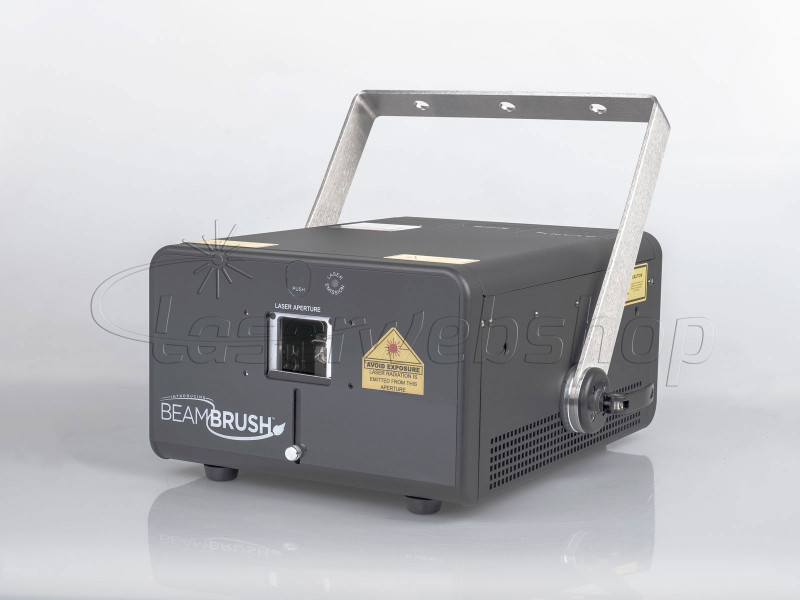

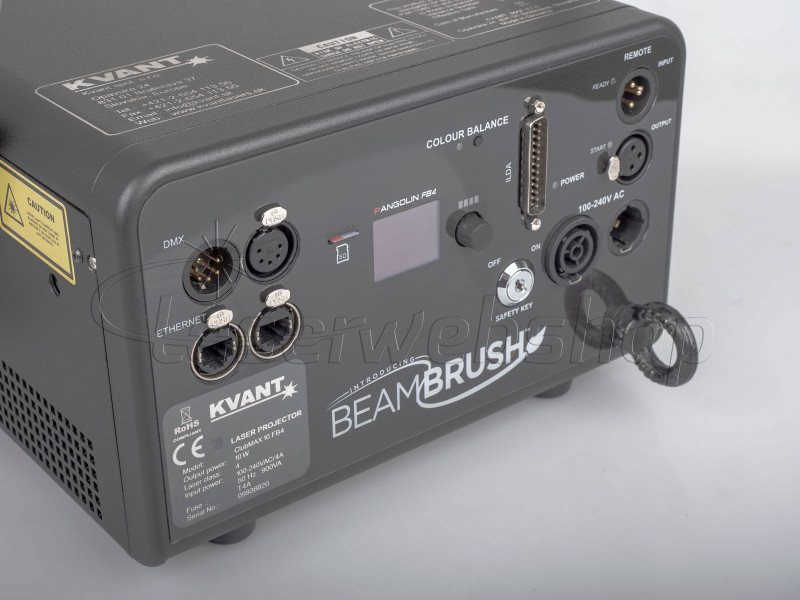

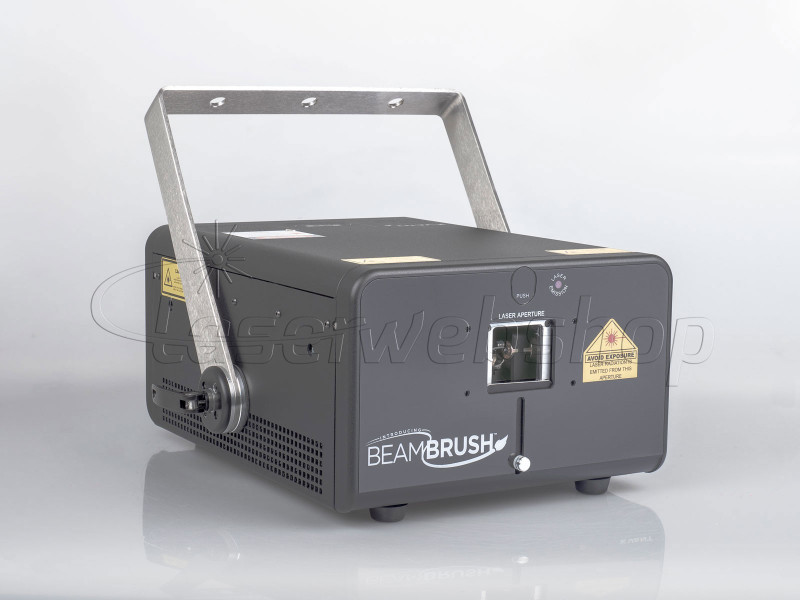

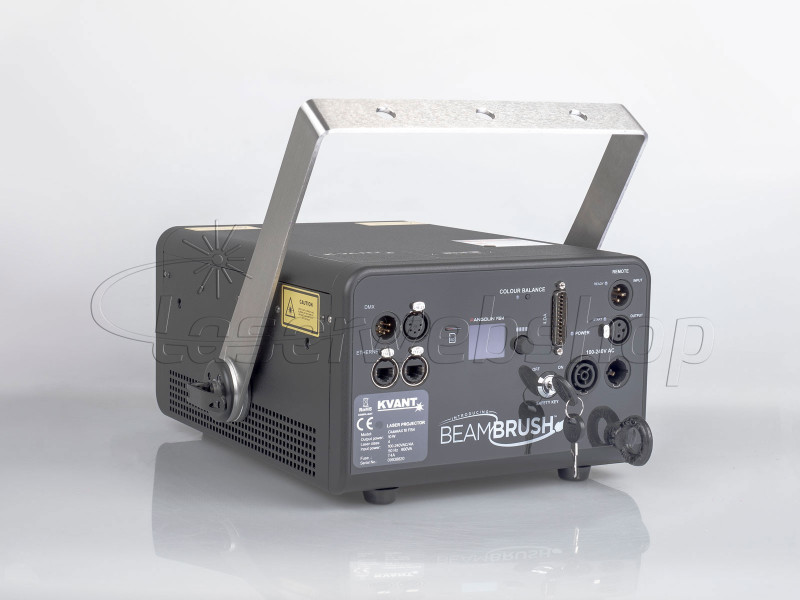

BeamBrush 10
$19,589.48
BeamBrush 10
Brand:
LPKVT-BBR10
Data sheet
- Total Optical Output
- 9.100mW
- Scanning Speed
- Multiple options
- Red Laser Module
- 2.200mW - 637nm
- Green Laser Module
- 3.500mW - 525nm
- Blue Laser Module
- 4.500mW - 445nm
- Beam Diameter
- 5.0x5.0mm
- Divergence
- ˂ 0.8mrad, full angle
- Analog Modulation
- 0-5V - 100kHz
- Power Consumption
- ˂ 340VA
- Operating Temperature
- 10-40 °C
- IP Rating
- IP20
- Weight
- 13kg
- Dimensions (LxWxH)
- 353x339x168mm
