50mW Yellow 561nm

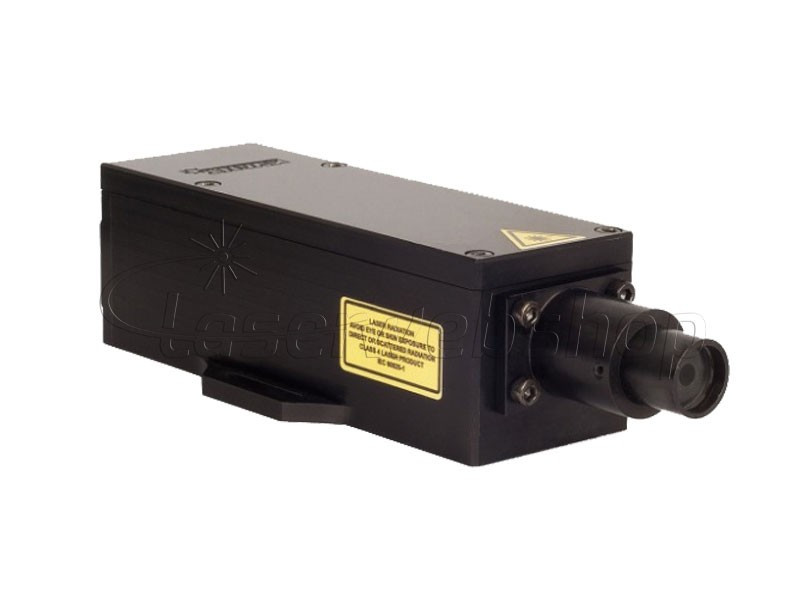

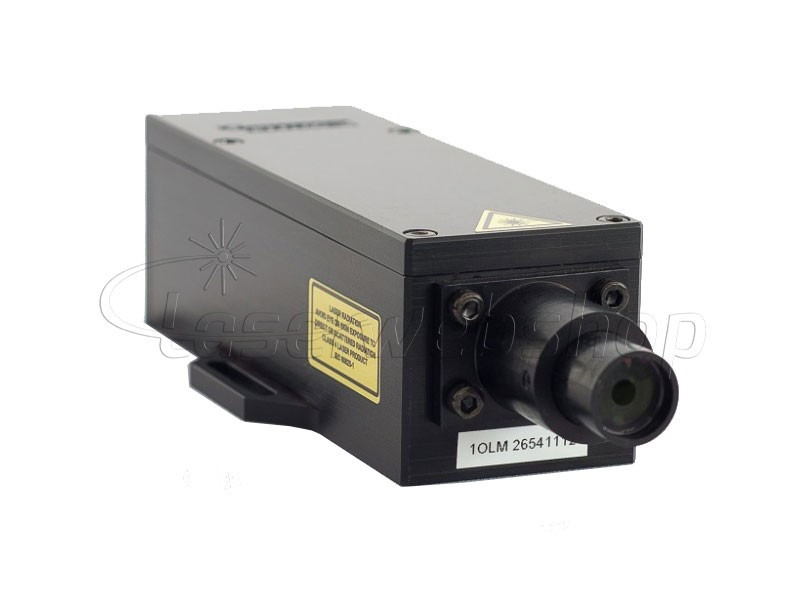

BDPSS laser module with a wavelength of 561nm and an output power of 50mW.
Reference:
LMKVT-DP561W05
Compare0
Wishlist
Brand:
LMKVT-DP561W05
Data sheet
- Laser Output Power
- 50mW
- Wavelength
- 561nm
- Wavelength Torlerance
- +/-1nm
- Beam Diameter (1/e^2)
- 3.0mm
- Beam Divergence (Half Angle)
- 0.2mrad
- Linear Polarization
- Yes
- M^2
- +/-1.1
- Modulation Frequency
- Contact
- Peak Power Consumption
- 2.5A (24V)
- Input Voltage
- 24V
- Module Dimensions (LxWxH)
- 120x59x40mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
