500mW Deep Red

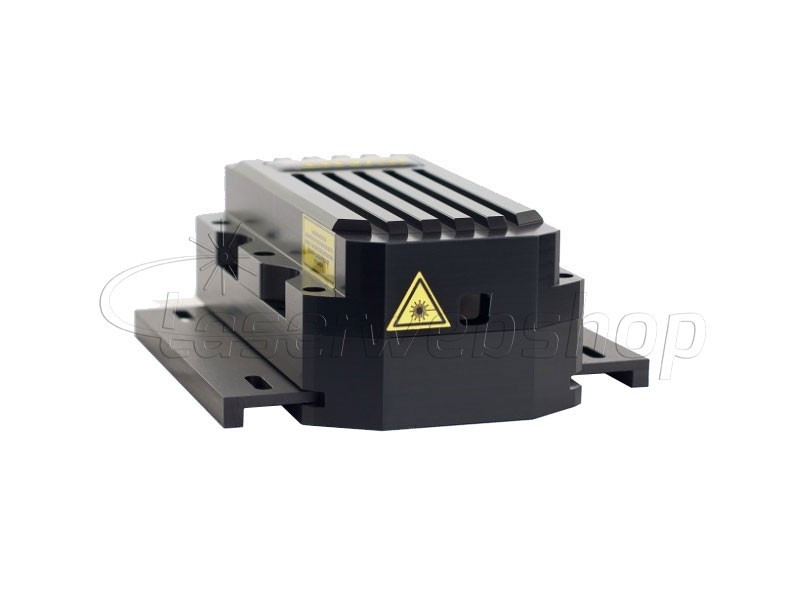

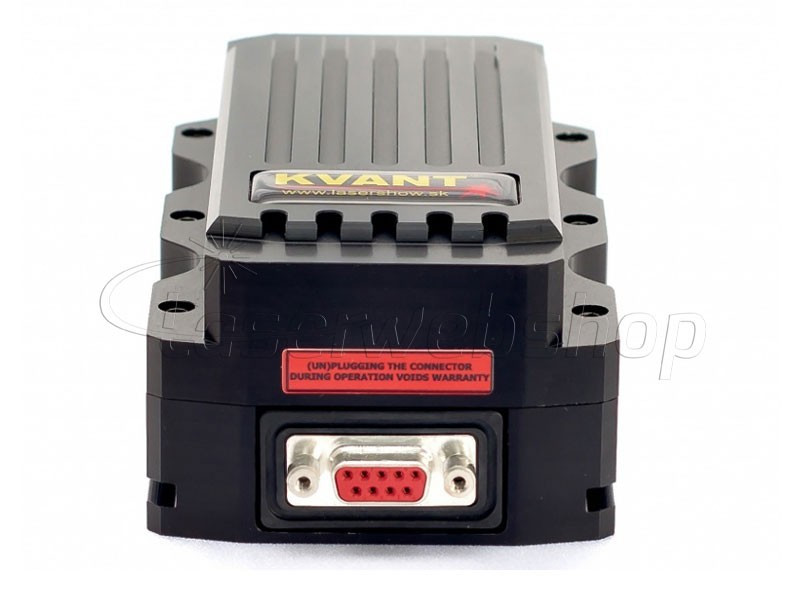

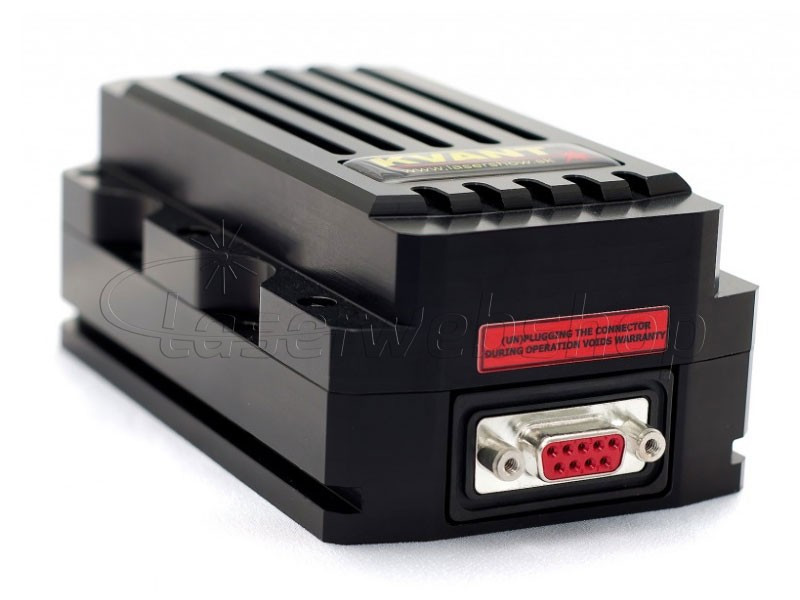

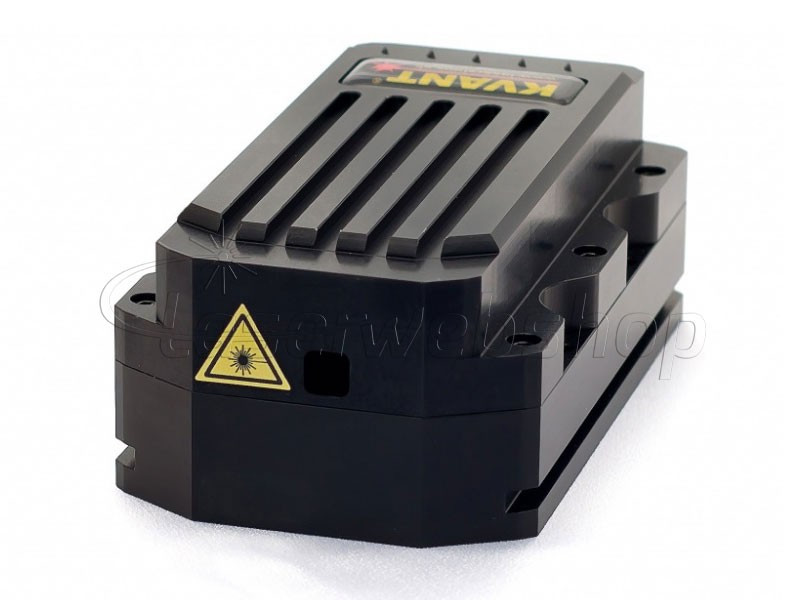

Deep Red laser module with a wavelength of 660nm and an output power of 500mW.
Reference:
LMKVT-DRW5
Compare0
Wishlist
Brand:
LMKVT-DRW5
Data sheet
- Laser Output Power
- 500mW
- Wavelength
- 660nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 2.5 / 3.5mm
- Beam Divergence (Half Angle)
- 0.5mrad
- Linear Polarization
- Yes
- M^2 (H/V)
- 5 / 7
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 0.5A (24V)
- Power Consumption TEC
- 1.5A (24V)
- Input Voltage
- 12 or 24V

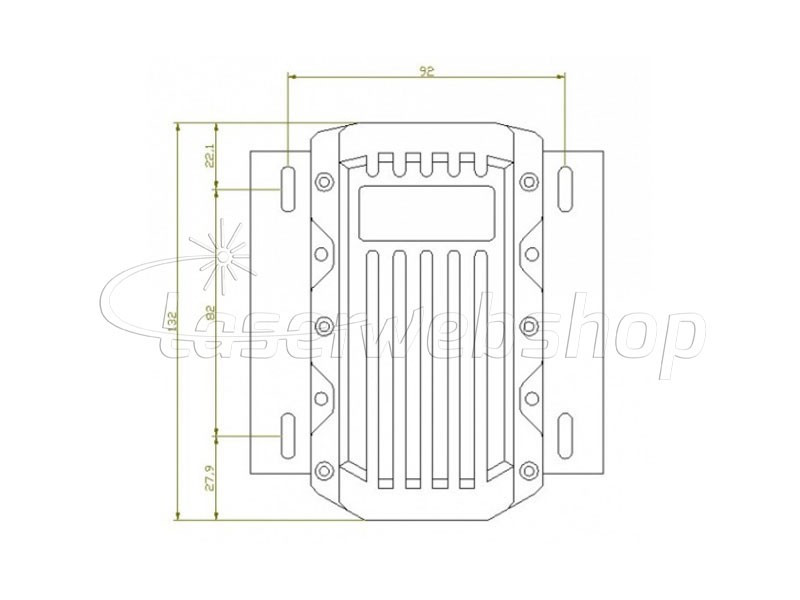

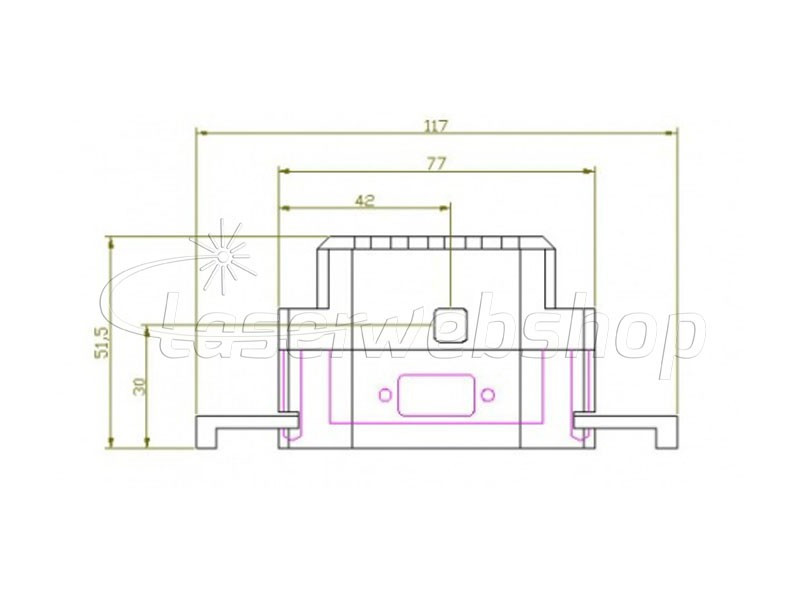

- Module Dimensions (LxWxH)
- 132x77x51mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
