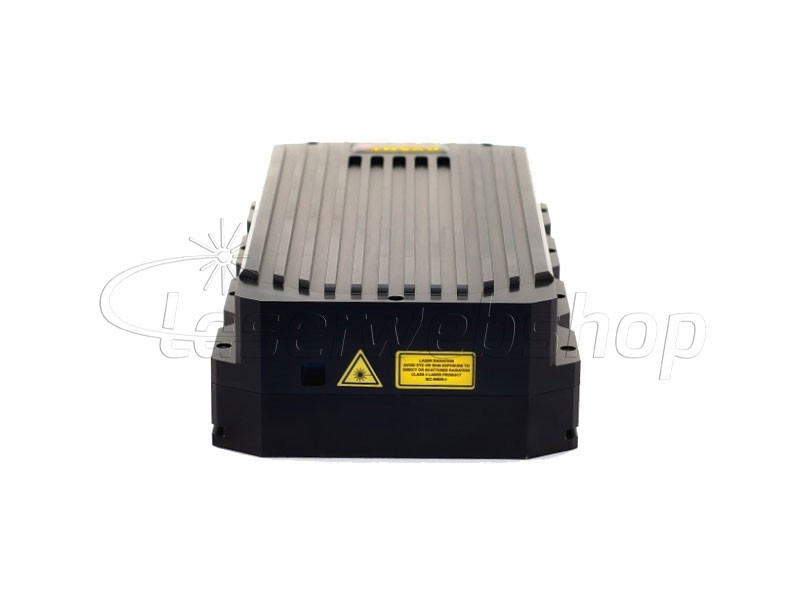

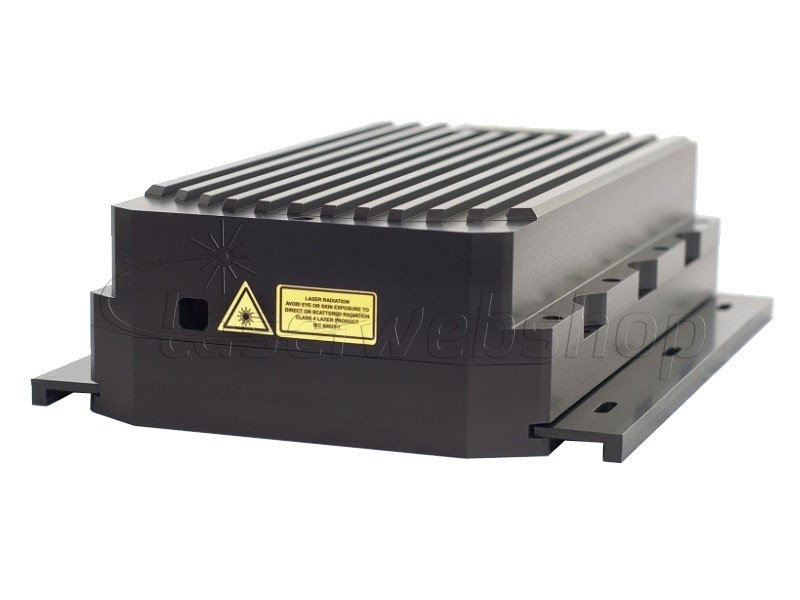

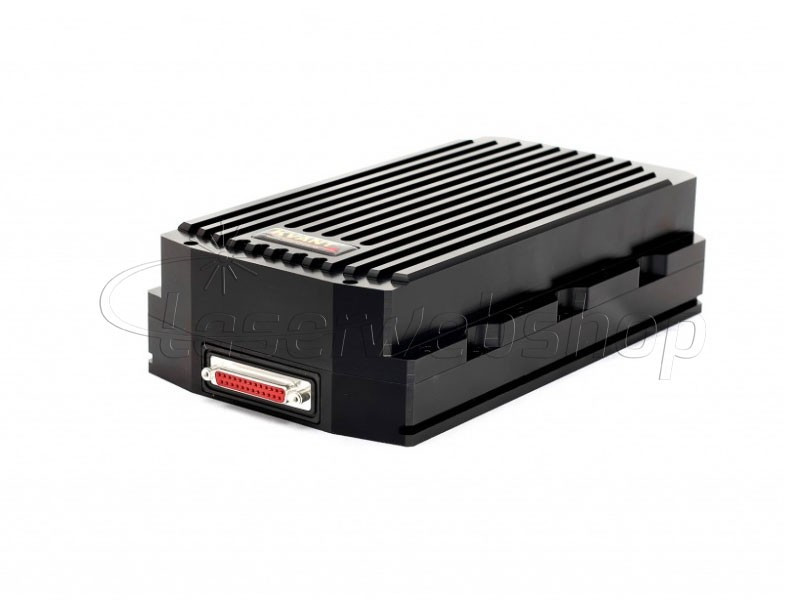

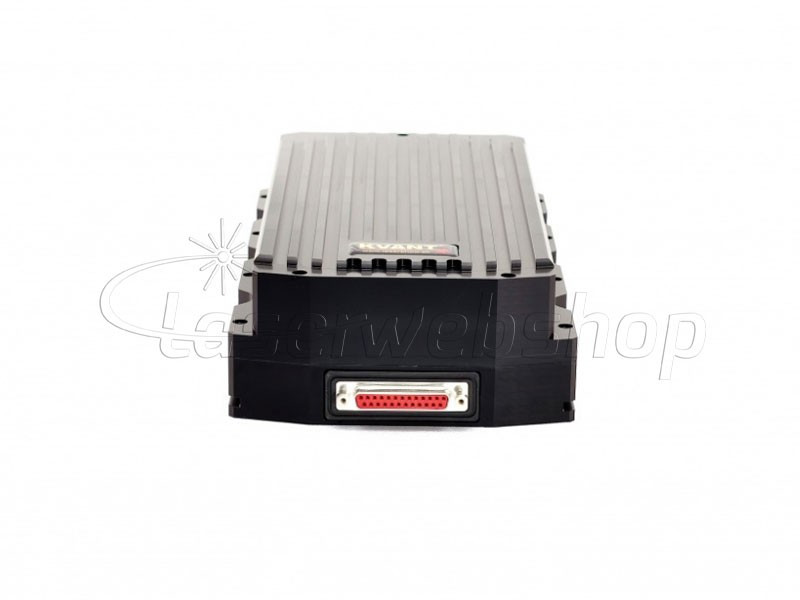

3W Red Low Divergence
Low divergence Red laser module with a wavelength of 637nm and 660nm combined and an output power of 3W.
Reference:
LMKVT-R3WLD
Compare0
Wishlist
Brand:
LMKVT-R3WLD
Data sheet
- Laser Output Power
- 3.000mW
- 637nm Output Power
- 1700mW
- 660nm Output Power
- 1300mW
- Wavelength
- 637+660nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 5.0 / 5.0mm
- Beam Divergence (Half Angle)
- 0.2mrad
- Linear Polarization
- No
- M^2 (H/V)
- 3 / 3
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 2.0A (24V)
- Power Consumption TEC
- 6.0A (24V)
- Input Voltage
- 24V

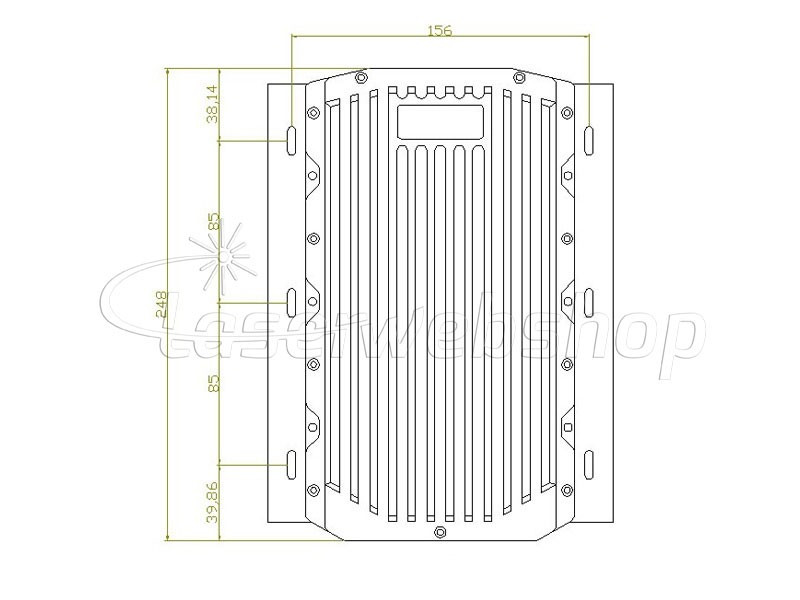

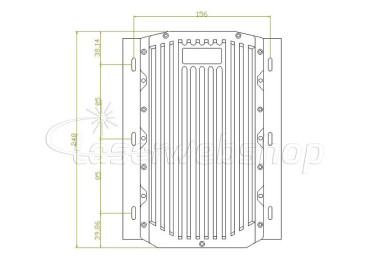

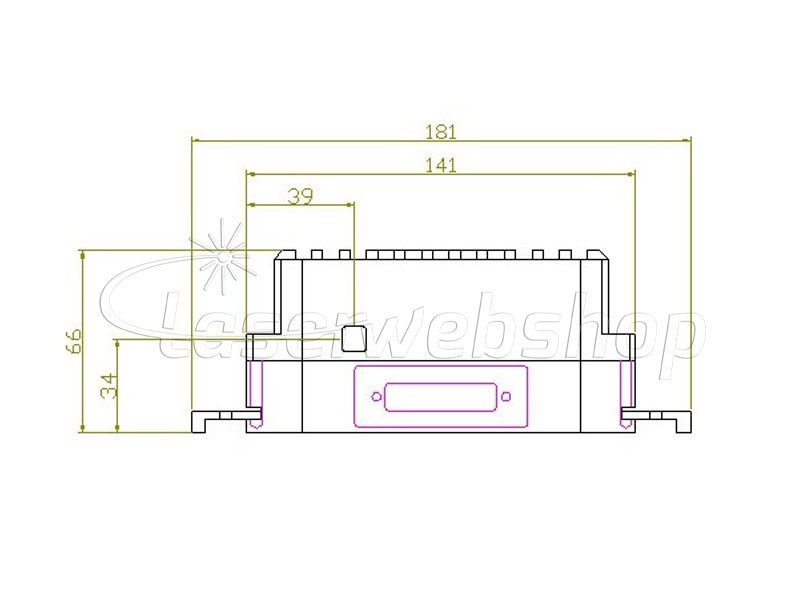

- Module Dimensions (LxWxH)
- 248x141x66mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
