3W Bright Red
Bright Red laser module with a wavelength of 637nm and an output power of 3W.
Reference:
LMKVT-BR3W
Compare0
Wishlist
Brand:
LMKVT-BR3W
Data sheet
- Laser Output Power
- 3.000mW
- Wavelength
- 637nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 5.0 / 3.5mm
- Beam Divergence (Half Angle)
- 0.5mrad
- Linear Polarization
- No
- M^2 (H/V)
- 9 / 7
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 1.0A (24V)
- Power Consumption TEC
- 6.0A (24V)
- Input Voltage
- 24V

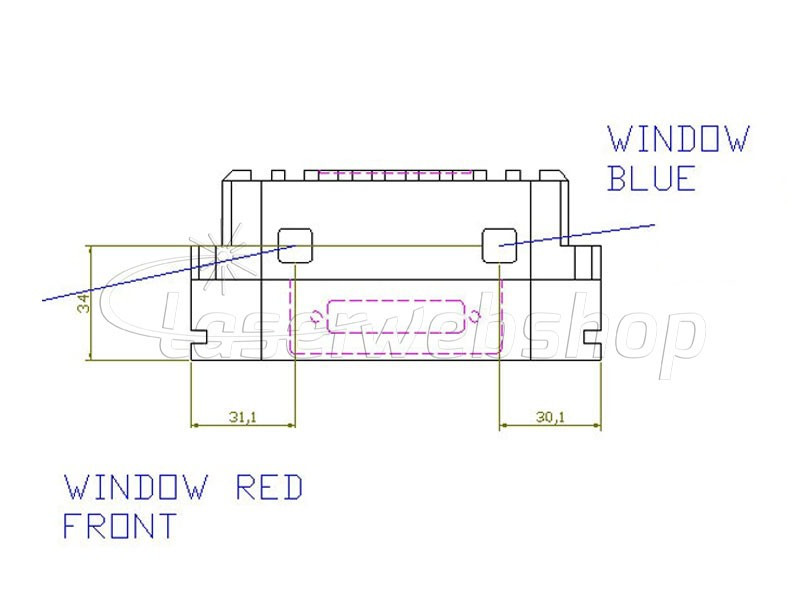

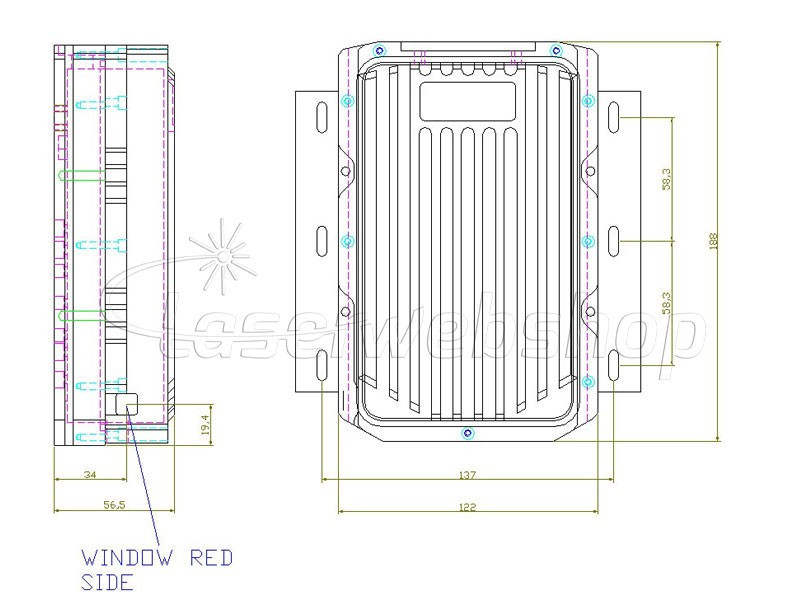

- Module Dimensions (LxWxH)
- 188x122x57mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
