340mW Bright Red

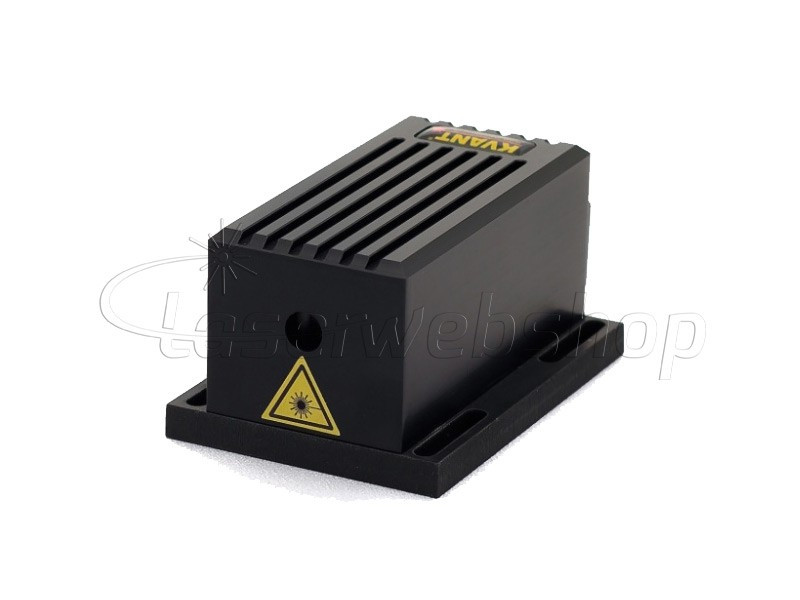

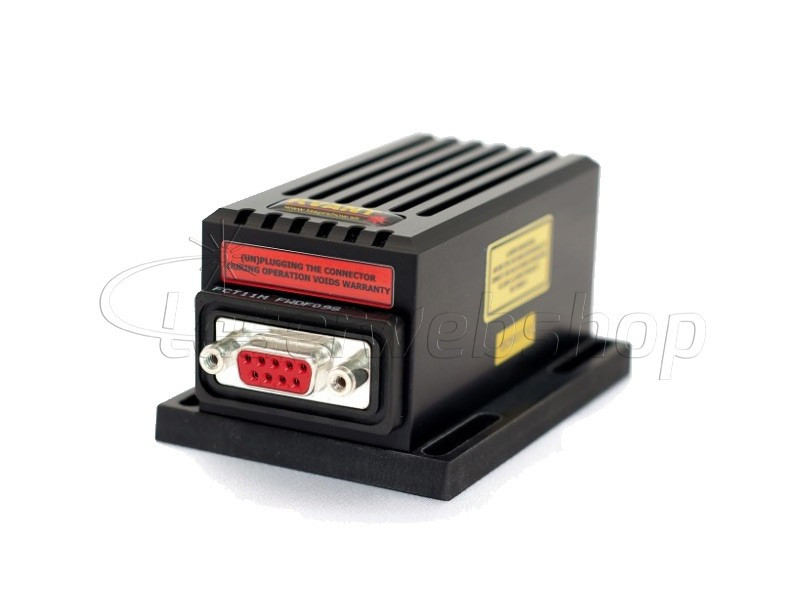

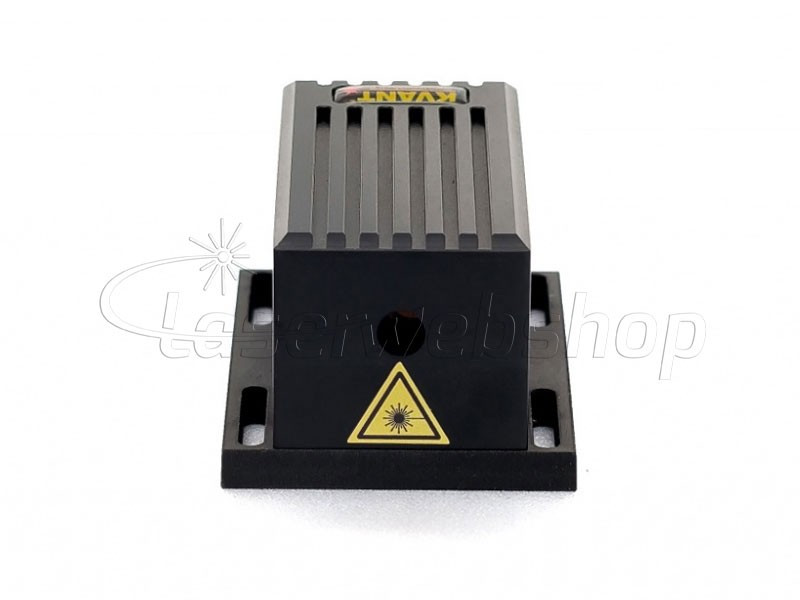

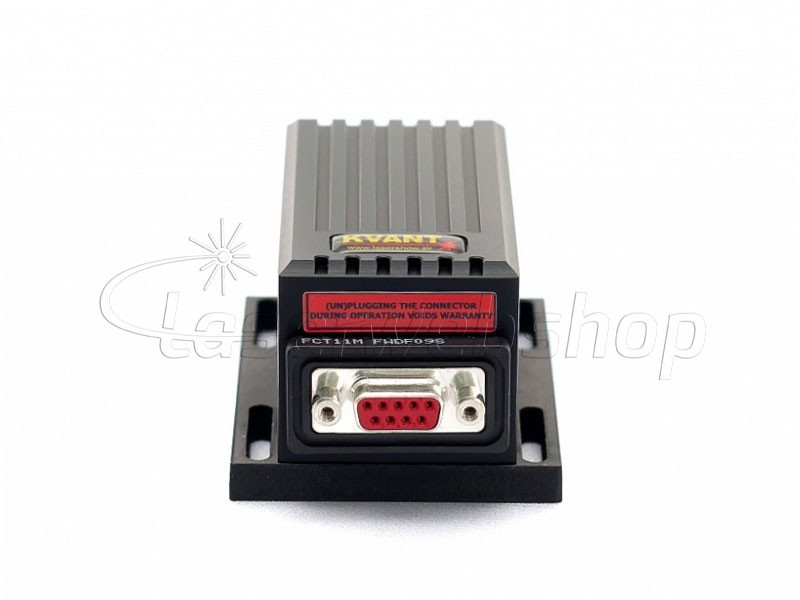

Bright Red laser module with a wavelength of 637nm and an output power of 340mW.
Reference:
LMKVT-BRW34
Compare0
Wishlist
Brand:
LMKVT-BRW34
Data sheet
- Laser Output Power
- 340mW
- Wavelength
- 637nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 3.0 / 3.0mm
- Beam Divergence (Half Angle)
- 0.2mrad
- Linear Polarization
- No
- M^2 (H/V)
- 2 / 2
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 0.5A (24V)
- Power Consumption TEC
- 1.5A (24V)
- Input Voltage
- 12 or 24V

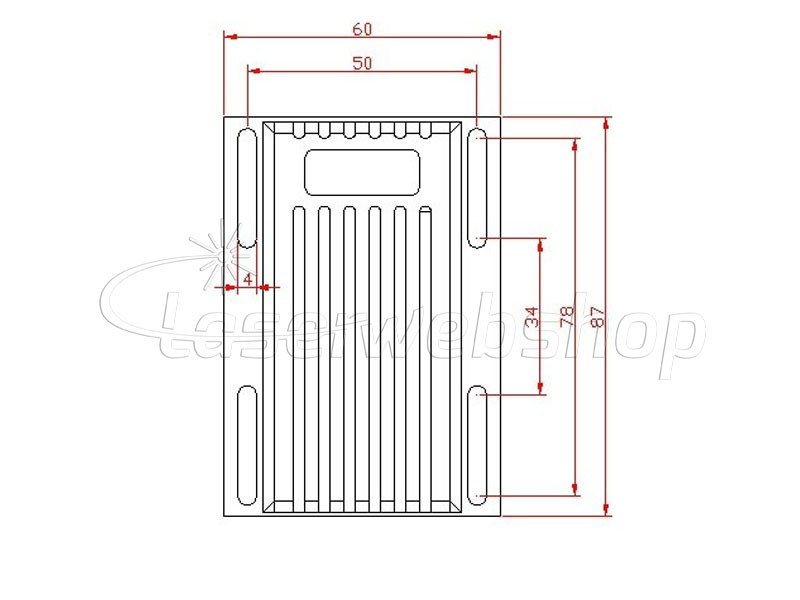

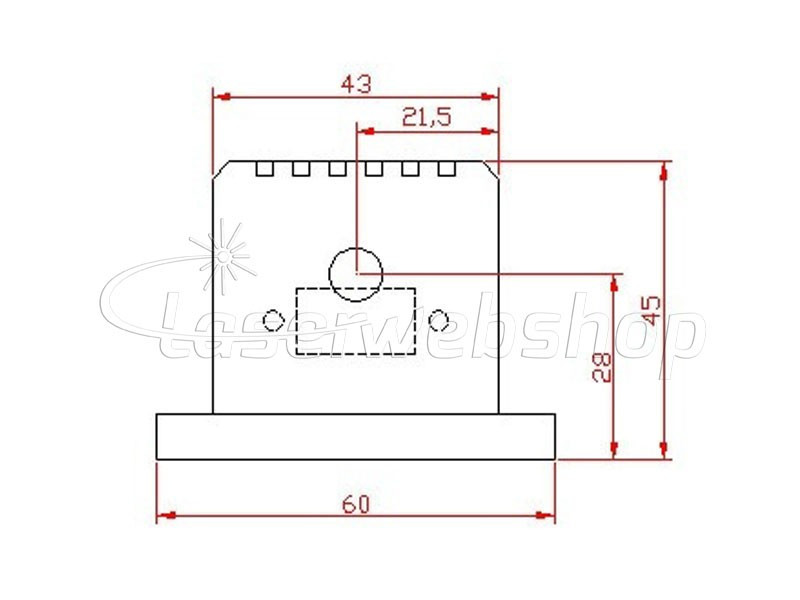

- Module Dimensions (LxWxH)
- 87x60x45mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
