BB MicroWheel Grating
€249.00
(tax incl.)

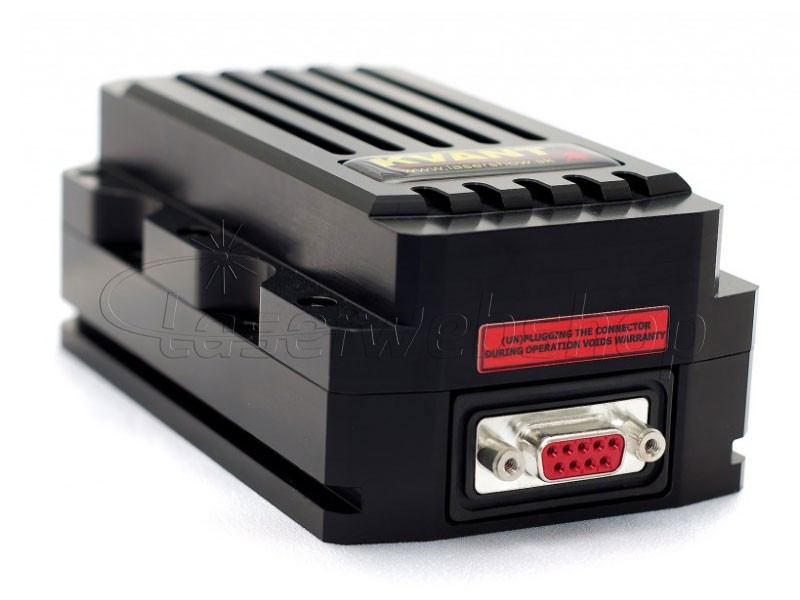

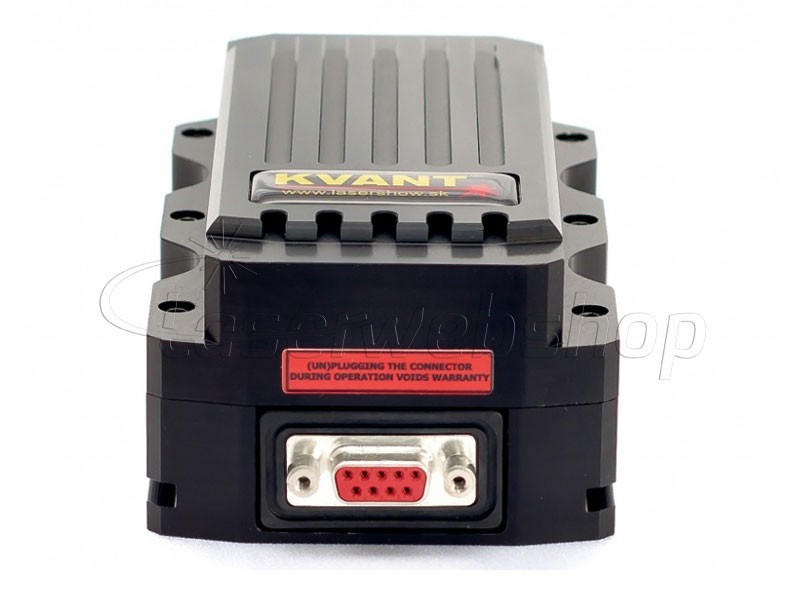

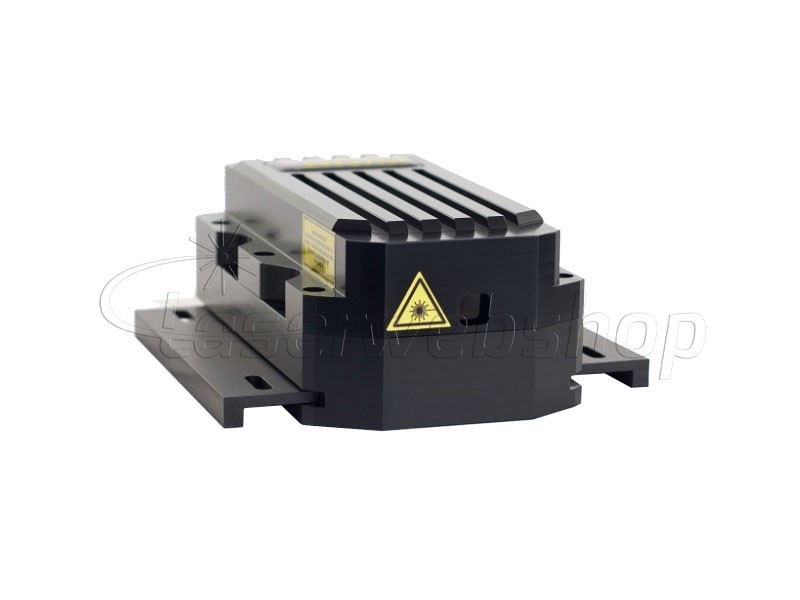

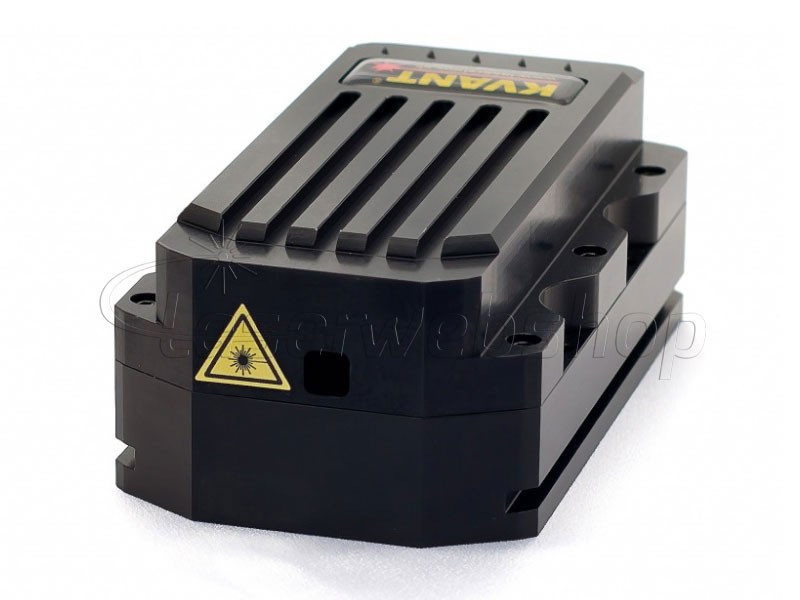

680mW Red + 1W Blue
Red with Blue laser module with a combined wavelength of 637nm and 445nm and an output power of 1.7W.
Reference:
LMKVT-RB1W7
Compare0
Wishlist
Brand:
LMKVT-RB1W7
Data sheet
- Laser Output Power
- 1.700mW
- Red Output Power
- 680mW
- Blue Output Power
- 1000mW
- Wavelength
- 637+445nm
- Wavelength Torlerance
- +/-5nm
- Beam Size FWHM (H/V)
- 3.0 / 4.5mm
- Beam Divergence (Half Angle)
- 0.7 / 0.5mrad
- Linear Polarization
- Yes
- Modulation Frequency
- 100kHz
- Power Consumption LD
- 1.5A (24V)
- Power Consumption TEC
- 1.5A (24V)
- Input Voltage
- 24V

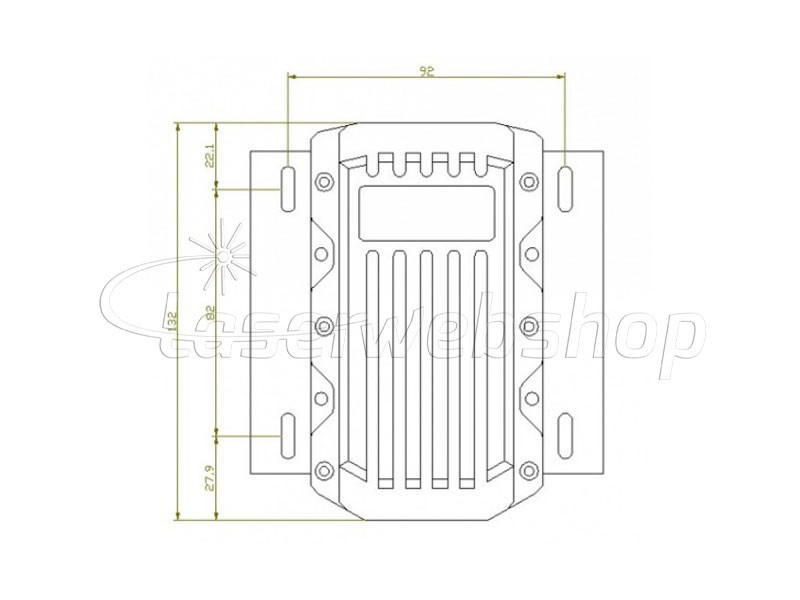

- Module Dimensions (LxWxH)
- 132x77x51mm
- Driver Dimensions (LxWxH)
- 117x89x34mm
