New product

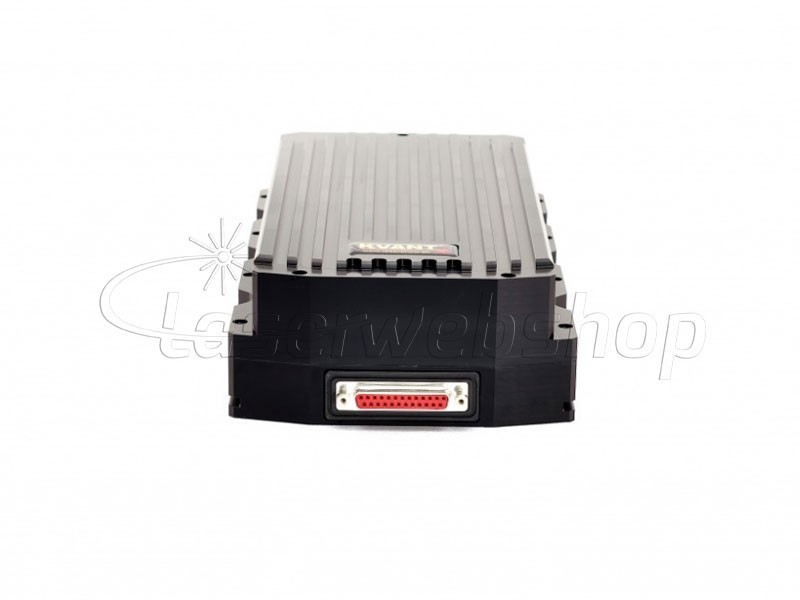

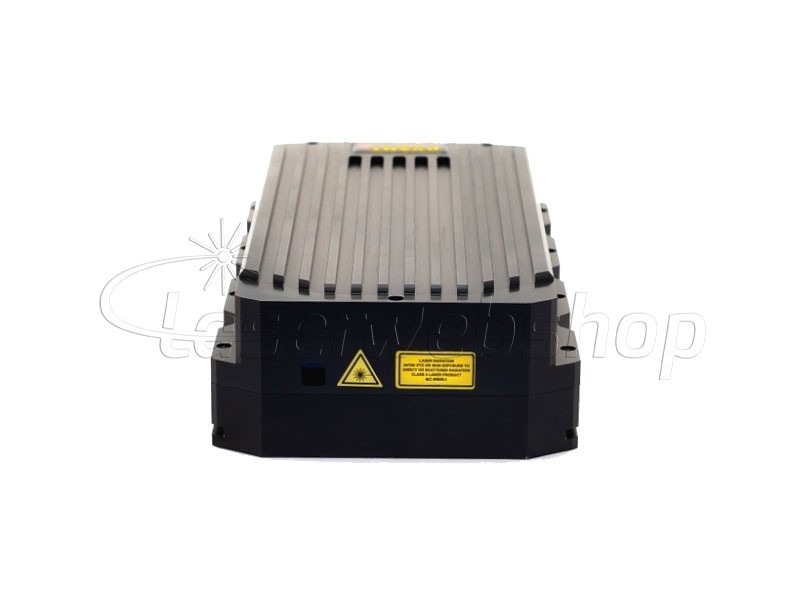

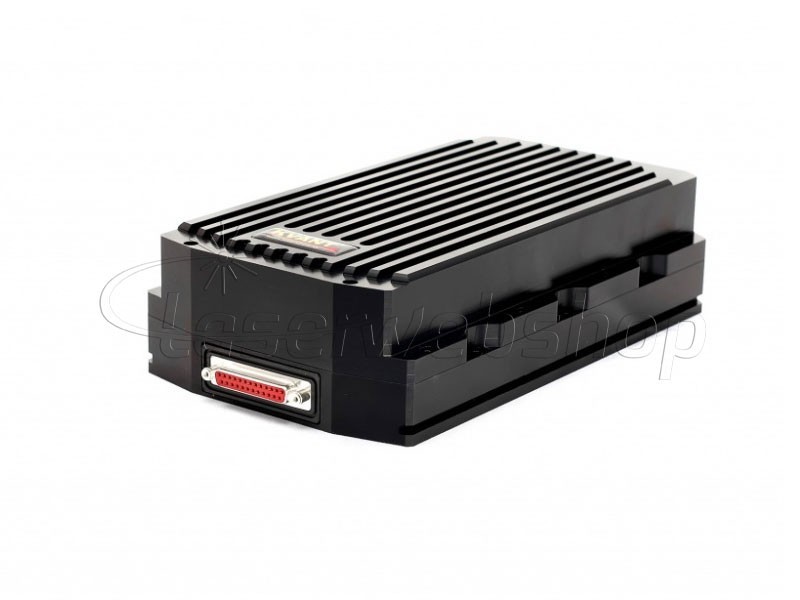

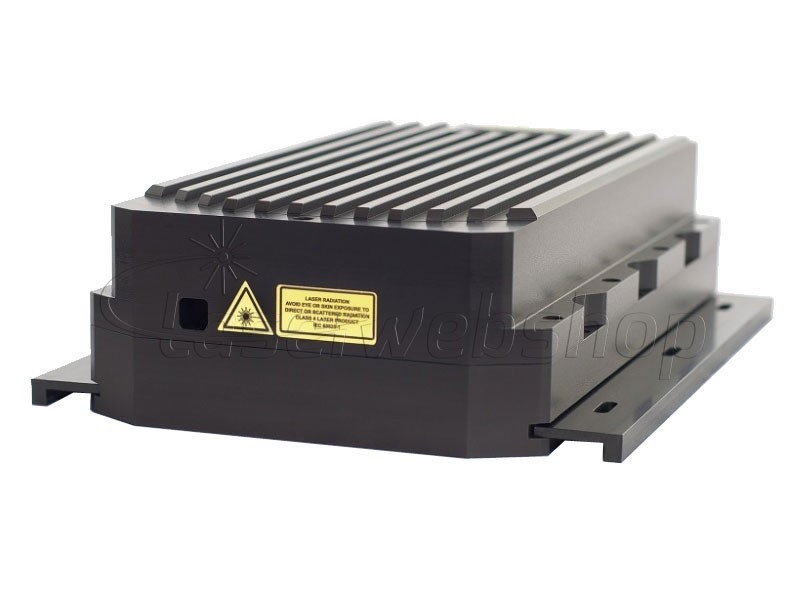

Green laser module with a wavelength of 520nm and an output power of 10W.
Laser Output Power | 10.000mW |
Wavelength | 520nm |
Wavelength Torlerance | +/-5nm |
Beam Size FWHM (H/V) | 6.5 / 5.5mm |
Beam Divergence (Half Angle) | 0.7 / 0.3mrad |
Linear Polarization | No |
M^2 (H/V) | 16 / 5 |
Modulation Frequency | 100kHz |
Power Consumption LD | 6.0A (24V) |
Power Consumption TEC | 12.0A (24V) |
Input Voltage | 24V |

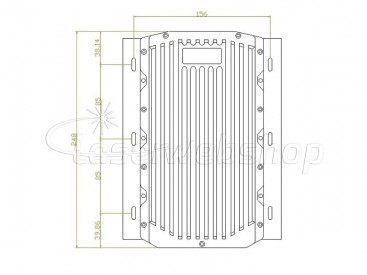

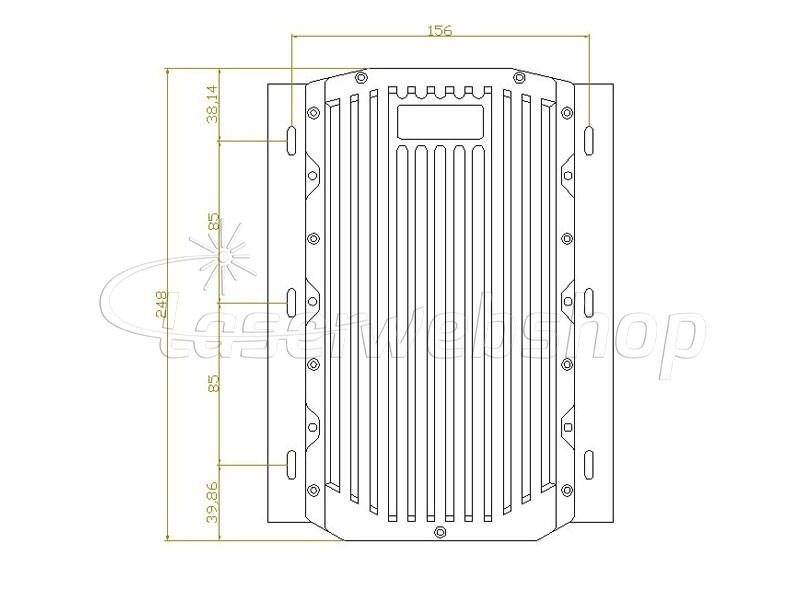

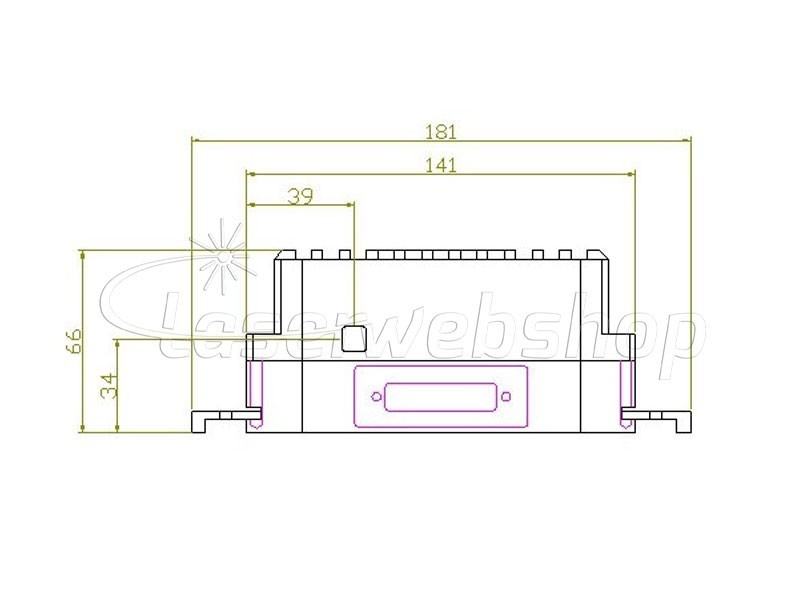

Module Dimensions (LxWxH) | 248x141x66mm |
Driver Dimensions (LxWxH) | 117x89x34mm |
