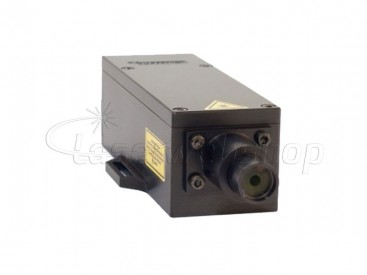

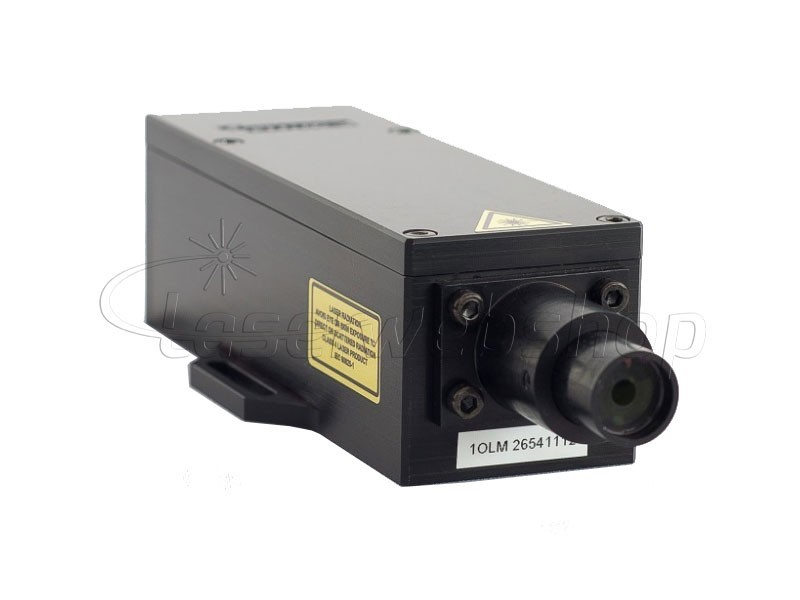

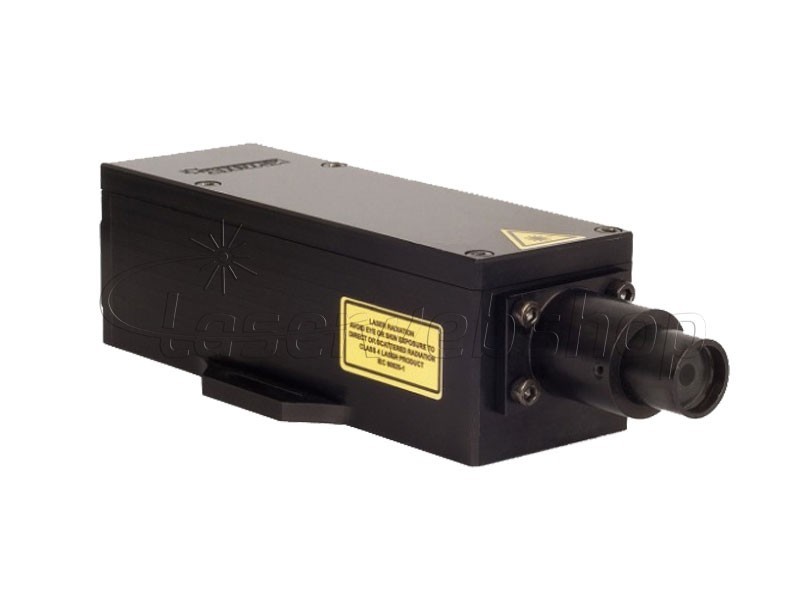

180mW Orange 607nm
BDPSS laser module with a wavelength of 607nm and an output power of 180mW.
Specifications
| Laser Output Power | 180mW |
| Wavelength | 607nm |
| Wavelength Torlerance | +/-1nm |
| Beam Diameter (1/e^2) | 3.2mm |
| Beam Divergence (Half Angle) | 0.16mrad |
| Linear Polarization | Yes |
| M^2 | +/-1.1 |
| Modulation Frequency | Contact |
| Peak Power Consumption | 2.5A (24V) |
| Input Voltage | 24V |
| Module Dimensions (LxWxH) | 120x59x40mm |
| Driver Dimensions (LxWxH) | 117x89x34mm |
